TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below. The unit has scuffs and scratches on the exterior. They do not affect the functionality of the unit.
COMPONENTS INCLUDED IN THIS sale:

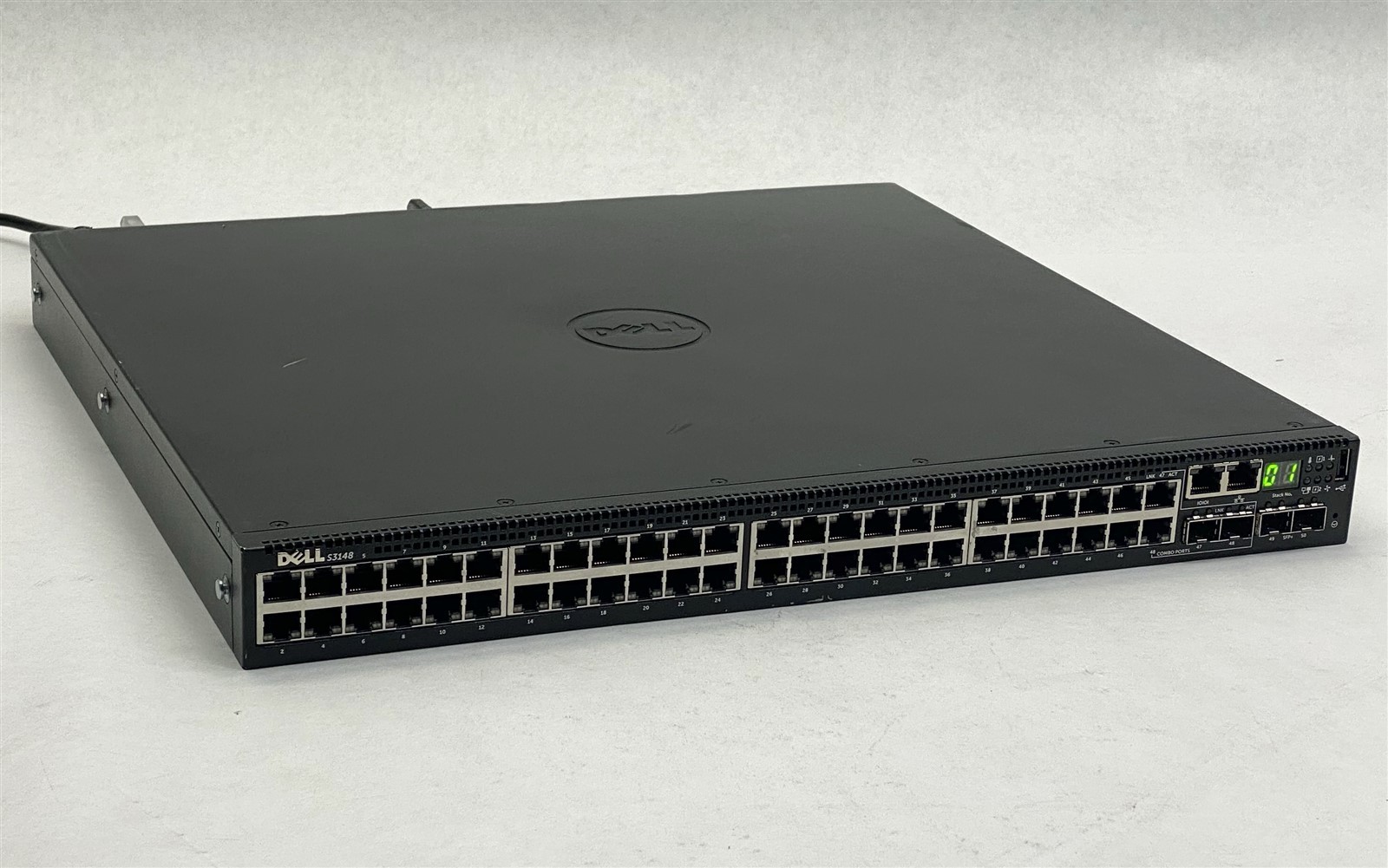

• (1) - DELL EMC POWERSWITCH S3148 48-PORT GIGABIT ETHERNET MANAGED NETWORK SWITCH
• (1) - POWER SUPPLY
• (1) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:
When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:
The following is the Console Log from this item:
U-Boot SPL 2012.10(Dell) (Nov 09 2015 - 00:29:48)
Boot strap=00000a54 board_type=00000002
Uboot is running in (Mt Augusta)
Bench screening test : PASSED
Device (dc14) IProc Revision 0 SKU ID = 0x0
DDR type: DDR3
MEMC 0 DDR speed = 800MHz
Programming controller register
Memory: 2G DDR
Configuring the Row/Colum/Bank difference in DDR controller ..
2G DDR config : DONE
ddr_init2: Calling soc_ddr40_shmoo_ctl
Validate Shmoo parameters stored in flash ..... OK
Press Ctrl-C to run Shmoo ..... skipped
Restoring Shmoo parameters from flash ..... done
Running simple memory test ..... OK
DDR Tune Completed
cs 0 dev_id word 0 2c380026
Micron MT29F8G08ABABA, blocks per lun: 800 lun count: 1
dumping inand[cs=0] addr[64100008]
ONFI info: device 1024MB, page 4096B, oobsize 224B, block 512KB,
col-addr 2, row-addr 3, 8-bit
Found strap type 0x2 strap page 0x2
REG_ACC_CONTROL c1040010 spare_area_bytes 10 ecc_level 4 eccbytes 7 steps 8
REG_CONFIG 48252300
512 KiB blocks, 4 KiB pages, 16B OOB, 8-bit
NAND: user oob per page: 1678778568 bytes (8 steps)
NAND: chipsize 1024 MiB
Loading Stage 2 Boot Image A:
Image Name: U-Boot 2012.10(Dell) for bcm9563
Image Type: ARM U-Boot Firmware (uncompressed)
Data Size: 629632 Bytes
Load Address: 80000000
Entry Point: 80000000
U-Boot 2012.10(Dell) (Nov 09 2015 - 00:29:48)
Boot strap=00000a54 board_type=00000002
Uboot is running in (Mt Augusta)
DRAM: 2 GiB
WARNING: Caches not enabled
I2C :Ready
cpld: val=00
NAND: cs 0 dev_id word 0 2c380026
Micron MT29F8G08ABABA, blocks per lun: 800 lun count: 1
dumping inand[cs=0] addr[DFE80008]
ONFI info: device 1024MB, page 4096B, oobsize 224B, block 512KB,
col-addr 2, row-addr 3, 8-bit
Found strap type 0x2 strap page 0x2
REG_ACC_CONTROL c1040010 spare_area_bytes 10 ecc_level 4 eccbytes 7 steps 8
REG_CONFIG 48252300
512 KiB blocks, 4 KiB pages, 16B OOB, 8-bit
NAND: user oob per page: 3757153230 bytes (8 steps)
NAND: chipsize 1024 MiB
In: serial
Out: serial
Err: serial
arm_clk=1000MHz, axi_clk=499MHz, apb_clk=124MHz, arm_periph_clk=500MHz
Net: Registering eth
et0: phyaddr(0x1) id2(0xf) bcmiproc_eth-0
Hit Esc key to interrupt autoboot: 0
Booting PRIMARY configuration...
boot device : flash
file name : systema (FTOS system://A Partition)
Erasing Nand...
Erasing at 0x100000 -- 100% complete.
Writing to Nand... done
Booting FTOS image
off 0x2700000 addr 0x6fffff10 siz 44e900
## Booting kernel from Legacy Image at 70000000 ...
Image Name: netbsd
Created: 1970-01-01 0:00:00 UTC
Image Type: ARM NetBSD Kernel Image (gzip compressed)
Data Size: 4515776 Bytes
Load Address: 00100000
Entry Point: 00100000
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
## Transferring control to NetBSD stage-2 loader (at address 00100000) arg = 0xdfe7ffe0, 0, 0xdff8d36c, 0xdff8d36c
NetBSD/evbarm (bcm53xx) booting ...
initarm: Configuring system, CLIDR=1110000003 CTR=0x83338003 PMUSERSR=0
[ Kernel symbol table missing! ]
Loaded initial symtab at 0x806244ac, strtab at 0x80666cdc, # entries 17010
Copyright (c) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005,
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017,
2018 The NetBSD Foundation, Inc. All rights reserved.
Copyright (c) 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.
Dell Networking OS Release 9.14(2.10)
NetBSD 7.1.2 (S3100) #1: Fri Jun 25 11:54:04 PDT 2021
total memory = 2048 MB
avail memory = 1979 MB
sysctl_createv: sysctl_create(machine_arch) returned (root)
cpu0 at mainbus0 core 0: 1000 MHz Cortex-A9 r3p0 (Cortex V7A core)
cpu0: DC enabled IC enabled WB disabled EABT branch prediction enabled
cpu0: 32KB/32B 4-way L1 VIPT Instruction cache
cpu0: 32KB/32B 4-way write-back-locking-C L1 PIPT Data cache
cpu0: 512KB/32B 16-way write-back-locking-D L2 PIPT Unified cache
iprockbde0 at mainbus0 IPROC a iProc BCM switch device BA=0x48000000 IRQ=194 device=0xb340
BCM Bus Space mem Handle = 0x80542c80
_dma_pbase = VBASE:0xe7000000 DMA PBASE:66000000
armperiph0 at mainbus0
arml2cc0 at armperiph0: ARM PL310 r3p2 L2 Cache Controller (disabled)
arml2cc0: cache enabled
armgic0 at armperiph0: Generic Interrupt Controller, 256 sources (245 valid)
armgic0: 32 Priorities, 224 SPIs, 5 PPIs, 16 SGIs
a9tmr0 at armperiph0: A9 Global 64-bit Timer (500 MHz)
a9tmr0: interrupting on irq 27
bcmcca0 at mainbus0: BCM56340 (Rev A0)
bcmcca0: interrupting at irq 123
com0 at bcmcca0 channel 0: ns16550a, working fifo
com0: console
com1 at bcmcca0 channel 1: ns16550a, working fifo
bcmgpio0 at bcmcca0 gpio addr:0xff000060
gpio0 at bcmgpio0: 32 pins
bcmccb0 at mainbus0
bcmmdio0 at bcmccb0: MDIO bus @ 2 MHz
bcmrng0 at bcmccb0: Random Number Generator (512 bit FIFO)
bcmi2c0 at bcmccb0 port 1
iic0 at bcmi2c0: I2C bus
i2cctl0 at iic0
tmp75x0 at iic0 addr 0x49
tmp75x0: unable to register with sysmon
tmp75x1 at iic0 addr 0x4a
tmp75x1: unable to register with sysmon
stmrtc0 at iic0 addr 0x68
cpldx0 at iic0 addr 0x28CPLD attched at 28
sfpx0 at iic0 addr 0x50: SFP eeprom at addr 0x50
sfpx1 at iic0 addr 0x51: SFP eeprom at addr 0x51
bcmi2c1 at bcmccb0 port 2
iic1 at bcmi2c1: I2C bus
i2cctl1 at iic1
s2eeprom0 at iic1 addr 0x50: AT24Cxx compatible EEPROM
s2eeprom1 at iic1 addr 0x51: AT24Cxx compatible EEPROM
s2eeprom2 at iic1 addr 0x52: AT24Cxx compatible EEPROM
s2eeprom3 at iic1 addr 0x52: AT24Cxx compatible EEPROM
ltc4215x0 at iic1 addr 0x40LTC4215 - HOTSWAP CONTROLLER (MB) 0
psufanctlx0 at iic1 addr 0x58 - PSU FAN controller (MB) 0
psufanctlx1 at iic1 addr 0x58 - PSU FAN controller (MB) 1
max6639x0 at iic1 addr 0x2cFan controller attached at 0x2c
WRITE SUCCESS[r-0x4]:0x10 - 0
bcmeth0 at bcmccb0 port 0: Gigabit Ethernet Controller
bcmeth0: interrupting on irq 234
bcmeth0: Ethernet address 00:01:02:03:04:05
brgphy0 at bcmeth0 phy 1: BCM54616S 1000BASE-T media interface, rev. 2
brgphy0: 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-FD
X, auto
bcmeth1 at bcmccb0 port 1: Gigabit Ethernet Controller
bcmeth1: interrupting on irq 235
bcmeth1: Ethernet address 00:01:02:03:04:07
OUI 0x001be9 model 0x0011 rev 2 at bcmeth1 phy 1 not configured
bcmnand0 at bcmccb0: nand revision 0x80000601
onfinand0 at bcmnand0: ONFI NAND crc 0x510f integrity 0X510F
onfinand0: vendor: MICRON, model: MT29F8G08ABABAWP
onfinand0: page size: 4096 bytes, spare size: 224 bytes, block size: 524288 byte
s
onfinand0: LUN size: 2048 blocks, LUNs: 1, total storage size: 1024 MB
1G nand is present
onfinand0: column cycles: 2, row cycles: 3, width: x8
Found BBT table for chip
flash0 at onfinand0: NAND flash partition size 1024 KB, offset 0, read only
flash0: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash1 at onfinand0: NAND flash partition size 512 KB, offset 0x100000
flash1: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash2 at onfinand0: NAND flash partition size 256 KB, offset 0x180000, read onl
y
flash2: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash3 at onfinand0: NAND flash partition size 256 KB, offset 0x1c0000, read onl
y
flash3: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash4 at onfinand0: NAND flash partition size 512 KB, offset 0x200000, read onl
y
flash4: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash7 at onfinand0: NAND flash partition size 28 MB, offset 0x400000, read only
flash7: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash8 at onfinand0: NAND flash partition size 1024 KB, offset 0x2000000
flash8: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash9 at onfinand0: NAND flash partition size 1024 KB, offset 0x2100000
flash9: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash10 at onfinand0: NAND flash partition size 1024 KB, offset 0x2200000
flash10: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash11 at onfinand0: NAND flash partition size 2048 KB, offset 0x2300000
flash11: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash12 at onfinand0: NAND flash partition size 2048 KB, offset 0x2500000, read
only
flash12: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash13 at onfinand0: NAND flash partition size 128 MB, offset 0x2700000
flash13: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash14 at onfinand0: NAND flash partition size 128 MB, offset 0xa700000
flash14: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
flash15 at onfinand0: NAND flash partition size 728 MB, offset 0x12700000
flash15: erase size 512 KB, page size 4096 bytes, write size 4096 bytes
ld0 at flash15 child attached
bcmusb0 at bcmccb0
ohci0 at bcmusb0: OHCI USB controller
ohci0: OHCI version 1.0, legacy support
usb0 at ohci0: USB revision 1.0
ehci0 at bcmusb0: ECHI USB controller
ehci0: companion controller, 2 ports each: ohci0
usb1 at ehci0: USB revision 2.0
bcmusb0: interrupting on irq 117
ld0: 728 MB, 740 cyl, 32 head, 63 sec, 512 bytes/sect x 1492991 sectors
ld0: sector size : 512, number of sectors : 1492991uhub0 at usb0: Broadcom OHCI
root hub, class 9/0, rev 1.00/1.00, addr 1
uhub1 at usb1: Broadcom EHCI root hub, class 9/0, rev 2.00/1.00, addr 1
netdisk:netdisk attach invoked..
f10mc pseudo-device
platform pseudo-device
WRITE SUCCESS[r-0x4]:0x10 - 0x10
max6639: smbus timeout enabled
crshntfy pseudo-device
s3100_diag as pseudo-device getting attached
Broadcom Device Enumerator (nbsd_ubde)
0: Interrupt mode CMICm
connect secondary isr
KNET: Pseudo device attach
bcnp pseudo-device
bcmw pseudo-device
bcmwstk pseudo-device
f10logger as pseudo-device getting attached
bfd pseudo-device
boot device:
root on md0a dumps on netdisk0a
WARNING: clock gained 1131 days
route: writing to routing socket: File of ReleaseImage is 44567904 Bytes
RELEASE IMAGE HEADER DATA Image SW Image Count : 4
Release Image Major-Version : 9
Release Image Minor Version : 14
Release Image Maint Version : 2
Release Image Patch-Version : 10
Release Image Header Size : 140
Release Image Data Size : 44567764
Release Image Platform Type : 27
Release Image Product Name : FTOS-S3100
Release Image Checksum Value : 0xb5eb751a
Release Image Header Checksum: 0xf08ad88
Release Image Create Year : 2021
Release Image Create Month : 6
Release Image Create Date : 25
Release Image Create Hour : 12
Release Image Create Minute : 5
Release Image Create Second : 0
SOFTWARE IMAGE HEADER DATA Image[1] Major Version : 9
Software Image[1] Minor Version : 14
Software Image[1] Maint Version : 2
Software Image[1] Patch Version : 10
Software Image[1] Image type : 2
Software Image[1] Header Size : 100
Software Image[1] Img Data Size : 4515856
Software Image[1] Img Orig Size : 4515856
Software Image[1] Family Code : cp
Software Image[1] Img file Name : Image[1] Hdr Checksum : 0xd8da8df0
Software Image[1] Data Checksum : 0xc026f9d9
SOFTWARE IMAGE HEADER DATA Image[2] Major Version : 9
Software Image[2] Minor Version : 14
Software Image[2] Maint Version : 2
Software Image[2] Patch Version : 10
Software Image[2] Image type : 2
Software Image[2] Header Size : 100
Software Image[2] Img Data Size : 23649036
Software Image[2] Img Orig Size : 119244816
Software Image[2] Family Code : nbsdpcprplp
Software Image[2] Img file Name : Image[2] Hdr Checksum : 0x5ece9159
Software Image[2] Data Checksum : 0xdc9c2c9d
SOFTWARE IMAGE HEADER DATA Image[3] Major Version : 9
Software Image[3] Minor Version : 14
Software Image[3] Maint Version : 2
Software Image[3] Patch Version : 10
Software Image[3] Image type : 2
Software Image[3] Header Size : 100
Software Image[3] Img Data Size : 15771588
Software Image[3] Img Orig Size : 63989776
Software Image[3] Family Code : nbsdlibcp
Software Image[3] Img file Name : Image[3] Hdr Checksum : 0x33519af8
Software Image[3] Data Checksum : 0x14aa073e
SOFTWARE IMAGE HEADER DATA Image[4] Major Version : 5
Software Image[4] Minor Version : 2
Software Image[4] Maint Version : 1
Software Image[4] Patch Version : 10
Software Image[4] Image type : 1
Software Image[4] Header Size : 100
Software Image[4] Img Data Size : 630884
Software Image[4] Img Orig Size : 630884
Software Image[4] Family Code : cp
Software Image[4] Img file Name : CPRPLP-RPM-BT-5.2.1.10.bin
Software Image[4] Hdr Checksum : 0xdb69f9d
Software Image[4] Data Checksum : 0x80374659
0
Partitioning 1G flash parition flash15...Pass!
loadvnode(): pcbmap returned 22
Starting Dell EMC Networking OS
STACK: master on e4:f0:4:9:7b:9 (1 cpu, 1 unit)
STACK: attach 1 unit on 1 cpu
..Jul 31 04:23:50 %S3148:1 %POLLMGR-2-USER_FLASH_STATE: USB flash disk missing i
n 'usbflash:'
.Jul 31 04:23:50 %STKUNIT1-M:CP %RAM-6-ELECTION_ROLE: Stack-unit 1 is transition
ing to Management Stack-unit.
.......Jul 31 04:23:57 %STKUNIT1-M:CP %CRYPTO-5-FIPS_SELF_TEST_PASSED: [sysd] FI
PS crypto module self-test passed
Jul 31 04:23:59 %STKUNIT1-M:CP %CHMGR-5-STACKUNIT_DETECTED: stack-unit 1 present
Jul 31 04:24:01 %STKUNIT1-M:CP %CHMGR-5-LPM_CONFIG: Applying the default IPv6 LP
M partition config
Jul 31 04:24:03 %STKUNIT1-M:CP %CHMGR-5-CHECKIN: Checkin from stack-unit 1 (type
S3148, 54 ports)
..Jul 31 04:24:05 %STKUNIT1-M:CP %CHMGR-5-STACKUNIT_UP: stack-unit 1 is up
loadvnode(): pcbmap returned 22
Jul 31 04:24:08 %S3148:1 %KERN-2-INT: loadvnode(): pcbmap returned 22
Jul 31 04:24:30 %S3148:1 %CHMGR-5-FAN_SPEED_CHANGE: Fan speed changed to 40 % of
the full speed
Jul 31 04:24:31 %STKUNIT1-M:CP %RAM-5-STACKUNIT_STATE: Stack-unit 1 is in Active
State.
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-2-SYSTEM_READY: System ready
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-4-TEMP_STATUS_CHANGE: Unit 1 temperature
state changed to 0 (Current temperature 31C).
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-5-FANTRAY_INSERTED: Fan tray 1 of Unit 1 i
s inserted
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-5-PSU_FAN_STATUS: Fan 1 in PSU 2 of Unit 1
is up
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-5-PEM_INSERTED: Power entry module 2 of un
it 1 is inserted
Jul 31 04:24:38 %STKUNIT1-M:CP %CHMGR-0-PS_UP: Power supply 2 in unit 1 is up
Jul 31 04:24:51 %STKUNIT1-M:CP %CLI-6-SECURE_CLI_NOT_ENABLED: CLI security mode
not enabled
Jul 31 04:24:53 %STKUNIT1-M:CP %SEC-5-LOGIN_SUCCESS: Login successful on The SupportAssist EULA acceptance option has not been selected. SupportAssist
can be enabled once the SupportAssist EULA has been accepted. Use the:
'support-assist activate' command to accept EULA and enable SupportAssist.
DellEMC#Jul 31 04:26:27 %STKUNIT1-M:CP %SEC-4-ENABLE_PASSW_NOT_CONFIGURED: Enabl
e password is required for authentication but not configured (by default from co
nsole)
Jul 31 04:26:27 %STKUNIT1-M:CP %SEC-5-AUTHENTICATION_ENABLE_SUCCESS: Enable auth
entication success on console
DellEMC# Please Click Here to Visit Our StoreSearchBy36 - 262647 | Loc: G52 | L: Rob | T: Rob | PM: Nick | QTY: 0 | Plan: S1- Q4 5 pounds or more | 20.00"x20.00"x5.00" 20.00lbs | Start: $0.00 | BIN: $99.98 | | 2024-07-31 | | Computers/Tablets & Networking::Enterprise Networking, Servers::Switches & Hubs::Network Switches
