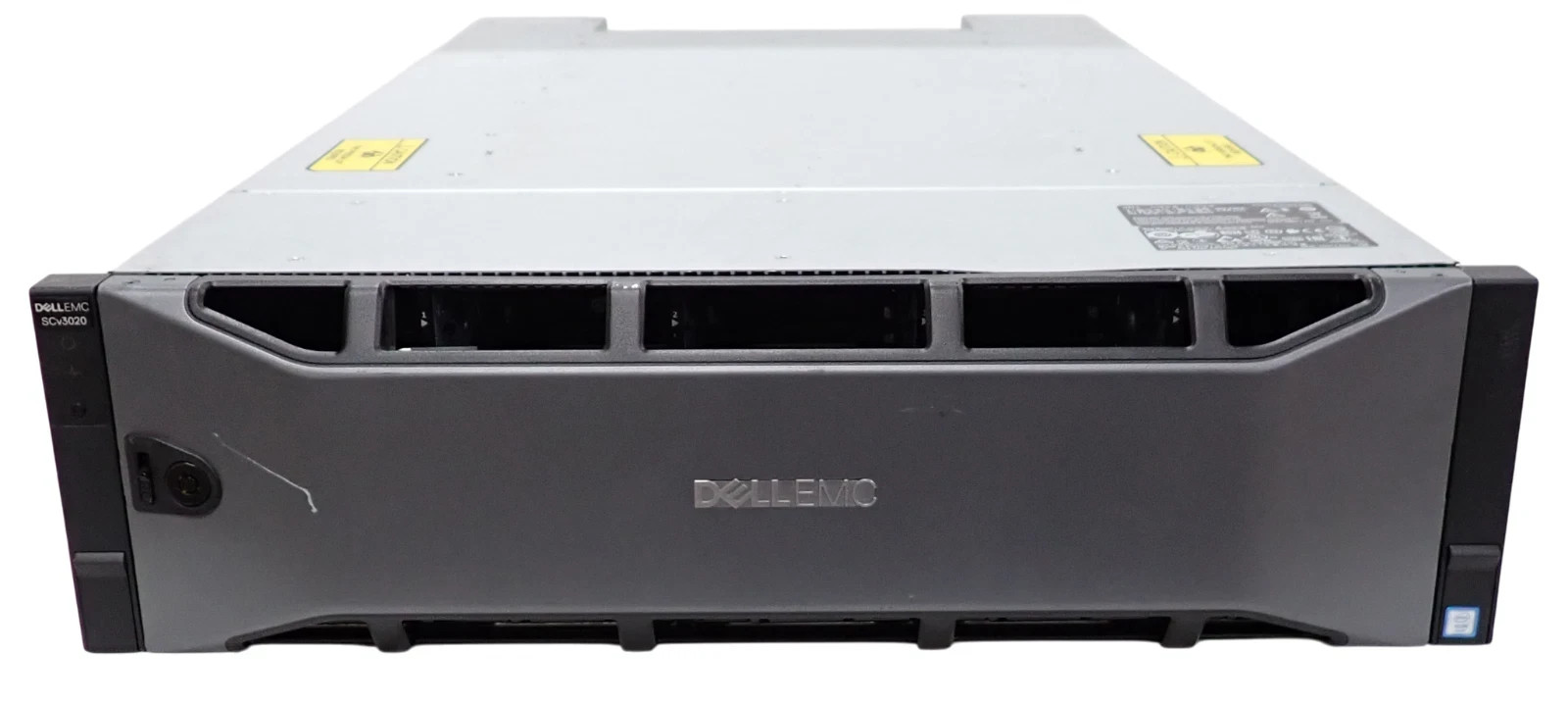

Dell Compellent SCv3020 30x 2.5" SAS Bay 3U Storage Array 2x iSCSI Controller

In Good Condition, Full Working Order
Tested
2 Year Warranty

Includes Core Storage Centre & Storage Protection Bundle Licenses

Includes:

• 1 x Dell EMC SCv3020 Storage Array
• 2 x10G-iSCSI-4 4-Port10Gb/siSCSI Type-F Redundant Controllers each with:
• 4 x 10Gb iSCSI Ports & 2 x 12Gb SAS Expansion Ports Per Controller
• 1 x Management Port
• x30 way backplane for up to 30 x 2.5" SAS or SAS SSD hard drives
• Dual Redundant 1485W PSUs - 2C7NK
• Bezel Included

Specification:

Chassis Overview:

• Chassis format All-in-one (dual controllers, internal drive bays, networking) with expansion options
• Rack size: 3U
• Controllers: 2 hot-swappable per chassis (dual active)
• Processors: Intel Xeon Processor E5-2603v4, 1.7GHz, 6 cores
• Internal storage capacity: 30 x 2.5” drive bays
• System memory: 32GB per SCv3xxx array (16GB per controller)
• Operating system: Dell Storage Center OS (SCOS) 7.2 or greater

Expansion Capacity

• Supported expansion enclosures: 30 x 2.5” drive bays (12 Gb SAS)
• Maximum drive count: 222 (internal plus external expansion), more in federated systems
• Max raw capacity: 1PB per array (SSD or HDD), more in federated systems
• Max raw capacity (NAS): 1 PB7 per array with optional Dell EMC NX3000 Series Windows NAS appliance
• Storage media:
• SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system.
• SSD: write-intensive and read-intensive drives
• HDD: 15K, 10K, 7.2K RPM

Network and Expansion I/O

• Front-end-network protocols: FC, iSCSI, SAS (supports simultaneous multiprotocol) Up to 16 FE ports per array, more in federated systems
• Max 16Gb FC ports: 8 per array (SFP+)
• Max 10Gb/1Gb iSCSI ports: Up to 8 SFP+ or BaseT ports per array
• Max 12Gb SAS ports: Up to 8 12Gb SAS ports
• Management ports: 2 per array (1Gb BASE-T)
• Back-end expansion protocols: 12Gb SAS
• Back-end expansion ports: 4 12Gb SAS (wide-Port) per array, Up to 16 expansion enclosures per array, more in federated configurations: All-flash, hybrid or HDD arrays
• Storage format: Native block (SAN), file (NAS) from same pool with optional NX3000 Series Windows NAS appliance.
