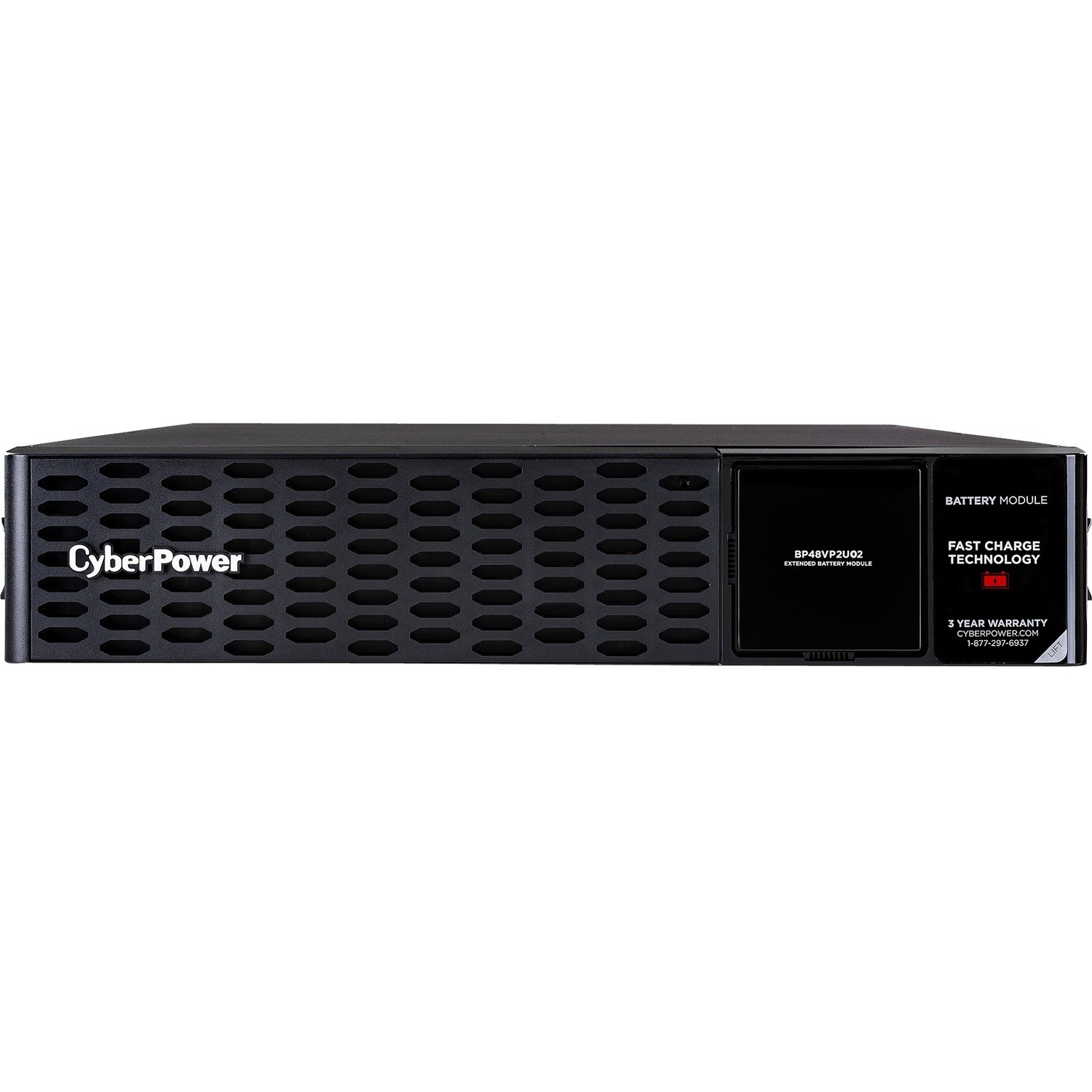

CyberPower UPS Systems BP48VP2U02 Extended Battery Modules (BP48VP2U02) CyberPower UPS Systems BP48VP2U02 Extended Battery Modules (BP48VP2U02)Certifications & Standards: CE RCM UL1778 cUL FCC Class B VCCI
Additional Information: Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 8 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.03 Weight (lb) : 66.2 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 62.23 (cm) Shipping - Dimensions (WxHxD, in) : 22.0 x 10.5 x 24.5 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 622.3 (mm) Shipping - Weight (kg) : 36.47 Shipping - Weight (lb) : 80.4 Circuit Breaker : 70 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC - 240 VAC Nominal Input Voltage : 120 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. Environmental : RoHS Compliant Safety : CE, RCM , UL1778, cUL, FCC Class B, VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
Environmentally Friendly: Yes
Compatibility: CyberPower UPS Models: PR1000LCDRTXL2UA PR1500LCDRTXL2U PR1500RTXL2U PR1500RTXL2UC PR1500RTXL2UCN PR2000RTXL2U PR2000RTXL2UC PR2000RTXL2UCN PR2200LCDRTXL2U PR2200RTXL2U PR2200RTXL2UC PR2200RTXL2UCN PR3000LCDRTXL2U PR3000RTXL2U PR3000RTXL2UC PR3000RTXL2UCN OR1500LCDRTXL2U OR2200LCDRTXL2U
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
CyberPower BP48VP2U02 external battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.
FEATURES
- Rack/ Tower Convertible Configurations
- Sealed Lead-acid Batteries
- Built-in charger for External Battery Module(EBM)
- Hot-swappable Batteries
- Daisy-chain Expansion
- Metal Housing
FEATURE FOCUS
Battery Hot-swap
With battery hot-swap solution, the batteries modules can provide service continuity in all situations while keeping connected mission-critical equipment powered and fully operational. Achieving ultimate peace of mind that high availability and maintenance flexibility will never be compromised during battery replacement or other upgrades
SpecificationPhysical CharacteristicsForm FactorRack/TowerWeight (Approximate)66.20 lbProduct ColorBlackHeight3.4"Color FamilyBlackWidth17.1"Rack Height2UDepth19.7"WarrantyLimited Warranty3 YearGeneral InformationBrand NameCyberPowerMarketing Information The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02. Product TypeExternal Battery PackProduct NameBP48VP2U02 Extended Battery ModulesManufacturerCyberPower Systems, IncManufacturer Part NumberBP48VP2U02Product ModelBP48VP2U02Product SeriesExtended Battery ModulesPackaged Quantity8TitleProduct TitleCyberPower BP48VP2U02 Extended Battery ModulesTechnical InformationMaximum Battery Recharge Time6 HourBattery Capacity9000 mAhBattery ChemistryLead AcidHot SwappableYesInput Voltage120 VBattery Size12VOutput Voltage48 V DCBattery CharacteristicsUser ReplaceableEnvironmental ConditionsMaximum Operating Temperature104°F (40°C)Minimum Operating Temperature32°F (0°C) Shipping
