Creality Ender 3 S1 Pro linear rail upgrade kit for X axis, Y axis & Z axis. Save money and get your own rails here on without me marking it up

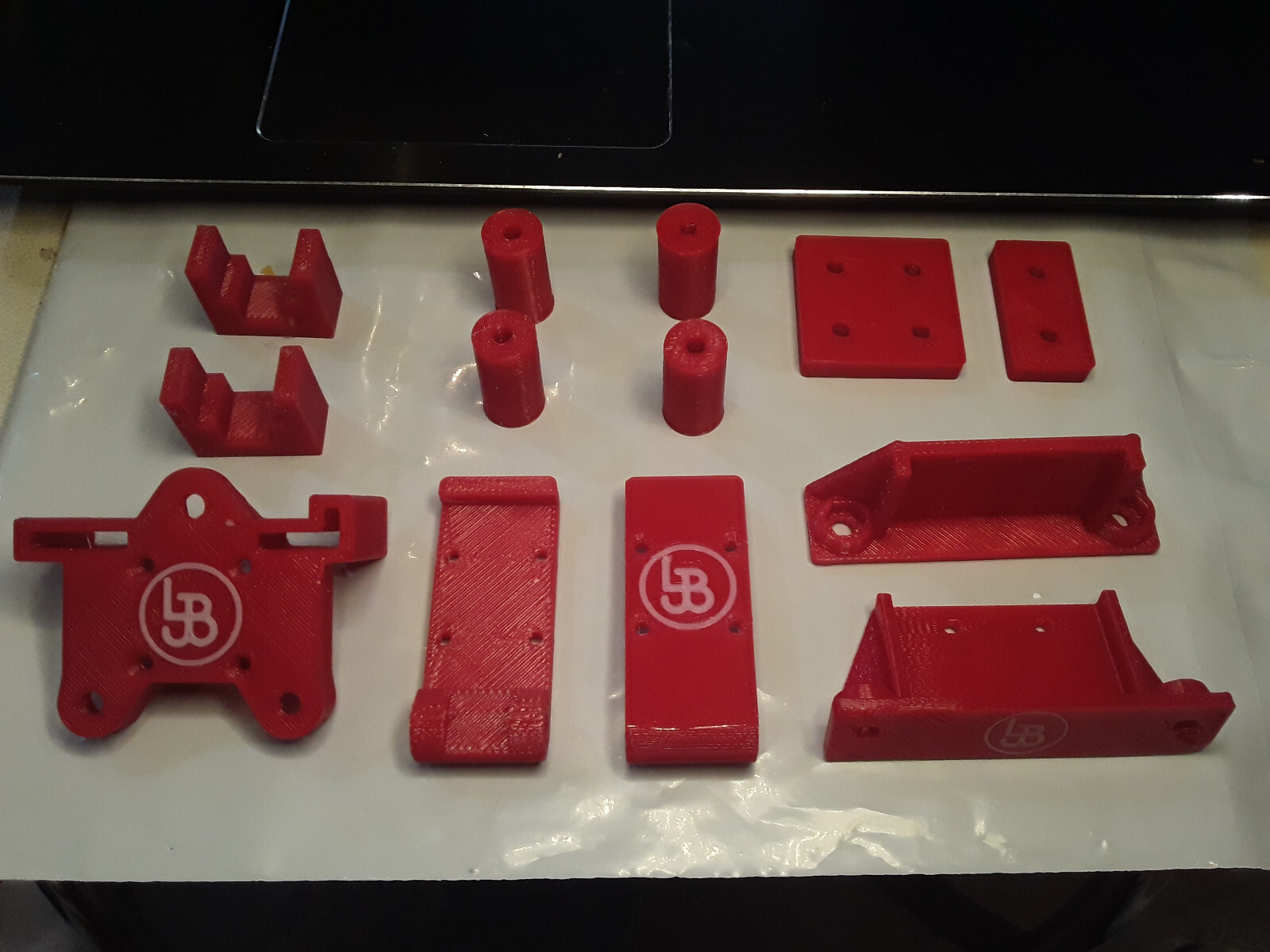

All the PETG printed parts needed for your upgrade. All parts are designed to use existing metal plates. These parts bolt in the place of the where the wheels once were and reuse the same hardware and extruder plate. No drilling, cutting or measuring required. All parts are solid 100% infill (except the 2 disposable rail centering tools)What you get...
1 - X carriage mount2 - Y axis bed mounts1 - Y axis 40 x 40mm spacer to raise the Y rail 7mm (not used with the 40x40 extrusion)
1 - Y axis 40 x 20mm spacer to raise the Y rail 7mm (not used with the 40x40 extrusion)2 - Z axis mounts4 - Z axis spacers to go in place of the removed wheels2 - rail centering tools to center the rail on the extrusion1 - Detailed instructions with pictures(pictures of screws or T nuts are for example only)
What YOU need to get...
5 - 300mm MGN12H linear rails1 - 20x20x350mm aluminum extrusion to replace the X axis (only if extrusion is solid on 2 sides)
OR a 3mm tap and drill bit set. I have easy instructions on how to do that as well without a drill press or even having to mark the bar
Mounting hardware for the rails and block: 50 - M3 x 8mm countersunk screws
50 - M3 T nutsAll of my parts are designed to mount to the blocks using the same screws that are used to mount the rail to the extrusion. M3 x 8mm countersunk screws
