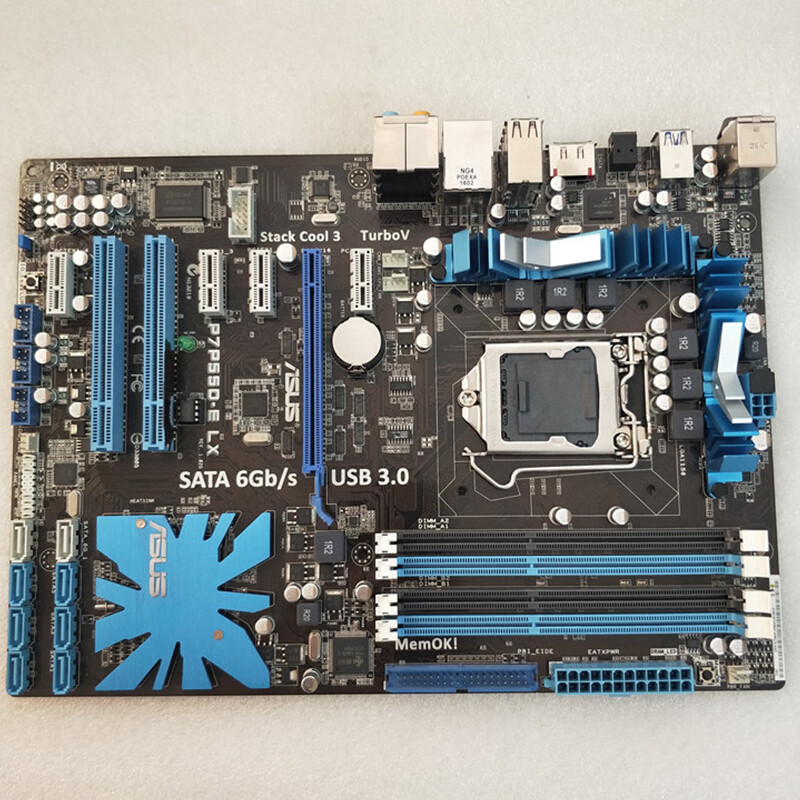

PU

Intel® Socket 1156 Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® Turbo Boost Technology

Chipset

Intel® P55

Memory

4 x DIMM, Max. 16GB, DDR3 2200(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).

Expansion Slots

1 x PCIe 2.0 x16
4 x PCIe 2.0 x1 (2.5 GT/s, gray)
2 x PCI

Storage

Intel® P55 chipset :
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
JMicron® JMB361 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
1 x eSATA 3Gb/s port(s), red
Marvell® PCIe SATA 6Gb/s controller : *1
2 x SATA 6Gb/s port(s), gray

LAN

Realtek® 8112L, 1 x Gigabit LAN Controller(s), featuring AI NET2
Support Teaming Technology

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel

USB Ports

NEC® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® P55 chipset :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Xtreme Design :
ASUS EPU :
- EPU
CPU Level Up
Turbo Key
TurboV
ASUS IO Level UP for Ultra Performance - True USB 3.0 or True SATA 6Gb/s Support
ASUS Exclusive Features :
- MemOK!
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- Stack Cool 3
- ASUS Fan Xpert
ASUS Crystal Sound :
- ASUS Noise Filter
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (DRAM)
- ASUS Q-DIMM

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x IO Level Up button(s)

BIOS

16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor

ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

Note

*1: These SATA ports are for data hard drives only. ATAPI devices are not supported.

Packet Included:
1 x Motherboard
1 x I/O Shield
2 x generic SATA II cables
