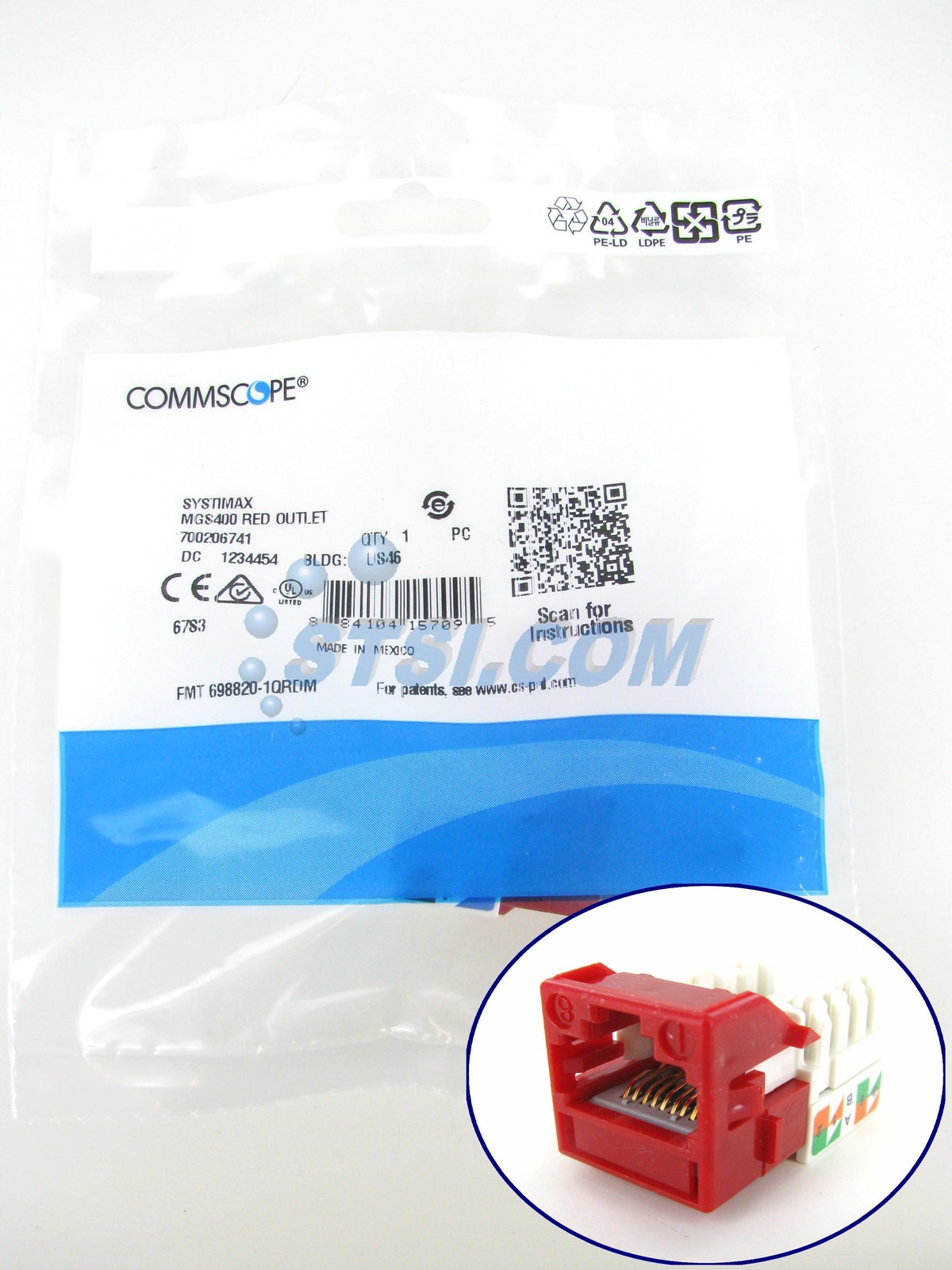

Commscope Systimax MGS400-317 GigaSpeed Cat6 M-Series Modular Jack, Red, Part # GigaSPEED XL® M-Series Modular Jack, RJ45, Cat6 Unshielded, Red
Features:

• Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568-C.2 Category 6
• Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
• Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
• Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
• Universal design and label supports both T568 A & B wiring
• IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
• Can support network line speeds in excess of 1 Gb/s
• Low-profile rear protective strain relief cap, protects against contamination and secures the SYSTIMAX®
• Product Type Modular jack
• Product Brand GigaSPEED XL®
• Product Series MGS400
• ANSI/TIA Category 6
• Cable Type Unshielded
• Color Red
• Conductor Type Solid | Stranded
• Integrated Dust Cover Type None
• Termination Type IDC
• Wiring T568A | T568B
• Height 19.4 mm | 0.764 in
• Width 21.08 mm | 0.830 in
• Depth 30.2 mm | 1.189 in
• Compatible Conductor Gauge, solid 22 AWG | 24 AWG
• Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
