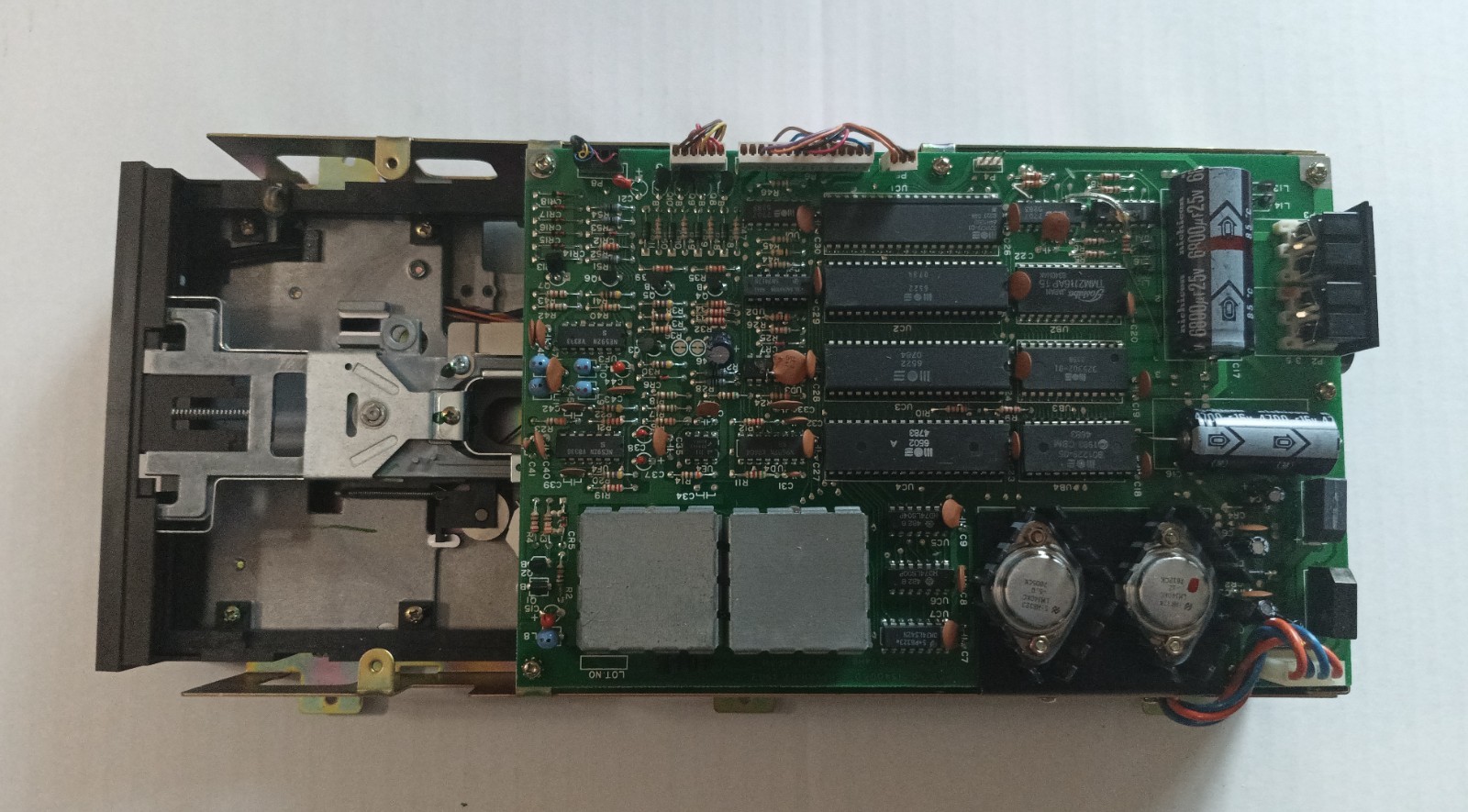

Commodore 1541 Floppy Disk Drive — ALPS Mechanism — Caseless
Condition: Used, working. Bench-tested. Sold as a tested-working vintage unit with no case, no power cable, no serial cable. See full description below.
What's included:
- Commodore 1541 floppy disk drive (ALPS mechanism)
What's not included:
- IEC C13 power cable
- Serial cable (Commodore IEC 6-pin DIN,)
- Commodore 1541 case
What we tested
- Power-up: Drive powers on cleanly. LED illuminates.
- Spindle motor: Spins up to spec RPM (within 1 RPM of the 300 RPM standard).
- Controller board: Responds to host commands.
- Head assembly: Steps through all 40 tracks on the built-in diagnostic test, reports data for each track, completes the test without errors.
- Disk controller logic: Passes the read controller self-check.
The drive was tested using the standard 1541 built-in diagnostic test (the same one Commodore service technicians used). Test results are visible in the listing video. We did not run a long-duration burn-in or read/write verification across multiple disks; we recommend buyers do their own extended testing.
About this drive
This 1541 uses the ALPS mechanism — the early "toaster" style with the push-down door and spring-eject. ALPS mechs are the most common of the three 1541 mechanism types (ALPS, Newtronics-Mitsumi, Chinon) and are generally considered the most reliable, though all three are still serviceable with parts available from the vintage Commodore community.
Known cosmetic / mechanical notes
- No case, no LED bezel, no feet (see photos).
- Mechanism shows light wear consistent with a 40+ year old drive.
- No visible damage to the analog board, transformer, or controller board.
- No power cable, no serial cable (see "What you'll need" above).
Shipping
USPS Ground Advantage with proper packaging. Insurance included. Tracking provided.
Returns
30 days, buyer pays return shipping. Standard for vintage electronics.
