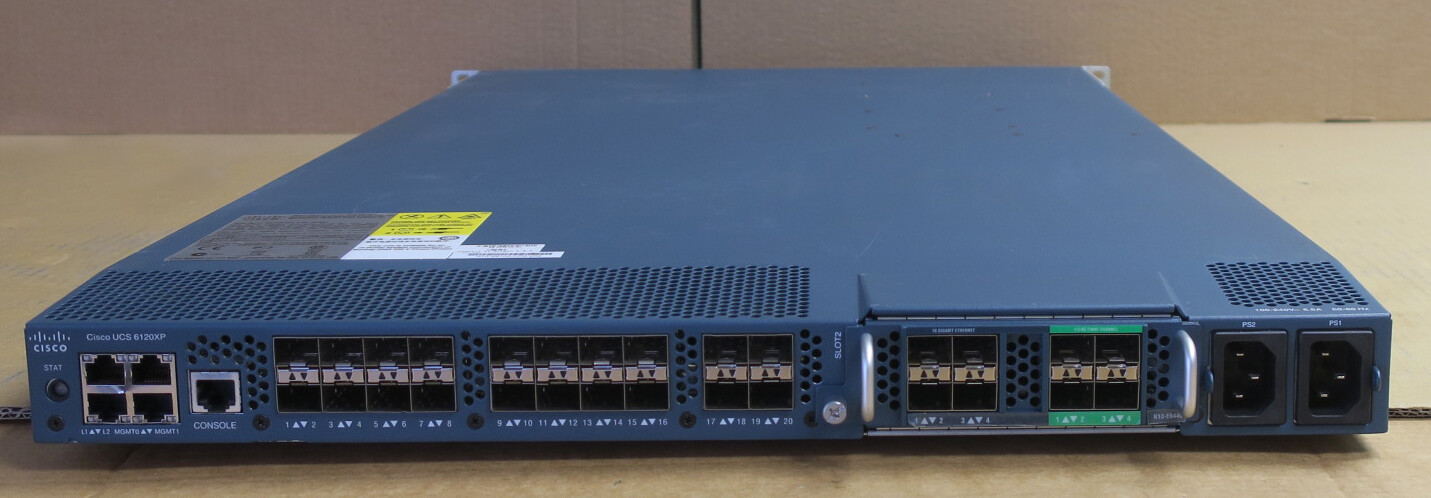

Cisco UCS 6120XP N10-S6100-UPG 20-Port Fabric Interconnect Switch + N10-E0440 Model: UCS 6120XPPID VID: N10-S6100-UPG In Good Condition, Full Working Order Included - 1 x Cisco UCS 6120XP N10-S6100-UPG 20 Port Fabric Interconnect Switch
- 1 x Cisco N10-E0440 4-Port 10GbE / 4Gb Fiber Channel Module
- 2 x N10-PAC1-550W Power Supply
- 2 x Cisco N10-FAN1 Fan fabric with FCoE: I/O consolidationThe Cisco UCS 6100 Series is built to consolidate LAN and SAN traffic onto a single unified fabric, saving the capital and operating expenses associated with multiple parallel networks, different types of adapter cards, switching infrastructure, and cabling within racks.
Optimization for virtualizationFor virtualized environments, the Cisco 6100 Series supports Cisco VN-Link architecture. Cisco VN-Link architecture allows the interconnects to provide policy-based virtual machine connectivity, mobility of network properties with the virtual machine, and a consistent operational model for both physical and virtual environments.
The Cisco UCS 6100 Series Fabric Interconnects are a core part of the Cisco Unified Computing System, providing both network connectivity and management capabilities for the system. The Cisco UCS 6100 Series offers line-rate, low-latency, lossless 10 Gigabit Ethernet and Fiber Channel over Ethernet (FCoE) functions.
The Cisco UCS 6100 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers and UCS 5100 Series Blade Server Chassis. All chassis, and therefore all blades, attached to the Cisco UCS 6100 Series Fabric Interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6100 Series provides both the LAN and SAN connectivity for all blades within its domain.
From a networking perspective, the Cisco UCS 6100 Series uses a cut-through architecture, supporting deterministic, low-latency, line-rate 10 Gigabit Ethernet on all ports, independent of packet size and enabled services. The product family supports Cisco low-latency, lossless 10 Gigabit Ethernet unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The fabric interconnect supports multiple traffic classes over a lossless Ethernet fabric from the blade through the interconnect. Significant TCO savings come from an FCoE-optimized server design in which network interface cards (NICs), host bus adapters (HBAs), cables, and switches can be consolidated.
Key Features- Ethernet module that provides 6 ports of 10 Gigabit Ethernet using the SFP+ interface
- Fiber Channel plus Ethernet module that provides 4 ports of 10 Gigabit Ethernet using the SFP+ interface; and 4 ports of 1/2/4-Gbps native Fiber Channel connectivity using the SFP interface
- Fiber Channel module that provides 8 ports of 1/2/4-Gbps native Fiber Channel using the SFP interface for transparent connectivity with existing Fiber Channel networks
- Fiber Channel module that provides 6 ports of 1/2/4/8-Gbps native Fiber Channel using the SFP or SFP+1 interface for transparent connectivity with existing Fiber Channel TypeNetwork management deviceHeight (Rack Units)1UInstalled Modules Qty (Max)0 (1)Width17.3 inDepth30 inHeight1.7 inNetworkingForm FactorRack-mountablePorts Qty20Connectivity TechnologyWiredData Link Protocol10 Gigabit EthernetRemote Management ProtocolRMONPerformanceThroughput: 520 GbpsFeaturesTrunking, VLAN support, IGMP snooping, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames supportCompliant StandardsIEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1sExpansion / ConnectivityExpansion Slots20 (total) / 20 (free) x | 1 (total) / 0 (free) x expansion slotInterfaces2 x 1000Base-T | 2 x 1000Base-T (management) - RJ-45 | 1 x management - RJ-45MiscellaneousCompliant StandardsCISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47, EN 300 386PowerPower DeviceInternal power supply - hot-plugInstalled Qty2Max Supported Qty2Environmental ParametersMin Operating Temperature32 °FMax Operating Temperature104 °FHumidity Range Operating5 - 95%
Boot Log:
UCS-A# showversion System version:2.2(8g) UCS-A# showsystem Systems: NameMode System IP AddressSystem IPv6 Address ---------- ----------- class="MsoNoSpacing" style=""> UCSStand Alone 10.10.10.10 :: UCS-A# scopelicense UCS-A /license #show feature License feature: Name Vendor Version Type Grace Period ------------------------- ------ ------------------------- ------------ ETH_PORT_ACTIVATION_PKG cisco1.0 Counted 120 ETH_PORT_C_ACTIVATION_PKG cisco 1.0Counted 120 UCS-A /license #show usage Feat Name Scope Default Total QuantUsed Quant Subordinate Quant StatePeer CountComparison Grace Used ---------------------------- ----------------------- ---------- ETH_PORT_ACTIVATION_PKG A8 14 00 Not Applicable No Peer 0 ETH_PORT_C_ACTIVATION_PKG A0 0 0 0 Not Applicable No Peer 0 UCS-A /license # VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£240 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
