Some scratching and sticker wear possible, see photos.
switch# show Model Hw Direction NXA-FAN-30CFM-F -- back-to-front Ok
Fan2(sys_fan2) NXA-FAN-30CFM-F -- back-to-front Ok
Fan3(sys_fan3) NXA-FAN-30CFM-F -- back-to-front Ok
Fan4(sys_fan4) NXA-FAN-30CFM-F -- back-to-front Ok
Fan_in_PS1 -- -- back-to-front Ok
Fan_in_PS2 -- -- back-to-front Ok
Fan Zone Speed: Zone 1: 0x80
Fan Air Filter : NotSupported
Power Supply:
Voltage: 12 Volts
Power Actual Actual Total
Supply Model Output Input Capacity Status
(Watts ) (Watts ) (Watts )
------- ---------- --------------- ------ ---------- --------------------
1 NXA-PAC-650W-PE 72 W 81 W 650 W Ok
2 NXA-PAC-650W-PE 71 W 85 W 650 W Ok
Power Usage Supply redundancy mode (configured) PS-Redundant
Power Supply redundancy mode (operational) PS-RedundantTotal Power Capacity (based on configured mode) 650.00 W
Total Grid-A (first half of PS slots) Power Capacity 650.00 W
Total Grid-B (second half of PS slots) Power Capacity 650.00 W
Total Power of all Inputs (cumulative) 1300.00 W
Total Power Output (actual draw) 143.00 W
Total Power Input (actual draw) 166.00 W
Total Power Allocated (budget) N/A
Total Power Available for additional modules Sensor MajorThresh MinorThres CurTemp Status
(Celsius) (Celsius) FRONT 80 70 26 Ok
1 BACK 70 42 24 Ok
1 CPU 90 80 42 Ok
1 Sugarbowl 100 90 55 Okswitch# show inv

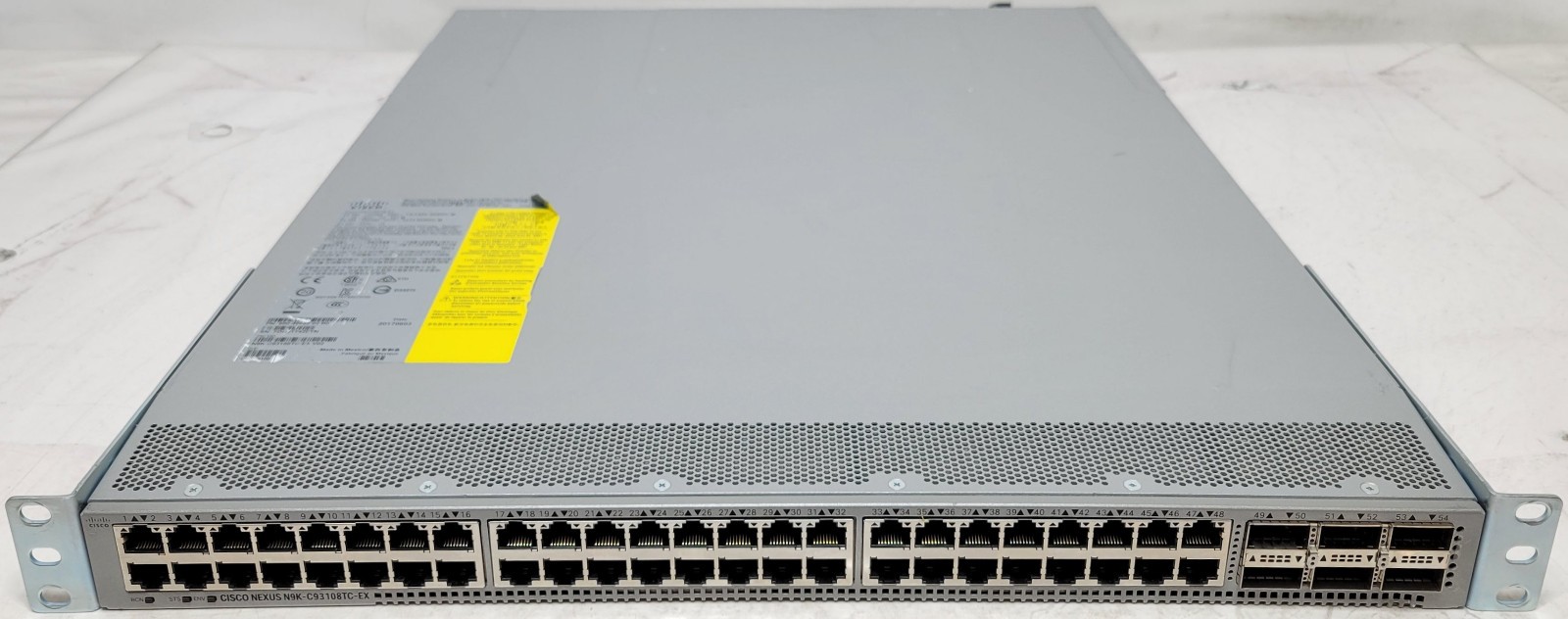

NAME: "Chassis", DESCR: "Nexus9000 C93108TC-EX chassis"
PID: N9K-C93108TC-EX , VID: V02 , SN: FDO21142EYNNAME: "Slot 1", DESCR: "48x10GT + 6x40G/100G Ethernet Module"
PID: N9K-C93108TC-EX , VID: V02 , SN: FDO21142EYNNAME: "Power Supply 1", DESCR: "Nexus9000 C93108TC-EX chassis Power Supply"
PID: NXA-PAC-650W-PE , VID: V02 , SN: ART2115F8L8NAME: "Power Supply 2", DESCR: "Nexus9000 C93108TC-EX chassis Power Supply"
PID: NXA-PAC-650W-PE , VID: V02 , SN: ART2115F8MLNAME: "Fan 1", DESCR: "Nexus9000 C93108TC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V01 , SN: N/ANAME: "Fan 2", DESCR: "Nexus9000 C93108TC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V01 , SN: N/ANAME: "Fan 3", DESCR: "Nexus9000 C93108TC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V01 , SN: N/ANAME: "Fan 4", DESCR: "Nexus9000 C93108TC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-F , VID: V01 , SN: N/Aswitch# show license usage
Feature Ins Lic Status Expiry Date Comments
No - Unused -
ACI-AD-GF No - Unused -
ACI-AD-XF No - Unused -
ACI-ES-GF No - Unused -
ACI-ES-XF No - Unused -
ACI-AD-XF2 No - Unused -
ACI-ES-XF2 No - Unused -
ACI-SEC-GF No - Unused -
ACI-SEC-XF No - Unused -
ACI-SEC-XM No 0 Unused -
N9K_LIC_1G No - Unused -
VPN_FABRIC No - Unused -
ACI-STRG-GF No - Unused -
ACI-STRG-XF No - Unused -
NXOS_OE_PKG No - Unused -
FCOE_NPV_PKG No - Unused -
SECURITY_PKG No 0 Unused -
ACI-PREMIER-GF No - Unused -
ACI-PREMIER-XF No - Unused -
N9K_UPG_EX_10G No - Unused -
ACI-PREMIER-XF2 No - Unused -
NXOS-PREMIER-M4 No - Unused -
TP_SERVICES_PKG No - Unused -
NXOS-PREMIER-M816 No - Unused -
NXOS_ADVANTAGE_GF No - Unused -
NXOS_ADVANTAGE_M4 No - Unused -
NXOS_ADVANTAGE_XF No - Unused -
NXOS_ESSENTIALS_GF No - Unused -
NXOS_ESSENTIALS_M4 No - Unused -
NXOS_ESSENTIALS_XF No - Unused -
NXOS_ESSENTIALS_XM No - Unused -
SAN_ENTERPRISE_PKG No - Unused -
PORT_ACTIVATION_PKG No 0 Unused -
NETWORK_SERVICES_PKG No - Unused -
NXOS_ADVANTAGE_M8-16 No - Unused -
NXOS_ESSENTIALS_M8-16 No - Unused -
FC_PORT_ACTIVATION_PKG No 0 Unused -
LAN_ENTERPRISE_SERVICES_PKG No - Unused show module
Mod Ports Module-Type Model Status
--- ----- ------------------------------------- --------------------- ---------
1 54 48x10GT + 6x40G/100G Ethernet Module N9K-C93108TC-EX active *Mod Sw Hw Slot
--- ----------------------- ------ ----
1 9.3(11) 1.2 NA
Mod MAC-Address(es) Serial-Num
--- -------------------------------------- ----------
1 00-27-e3-94-0c-6a to 00-27-e3-94-0c-b9 FDO21142EYNMod Online Diag Status
--- ------------------
1 Pass* this terminal session
switch# show ver
Cisco Nexus Operating System (NX-OS) Software
TAC support: http://www.cisco.com/tac
Copyright (C) 2002-2023, Cisco and/or its affiliates.
All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under their own
licenses, such as open source. This software is provided "as is," and unless
otherwise stated, there is no warranty, express or implied, including but not
limited to warranties of merchantability and fitness for a particular purpose.
Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or
GNU General Public License (GPL) version 3.0 or the GNU
Lesser General Public License (LGPL) Version 2.1 or
Lesser General Public License (LGPL) Version 2.0.
A copy of each such license is available at
Software
BIOS: version 07.69
NXOS: version 9.3(11)
BIOS compile time: 04/07/2021
NXOS image file is: bootflash:///nxos.9.3.11.bin
NXOS compile time: 1/15/2023 12:00:00 [01/24/2023 09:38:35]
Hardware
cisco Nexus9000 C93108TC-EX chassis
Intel(R) Xeon(R) CPU @ 1.80GHz with 24631952 kB of memory.
Processor Board ID FDO21142EYN Device name: switch
bootflash: 53298520 kB
Kernel uptime is 0 day(s), 0 hour(s), 6 minute(s), 5 second(s)Last reset at 753610 usecs after Mon May 4 18:10:26 2026
Reason: Module PowerCycled
System version:
Service: HW check by card-clientplugin
Core Plugin, Ethernet PluginActive Package(s):
