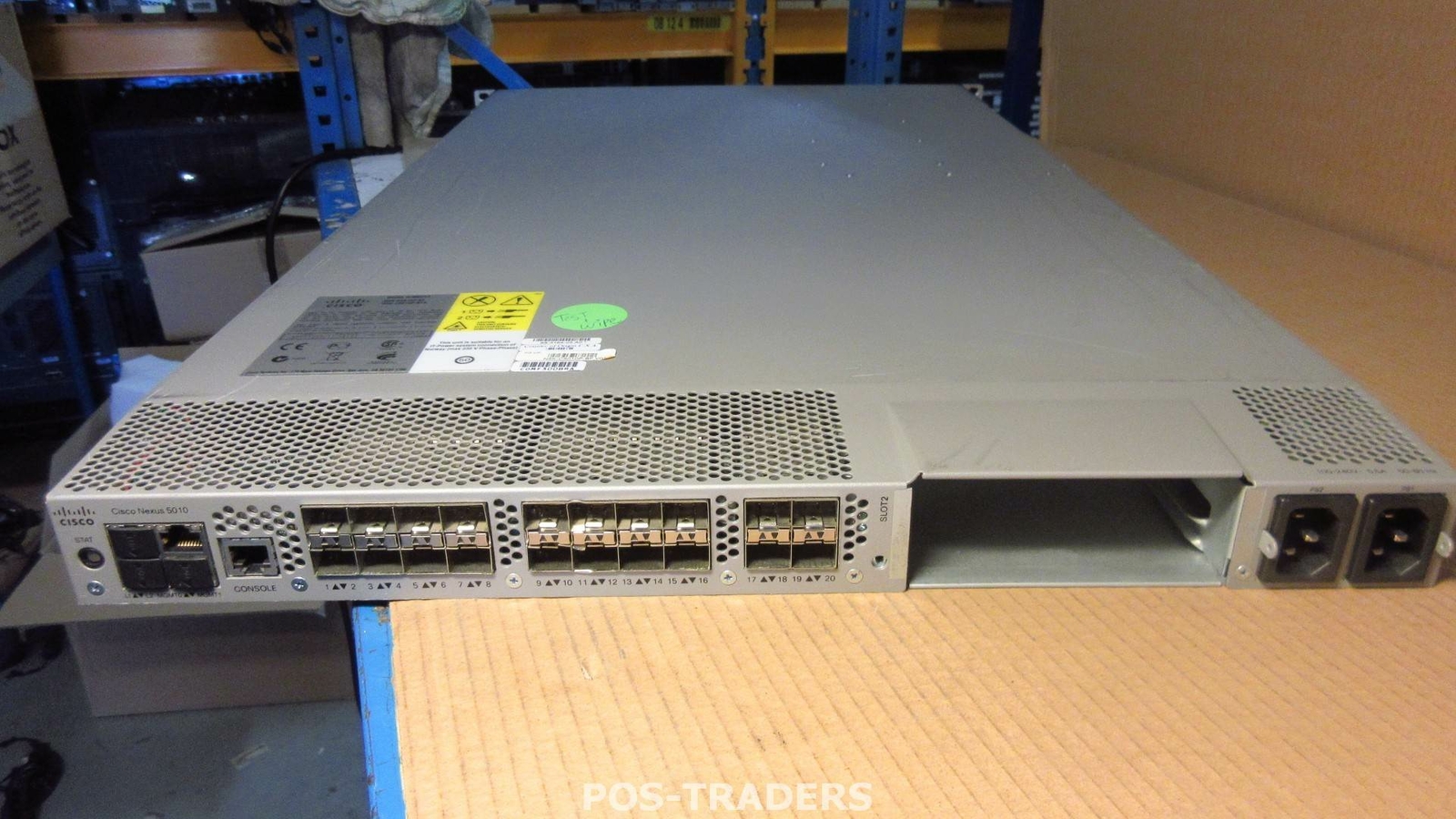

Cisco Nexus 5010 N5K-C5010P-BF v03 Switch 20-Port 10Gb NO POWER SUPPLY, MODULES
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
EXCLUDING POWER SUPPLIES & MODULES
EXCLUDING NETWORK CABLES
Price is for 1 item
See photos for actual item
Features
- Layer 2 hardware forwarding at 520 Gbps or 386.9 mpps
- MAC address table entries: 16,000
- Low-latency cut-through design that provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interfaces
- Line-rate traffic throughput on all ports
- 20 fixed 10 Gigabit Ethernet and FCoE Ports (ports 1 to 8 are Gigabit Ethernet and 10 Gigabit Ethernet); additional interfaces through one expansion module
Specifications
Standards
- IEEE 802.1D: Spanning Tree Protocol
- IEEE 802.1p: CoS prioritization
- IEEE 802.1Q: VLAN tagging
- IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol
- IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol
- IEEE 802.3: Ethernet
- IEEE 802.3ad: LACP with fast timers
- IEEE 802.3ae: 10 Gigabit Ethernet
- SFF 8431 SFP+ CX1 support
- RMON
- Jumbo Frames: 9216 bytes
- Primary Port Speed:10/100/1000Mbps + 10 Gigabit
Security
- Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports
- Standard and extended Layer 2 ACLs: MAC addresses, protocol type, etc.
- Standard and extended Layer 3 to 4 ACLs: IPv4 and v6, Internet Control Message Protocol (ICMP), TCP, User Datagram Protocol (UDP), etc.
- VLAN-based ACLs (VACLs)
- Port-based ACLs (PACLs)
- Named ACLs
- ACL logging and statistics
- Optimized ACL distribution
- SNMP: Yes
- QoS: Yes
- LACP: Yes
- Layer: 1
- Module Support: Yes
- VLAN Support: Yes
Power
- Typical operating power: 350W
- Maximum power: 450W
- Input voltage: 100 to 240 VAC
- Frequency: 50 to 60 Hz
- Efficiency: 88 to 90%
- Heat dissipation: 1536 BTU/hr
Dimensions
- 1.72 x 17.3 x 30.0 in.(4.4 x 43.9 x 76.2 cm)
The Cisco Nexus 5010 is a 1RU, 10 Gigabit Ethernet, FCoE, and Fiber Channel switch providing more than 520-Gbps throughput with very low latency. It has 20 fixed 10 Gigabit Ethernet and FCoE SFP+ ports. The first 8 fixed ports are dual speed, supporting both 10 Gigabit Ethernet and Gigabit Ethernet in hardware and providing a smooth migration path to 10 Gigabit Ethernet. One expansion module slot can be configured to support up to 6 additional 10 Gigabit Ethernet and FCoE SFP+ ports, up to 8 4Gbps SFP Fiber Channel switch ports, up to 6 8Gbps SFP+ Fiber Channel switch ports or a combination of 4 additional 10 Gigabit Ethernet and FCoE SFP+ ports with 4 additional 4/2/1-Gbps Fiber Channel switch ports. The switch has a serial console port and an out-of-band 10/100/1000-Mbps Ethernet management port. The switch is powered by 1+1 redundant, hot-pluggable power supplies and 1+1 redundant, hot-pluggable fan modules to provide highly reliable front-to-back cooling.
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
.
