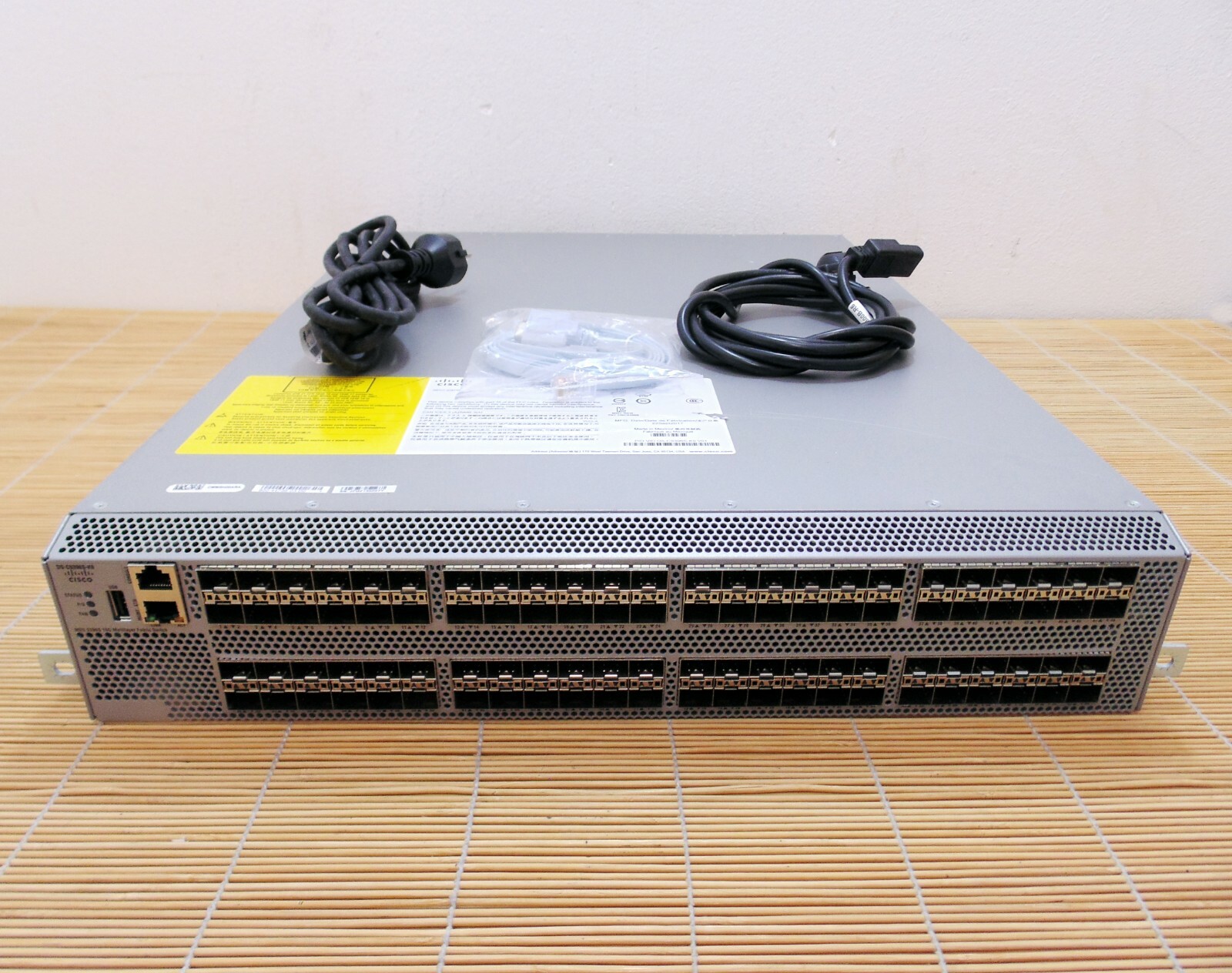

CiscoDS-C9396S-K9
MDS 9396S 16G FC switch
with 96 active ports License
Chassis only

/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.

WIR GEBEN 3 JAHRE GARANTIE!

Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG. , daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden. Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können. Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher Umsatzsteuer FREI! Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - Umsatzsteuer-FREI!

Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine Netto-Rechnung erstellen können. Sollten Sie als

Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.

Product Overview

The Cisco® MDS 9396S 16G Multilayer Fabric Switch (Figure 1) is the next generation of the high performance, high density and highly reliable Cisco MDS Series Fabric switches. It combines high performance with exceptional flexibility and cost effectiveness. This powerful, compact, 2-rack-unit (2RU) switch scales from 48 to 96 line-rate 16-Gbps Fibre Channel ports.

The Cisco MDS 9396S is excellent for:

- A standalone SAN in large departmental storage environments

- A middle-of-row or top-of-rack switch in medium-sized redundant fabrics

- An edge switch in enterprise data center core-edge topologies

The Cisco MDS 9396S is powered by Cisco NX-OS Software and Cisco Prime™ Data Center Network Manager (DCNM) software. It delivers advanced storage networking features and functions with ease of management and compatibility with the entire Cisco MDS 9000 Family portfolio for reliable end-to-end connectivity.

Main Features

High Performance and Flexibility at Lower Cost

Up to 96 autosensing Fibre Channel ports are capable of speeds of 2, 4, 8, 10, and 16 Gbps, with 16 Gbps of dedicated bandwidth for each port. The base switch model comes with 48 or 96 ports enabled. The 48-port base model can be upgraded as needed with the 12-port Cisco MDS 9396S On-Demand Port Activation license to also support configurations of 60, 72, 84, and 96 enabled ports. Only the Cisco MDS 9396S scales from 48 to 96 high-performance Fibre Channel ports in a 2RU compact form factor. The Cisco MDS 9396S switch is a high-end fabric switch. It offers more buffer-to-buffer credits than the previous generation fabric switches and also supports a much greater number of VSANs, making it an excellent choice for standalone small and midsize business (SMB) Fibre Channel networks. The 16-Gbps MDS 9396S is the first generation of NVMe over Fibre Channel ready 2RU switches1. When deployed as an N-Port virtualization (NPV) node or as an N-Port ID Virtualization (NPIV) core connecting legacy Fibre channel switches or multi-protocol Nexus NPV switches, it provides a flexible and scalable option for host connectivity.

High-Availability Platform for Mission-Critical Deployments

In environments in which downtime is intolerable, the Cisco MDS 9396S offers In-Service Software Upgrades (ISSU). With this feature, Cisco NX-OS Software can be upgraded while the Fibre Channel ports carry traffic. The Cisco MDS 9396S includes dual redundant hot-swappable power supplies and fan trays, PortChannels for Inter-Switch Link (ISL) resiliency, and F-port channeling for resiliency on uplinks from a Cisco MDS 9396S operating in N-Port Virtualization (NPV) mode. New hardware-based slow-port detection and recovery provide enhanced performance and monitoring capabilities.

Simplified Storage Management with Sophisticated Diagnostics

The Cisco MDS 9396S offers built-in storage network management and SAN plug-and-play capabilities. All features are available through a Command-Line Interface (CLI) or Cisco Prime DCNM for SAN Essentials Edition, a centralized management tool. Cisco DCNM task-based wizards simplify management of single or multiple switches and fabrics. For virtual infrastructure, it manages the entire path: from the virtual machine and switch to the physical storage. The Cisco MDS 9396S also supports Power On Auto Provisioning (POAP) to automate software image upgrades and configuration file installation on newly deployed switches. Additionally, it provides intelligent diagnostics, protocol decoding, network analysis tools, and Cisco Call Home for added reliability, faster problem resolution, and reduced service costs.

Intelligent Network Services and Advanced Traffic Management

The Cisco MDS 9396S uses virtual SAN (VSAN) technology for hardware-enforced, isolated environments within a physical fabric. It offers Access Control Lists (ACLs) for hardware-based, intelligent frame processing. Advanced traffic management features, such as fabricwide quality of service (QoS) and Inter-VSAN Routing (IVR), are included in the optional Cisco MDS 9000 Family Enterprise Package. QoS prioritizes application data traffic for better and more predictable network service. Zone-based QoS simplifies configuration and administration by using the familiar zoning concept. IVR facilitates resource sharing across VSANs without compromising scalability, reliability, availability, or network security.

Comprehensive Network Security Framework

An extensive set of innovative and powerful security features and functions is available with the optional Cisco MDS 9000 Family Enterprise Package. It offers fabricwide, per-VSAN role-based authentication, authorization, and accounting (AAA) services using RADIUS, Lightweight Directory Access Protocol (LDAP), Microsoft Active Directory (AD), and TACACS+. It also deploys VSAN fabric isolation, intelligent port-level packet inspection, Fibre Channel Security Protocol (FC-SP) host-to-switch and switch-to-switch authentication, Cisco Trustsec Link encryption, Secure File Transfer Protocol (SFTP), Secure Shell Version 2 (SSHv2), and Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES). Other security features include control-plane security, hardware-enforced zoning and management access.

switch# sh ver

Cisco Nexus Operating System (NX-OS) Software

Copyright (c) 2002-2017, Cisco Systems, Inc. All rights reserved.

The copyrights to certain works contained herein are owned by

other third parties and are used and distributed under license.

Some parts of this software are covered under the GNU Public

License.

Software

BIOS: version 5.2.19

loader: version N/A

kickstart: version 6.2(21)

system: version 6.2(21)

BIOS compile time: 05/15/2015

kickstart image file is: style="font-family: Arial; font-size: 14pt;"> kickstart compile time: 8/31/2017 23:00:00 [09/23/2017 18:20:55]

system image file is: style="font-family: Arial; font-size: 14pt;"> system compile time: 8/31/2017 23:00:00 [09/23/2017 19:20:36]

Hardware

cisco MDS 9396S 96X16G FC (2 RU) Chassis ("2/4/8/10/16 Gbps FC/Supervisor-4")

Motorola, 476fpe, core 0 with 3891476 kB of memory.

Processor Board ID JAE213406V5

Device name: switch

bootflash: 3915776 kB

Kernel uptime is 0 day(s), 0 hour(s), 6 minute(s), 8 second(s)

Last reset

Reason: Unknown

System version: 6.2(21)

Service:

plugin

Core Plugin

switch# sh license usage

Feature Ins Lic Status Expiry Date Comments

Count

FM_SERVER_PKG No - Unused -

ENTERPRISE_PKG Yes - Unused never -

PORT_ACTIV_9396S_PKG Yes 96 In use never -
