🔀 Cisco Catalyst 3750X 24 Port Gigabit IP Base Switch + 10G StackWise Plus Module ⚡
Cisco WS-C3750X-24T-S V03 — Layer 3 Stackable Managed Switch with 10 Gigabit C3KX-NM-10G Network Module + 2 Redundant Power Supplies
🔍 State : Used — Equipment from professional fleet, tested and verified functional before shipment.
🏢 Product Presentation

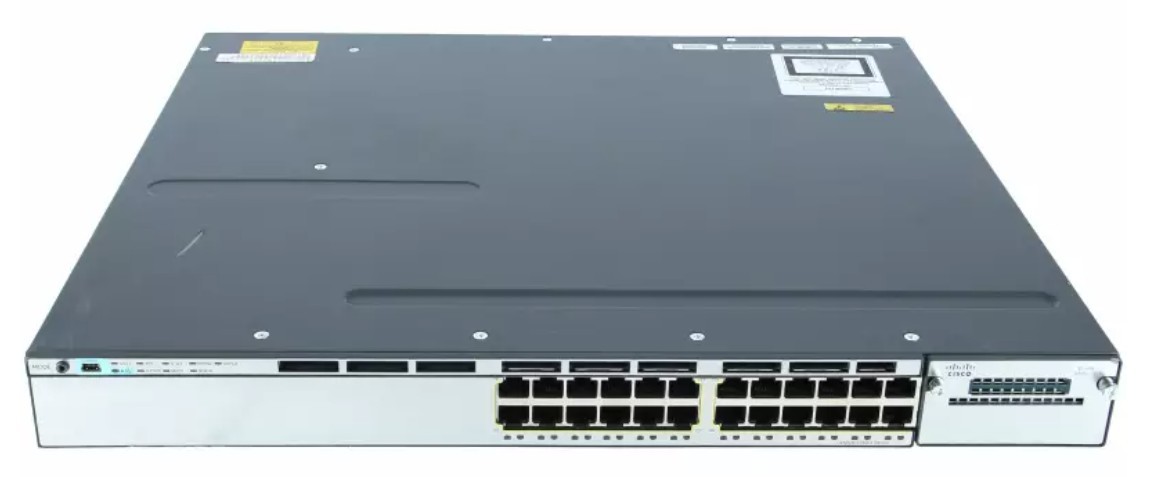

THE Cisco Catalyst WS-C3750X-24T-S is an enterprise-grade managed switch offering 24 Gigabit Ethernet ports 10/100/1000, a stacking architecture StackWise Plus at 64 Gbps and full Layer 3 routing thanks to firmware Basic IP. Its switching capacity of 160Gbps makes it an essential reference for professional access and distribution networks.
This complete set includes the switch in version V03 with its module C3KX-NM-10G (2x SFP+ 10 Gigabit + 2x SFP 1 Gigabit), its 2 redundant power supplies and their power cable holders — a turnkey professional networking solution.
📸 Photos are for illustration purposes only. Only the textual content of the advertisement is authentic for the exact reference of the product and the accessories included. If in doubt, please do not hesitate to contact us via messaging.
📦 Batch Content
- ✅ 1x Cisco WS-C3750X-24T-S V03 Switch
- ✅ 1x C3KX-NM-10G Network Module (2x SFP+ 10 GbE + 2x SFP 1 GbE) — installed
- ✅ 2x Power supplies (PSU) redundant
- ✅ 2x Power cable supports
⚙️ Technical Specifications🔌Copper Ports24x Rate65.5 Mpps📡Uplink moduleC3KX-NM-10G included🔗Uplink Ports2x SFP+ 10G + 2x SFP 1G📶StackingStackWise Plus 64Gbps🔋Food2x redundant PSUs🧠RAM memory256 MB DRAM💾Flash64 MB🔒Supported VLANs1005 (Basic IP)📏Jumbo Frames9,216 bytes🌐Network LayerLayer 3 (L3)🏗️Rack format1U — 445 × 460 × 44.5 mm⚖️Weight7.1 kg🔌Input Voltage100–240V / 50–60Hz🌡️Temp. Function-5°C to +40°C⏱️MTBF189,704 hours🏭ManufacturerCisco Systems — USA🔢ReferenceWS-C3750X-24T-S V03🛡️ Our Commitments✅30 Day GuaranteeReturn accepted within 30 days if the product does not correspond to the description in the advertisement.📦Secure Shipping & TrackingProfessional reinforced packaging. Fast shipping with carrier tracking number provided.🧾Professional InvoiceProfessional invoice with 0% VAT in paper format systematically attached in each package.⚠️Software ExclusionNo warranty on the software part (IOS, firmware, licenses). We do not provide technical support.❓ Frequently Asked Questions (FAQ)
❓ Is the Cisco WS-C3750X-24T-S switch compatible with network equipment from other brands?
Yes, the Cisco Catalyst 3750X complies with open standards IEEE 802.1Q, 802.3, 802.3ab, 802.1x and integrates perfectly into a multi-vendor network infrastructure. Its management via SNMP, Telnet, SSH and HTTP ensures universal administration. It interconnects frictionlessly with any compatible Gigabit Ethernet equipment, whether routers, firewalls or servers.
❓ Is the C3KX-NM-10G module already installed and what types of SFP+ transceivers does it accept?
Yes, the C3KX-NM-10G module is installed in the network slot of the switch. It has 2 ports 10 Gigabit SFP+ and 2 ports 1 Gigabit SFP, compatible with single-mode and multi-mode fiber transceivers and DAC/twinax. It is hot-swappable and natively recognized by Cisco IOS. Its MTBF exceeds 2.3 million hours.
❓ How many switches can be stacked using Cisco StackWise Plus technology?
Technology Cisco StackWise Plus allows you to stack up to 9 Catalyst 3750X switches to form a logical network managed as a single device, with a total stacking bandwidth of 64Gbps. This architecture simplifies network management, improves resiliency and enables progressive scalability without service interruption.
❓ Why is dual redundant power supply a key advantage for this managed switch?
THE 2 redundant PSU power supplies guarantee total service continuity in the event of a PSU failure, without any network outage. This is a critical requirement for environments data center, server room or distribution network requiring high availability. Each PSU can be hot swapped. The included cable holders facilitate clean, professional cabling.
❓ Does this Layer 3 switch support inter-VLAN routing, ACLs and advanced QoS?
Yes, thanks to the firmware Basic IP, the Cisco 3750X supports inter-VLAN static routing, access control lists (ACL), advanced QoS, IGMP Snooping, Spanning Tree (STP/RSTP/MSTP), as well as security MACsec and 802.1x port control. A complete solution for any SME business network, community or large structure.
❓ Is an invoice with VAT provided with the order?
Yes, each order comes with a professional paper invoice with 0% VAT included in the package. This document can be used for accounting and tax deduction purposes.
