TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.One of the power supplies has a slight dent, unit works just fine.

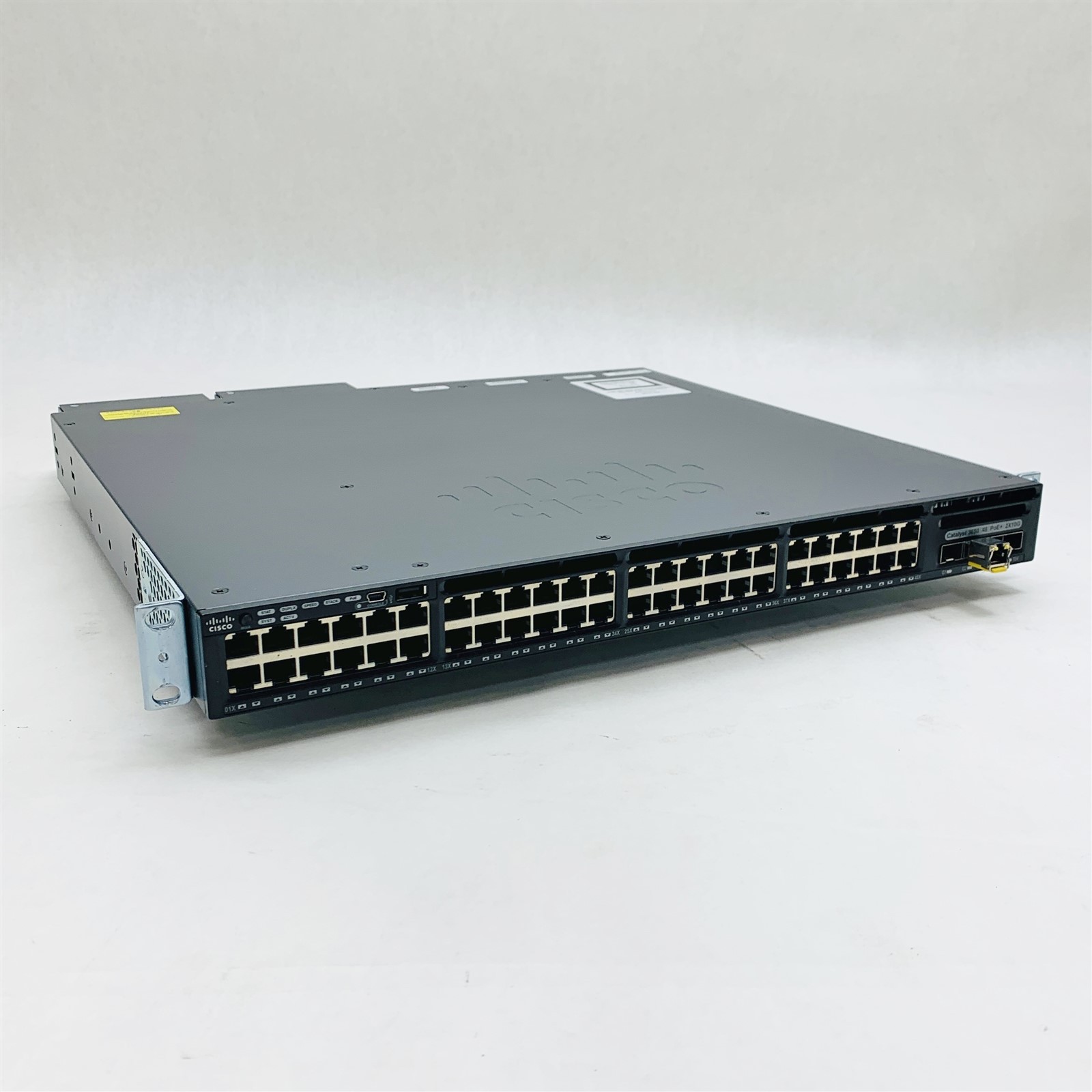

COMPONENTS INCLUDED IN THIS sale:• (1) - CISCO CATALYST 3650 48 PORT POE+ GIGABIT ETHERNET NETWORK SWITCH WS-C3650-48FD-L
• (2) - CISCO PWR-C2-1025WAC POWER SUPPLY
• (2) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:Interface GE 0 link down***ERROR: PHY link is down
The "IP_ADDR" environment variable is not set.
Getting rest of image
Reading full image into memory...Check base package header ...: done = 16384
Getting rest of image
Reading full image into memory....done
Reading full base package into memory...: done = 32798679
Bundle Image
Kernel Address : 0x537783c0
Kernel Size : 0x438356/4424534
Initramfs Address : 0x53bb0716
Initramfs Size : 0x1ab68c1/28010689
Compression Format: mzip
Bootable image at @ ram:0x537783c0
Bootable image segment 0 address range [0x81100000, 0x81da5280] is in range [0x8
0180000, 0x90000000].
@@@@@@@@@@@@@@@@@@@@@@boot_system: 623
Loading Linux kernel with entry point 0x81895bf0 ...
Bootloader: Done loading app on core_mask: 0xf
### Launching Linux Kernel (flags = 0x5)
Linux version 4.9.187 (xelinux@sjc-xelinux3) (gcc version 5.3.0 (GCC) ) #1 SMP W
ed Nov 4 12:00:14 PST 2020
CVMSEG size: 2 cache lines (256 bytes)
Cavium Inc. SDK-5.1.0
bootconsole [early0] enabled
CPU0 revision is: 000d900a (Cavium Octeon II)
Checking for the multiply/shift bug... no.
Checking for the daddiu bug... no.
Final tar file: mcu_ucode_bundle_8_1_0.tar
Both links down, not waiting for other switches
Switch number is 1
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSAL
K9-M), Version 16.12.5b, RELEASE SOFTWARE (fc3)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2021 by Cisco Systems, Inc.
Compiled Thu 25-Mar-21 13:09 by mcpre
This software version supports only Smart Licensing as the software licensing me
chanism.
PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR
LICENSE KEY PROVIDED FOR ANY CISCO SOFTWARE PRODUCT, PRODUCT FEATURE,
AND/OR SUBSEQUENTLY PROVIDED SOFTWARE FEATURES (COLLECTIVELY, THE
"SOFTWARE"), AND/OR USING SUCH SOFTWARE CONSTITUTES YOUR FULL
ACCEPTANCE OF THE FOLLOWING TERMS. YOU MUST NOT PROCEED FURTHER IF YOU
ARE NOT WILLING TO BE BOUND BY ALL THE TERMS SET FORTH HEREIN.
Your use of the Software is subject to the Cisco End User License Agreement
(EULA) and any relevant supplemental terms (SEULA) found at
You hereby acknowledge and agree that certain Software and/or features are
licensed for a particular term, that the license to such Software and/or
features is valid only for the applicable term and that such Software and/or
features may be shut down or otherwise terminated by Cisco after expiration
of the applicable license term (e.g., 90-day trial period). Cisco reserves
the right to terminate any such Software feature electronically or by any
other means available. While Cisco may provide alerts, it is your sole
responsibility to monitor your usage of any such term Software feature to
ensure that your systems and networks are prepared for a shutdown of the
Software feature.
FIPS: Flash Key Check : Begin
FIPS: Flash Key Check : End, Not Found, FIPS Mode Not Enabled
All TCP AO KDF Tests Pass
cisco WS-C3650-48PD (MIPS) processor (revision D0) with 794888K/6147K bytes of m
emory.
Processor board ID FDO1849E0Y9
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
257008K bytes of Crash Files at crashinfo:.
1550272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : 74:a0:2f:f2:6c:80
Motherboard Assembly Number : 73-15125-05
Motherboard Serial Number : FDO1849129G
Model Revision Number : D0
Motherboard Revision Number : A0
Model Number : WS-C3650-48PD
System Serial Number : FDO1849E0Y9
Press RETURN to get started!
*Apr 24 16:53:09.325: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowed
*Apr 24 16:53:13.979: %SMART_LIC-6-AGENT_READY: Smart Agent for Licensing is ini
tialized
*Apr 24 16:53:13.995: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is e
nabled
*Apr 24 16:53:14.008: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowedRA Tracing tool registry return: 0
*Apr 24 16:53:27.255: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for typ
e vlan
*Apr 24 16:53:28.914: %LINK-3-UPDOWN: Interface Lsmpi18/3, changed state to up
*Apr 24 16:53:28.916: %LINK-3-UPDOWN: Interface EOBC18/1, changed state to up
*Apr 24 16:53:28.917: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to down
*Apr 24 16:53:28.918: %LINK-3-UPDOWN: Interface LIIN18/2, changed state to up
*Apr 24 16:53:29.293: %HMANRP-6-HMAN_IOS_CHANNEL_INFO: HMAN-IOS channel event fo
r switch 1: EMP_RELAY: Channel UP!
*Apr 24 16:53:29.311: %HMANRP-6-EMP_NO_ELECTION_INFO: Could not elect active EMP
switch, setting emp active switch to 0: EMP_RELAY: Could not elect switch with
mgmt port UP
*Apr 24 16:52:45.235: %STACKMGR-6-STACK_LINK_CHANGE: Switch 1 R0/0: stack_mgr: S
tack port 1 on Switch 1 is nocable
*Apr 24 16:52:45.235: %STACKMGR-6-STACK_LINK_CHANGE: Switch 1 R0/0: stack_mgr: S
tack port 2 on Switch 1 is down
*Apr 24 16:52:45.235: %STACKMGR-6-STACK_LINK_CHANGE: Switch 1 R0/0: stack_mgr: S
tack port 2 on Switch 1 is nocable
*Apr 24 16:52:45.236: %STACKMGR-4-SWITCH_ADDED: Switch 1 R0/0: stack_mgr: Switch
1 has been added to the stack.
*Apr 24 16:52:50.604: %STACKMGR-4-SWITCH_ADDED: Switch 1 R0/0: stack_mgr: Switch
1 has been added to the stack.
*Apr 24 16:52:52.606: %STACKMGR-4-SWITCH_ADDED: Switch 1 R0/0: stack_mgr: Switch
1 has been added to the stack.
*Apr 24 16:52:52.606: %STACKMGR-6-ACTIVE_ELECTED: Switch 1 R0/0: stack_mgr: Swit
ch 1 has been elected ACTIVE.
*Apr 24 16:53:29.330: %HMANRP-6-EMP_NO_ELECTION_INFO: Could not elect active EMP
switch, setting emp active switch to 0: EMP_RELAY: Could not elect switch with
mgmt port UP
*Apr 24 16:53:29.339: %SMART_LIC-6-HA_ROLE_CHANGED: Smart Agent HA role changed
to Active.
*Apr 24 16:53:30.045: %LINEPROTO-5-UPDOWN: Line protocol on Interface Lsmpi18/3,
changed state to up
*Apr 24 16:53:30.046: %LINEPROTO-5-UPDOWN: Line protocol on Interface EOBC18/1,
changed state to up
*Apr 24 16:53:30.047: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet0/0, changed state to up
*Apr 24 16:53:30.047: %LINEPROTO-5-UPDOWN: Line protocol on Interface LIIN18/2,
changed state to up
*Apr 24 16:53:32.106: %SYS-5-CONFIG_P: Configured programmatically by process MG
MT VRF Process from console as vty0
*Apr 24 16:53:32.120: %IOSXE_MGMTVRF-6-CREATE_SUCCESS_INFO: Management vrf Mgmt-
vrf created with ID 1, ipv4 table-id 0x1, ipv6 table-id 0x1E000001
*Apr 24 16:53:32.122: %SYS-5-CONFIG_P: Configured programmatically by process MG
MT VRF Process from console as vty0
*Apr 24 16:53:32.790: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, cha
nged state to down
*Apr 24 16:53:33.828: %SYS-7-NVRAM_INIT_WAIT_TIME: Waited 0 seconds for NVRAM to
be available
*Apr 24 16:53:34.479: %ONEP_BASE-6-SS_ENABLED: ONEP: Service set Base was enable
d by Default
*Apr 24 16:53:34.908: %SW_VLAN-6-VTP_DOMAIN_NAME_CHG: VTP domain name changed to
CA28.
*Apr 24 16:53:34.936: %SYS-5-CONFIG_I: Configured from memory by console
*Apr 24 16:53:35.194: %SYS-5-CONFIG_P: Configured programmatically by process CP
P MQC QoS Policy manager from console as vty1
*Apr 24 16:53:35.350: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to up
*Apr 24 16:53:36.026: %EVENT_TRACE-6-ENABLE: Trace already enabled.
*Apr 24 16:53:36.026: %EVENT_TRACE-6-ENABLE: Trace already enabled.
*Apr 24 16:53:36.026: %EVENT_TRACE-6-ENABLE: Trace already enabled.
*Apr 24 16:53:36.027: %EVENT_TRACE-6-ENABLE: Trace already enabled.
*Apr 24 16:53:36.719: %SYS-5-RESTART: System restarted --
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSAL
K9-M), Version 16.12.5b, RELEASE SOFTWARE (fc3)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2021 by Cisco Systems, Inc.
Compiled Thu 25-Mar-21 13:09 by mcpre
*Apr 24 16:53:38.708: %LINK-3-UPDOWN: Interface Vlan1, changed state to up
*Apr 24 16:53:39.028: %SYS-6-BOOTTIME: Time taken to reboot after reload = 308
seconds
*Apr 24 16:53:40.919: %LINK-3-UPDOWN: Interface GigabitEthernet0/0, changed stat
e to down
*Apr 24 16:53:41.919: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEth
ernet0/0, changed state to down
*Apr 24 16:53:42.853: %PNP-6-PNP_DISCOVERY_STOPPED: PnP Discovery stopped (Start
up Config Present)
*Apr 24 16:53:45.274: %SYS-5-CONFIG_P: Configured programmatically by process EP
M CREATE DEFAULT CWA URL ACL from console as console
*Apr 24 16:53:47.490: %PKI-2-NON_AUTHORITATIVE_CLOCK: PKI functions can not be i
nitialized until an authoritative time source, like NTP, can be obtained.
*Apr 24 16:53:47.511: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: TP-self-signed-11057
69926 created succesfully
*Apr 24 16:53:47.515: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: CISCO_IDEVID_SUDI_LE
GACY created succesfully
*Apr 24 16:53:47.556: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SU
DI_LEGACY has been generated or imported by pki-sudi
*Apr 24 16:53:47.655: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: CISCO_IDEVID_SUDI_LE
GACY0 created succesfully
*Apr 24 16:53:47.669: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: CISCO_IDEVID_SUDI cr
eated succesfully
*Apr 24 16:53:47.705: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SU
DI has been generated or imported by pki-sudi
*Apr 24 16:53:47.921: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: CISCO_IDEVID_SUDI0 c
reated succesfully
*Apr 24 16:53:49.201: %PLATFORM_PM-6-MODULE_INSERTED: SFP module inserted with i
nterface name Gi1/1/2
*Apr 24 16:53:57.325: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-
1105769926 has been generated or imported by crypto-engine
*Apr 24 16:53:57.328: %SSH-5-ENABLED: SSH 1.99 has been enabled
*Apr 24 16:53:57.620: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issu
e "write memory" to save new IOS PKI configuration
*Apr 24 16:53:57.980: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-
1105769926.server has been generated or imported by crypto-engine
*Apr 24 16:54:07.731: %PKI-6-TRUSTPOINT_CREATE: Trustpoint: SLA-TrustPoint creat
ed succesfully
*Apr 24 16:54:07.742: %PKI-6-CONFIGAUTOSAVE: Running configuration saved to NVRA
M[OK]
*Apr 24 16:54:10.302: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled
features is not allowed
*Apr 24 16:54:10.336: %CALL_HOME-6-CALL_HOME_ENABLED: Call-home is enabled by Sm
art Agent for Licensing.
Switch>show ver
Cisco IOS XE Software, Version 16.12.05b
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSAL
K9-M), Version 16.12.5b, RELEASE SOFTWARE (fc3)
Technical Support: http:/www.cisco.com/techsupport
Copyright (c) 1986-2021 by Cisco Systems, Inc.
Compiled Thu 25-Mar-21 13:09 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2021 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 4.76, RELEASE SOFTWAR
E (P)
Switch uptime is 4 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Reload Command
System image file is "flash:packages.conf"
Last reload reason: Reload Command
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
export@cisco.com.
Technology Package License Information:
Technology-package Technology-package
Current Type Next reboot
ipbasek9 Smart License ipbasek9
None Subscription Smart License None
Smart Licensing Status: UNREGISTERED/EVAL EXPIRED
cisco WS-C3650-48PD (MIPS) processor (revision D0) with 794888K/6147K bytes of m
emory.
Processor board ID FDO1849E0Y9
1 Virtual Ethernet interface
50 Gigabit Ethernet interfaces
2 Ten Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
257008K bytes of Crash Files at crashinfo:.
1550272K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : 74:a0:2f:f2:6c:80
Motherboard Assembly Number : 73-15125-05
Motherboard Serial Number : FDO1849129G
Model Revision Number : D0
Motherboard Revision Number : A0
Model Number : WS-C3650-48PD
System Serial Number : FDO1849E0Y9
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 1 52 WS-C3650-48PD 16.12.05b CAT3K_CAA-UNIVERSALK9 INSTALL
Configuration register is 0x102
Switch> Please Click Here to Visit Our StoreSearchBy31 - 276748 | Loc: F32 | L: Mitchell |T: | PM: Nick | QTY: 0| Plan: 20% - NET of FEES |22.00"x21.00"x5.00"30.00lbs |Start: $0.00 | BIN: $79.99 | |2026-04-29 ||Computers/Tablets & Networking::Enterprise Networking, Servers::Switches & Hubs::Network Switches
