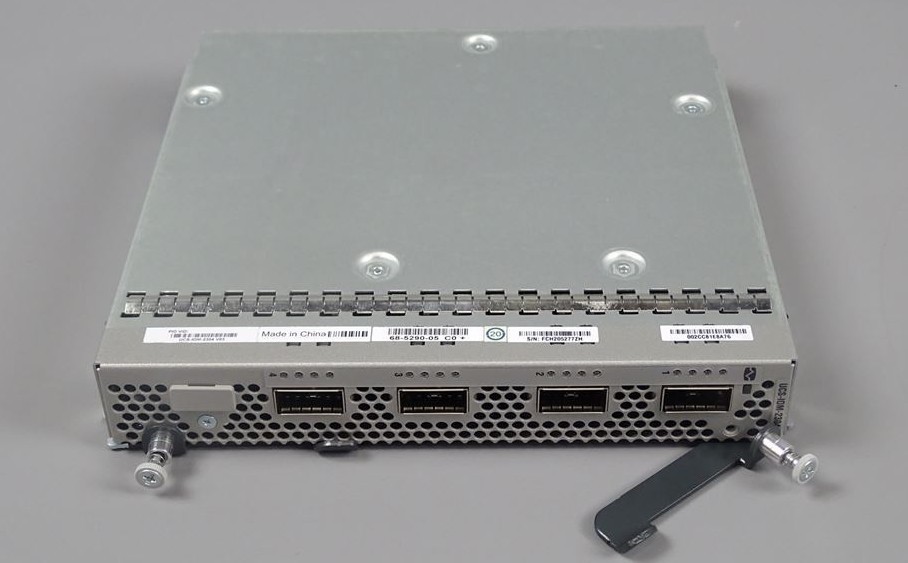

CISCO UCS-IOM-2304 UCS 2304XP I/O Module (4x External. 8x Internal 40Gb Ports)
Model:UCS 2304XP
P/N:UCS-IOM-2304
In Good Condition, Full Working Order
Includes:
- 1 xCISCO UCS-IOM-2304 UCS 2304XP I/O Module (4x External. 8x Internal 40Gb Ports)
Product Overview:
Cisco UCS 2304 Fabric Extender brings the unified fabric into the blade server enclosure, providing multiple 40 Gigabit Ethernet connections between blade servers and the fabric interconnect, simplifying diagnostics, cabling, and management. It is a third-generation I/O Module (IOM) that shares the same form factor as the second-generation Cisco UCS 2200 Series Fabric Extenders and is backward compatible with the shipping Cisco UCS 5108 Blade Server Chassis.
The Cisco UCS 2304 connects the I/O fabric between the Cisco UCS 6300 Series Fabric Interconnects and the Cisco UCS 5100 Series Blade Server Chassis, enabling a lossless and deterministic Fibre Channel over Ethernet (FCoE) fabric to connect all blades and chassis together. Because the fabric extender is similar to a distributed line card, it does not perform any switching and is managed as an extension of the fabric interconnects. This approach removes switching from the chassis, reducing overall infrastructure complexity and enabling Cisco UCS to scale to many chassis without multiplying the number of switches needed, reducing TCO and allowing all chassis to be managed as a single, highly available management domain.
The Cisco UCS 2304 also manages the chassis environment (power supply, fans, and blades) in conjunction with the fabric interconnect. Therefore, separate chassis management modules are not required.
Cisco UCS 2304 Fabric Extenders fit into the back of the Cisco UCS 5100 Series chassis. Each Cisco UCS 5100 Series chassis can support up to two fabric extenders, allowing increased capacity and redundancy.
Technical Specification:
Compatibility InformationDesigned ForCisco UCS 5108 Blade Server Chassis, SmartPlay Select 5108 Chassis ¦ Cisco UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer)GeneralDevice TypeExpansion moduleForm FactorPlug-in moduleNetworkingPorts40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8Connectivity TechnologyWiredData Link ProtocolFCoE, 40 Gigabit LANPerformanceForwarding performance: 960 GbpsCapacityVLANs supported: 1024 ¦ Jumbo frame size: 9216FeaturesVLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames support, Class of Service (CoS), Fabric Extender Transceiver (FET)Compliant StandardsIEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1QazExpansion / ConnectivityInterfaces4 x 40Gb Ethernet / FCoE (uplink) - QSFP+ ¦ 8 x 40Gb Ethernet - backplaneMiscellaneousCompliant StandardsCISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, CAN/CSA C22.2 No. 60950-1, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class ADimensions & WeightWidth3.45 cmDepth18.3 cmHeight19.4 cmWeight1.134 kgEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating5 - 95% (non-condensing)
