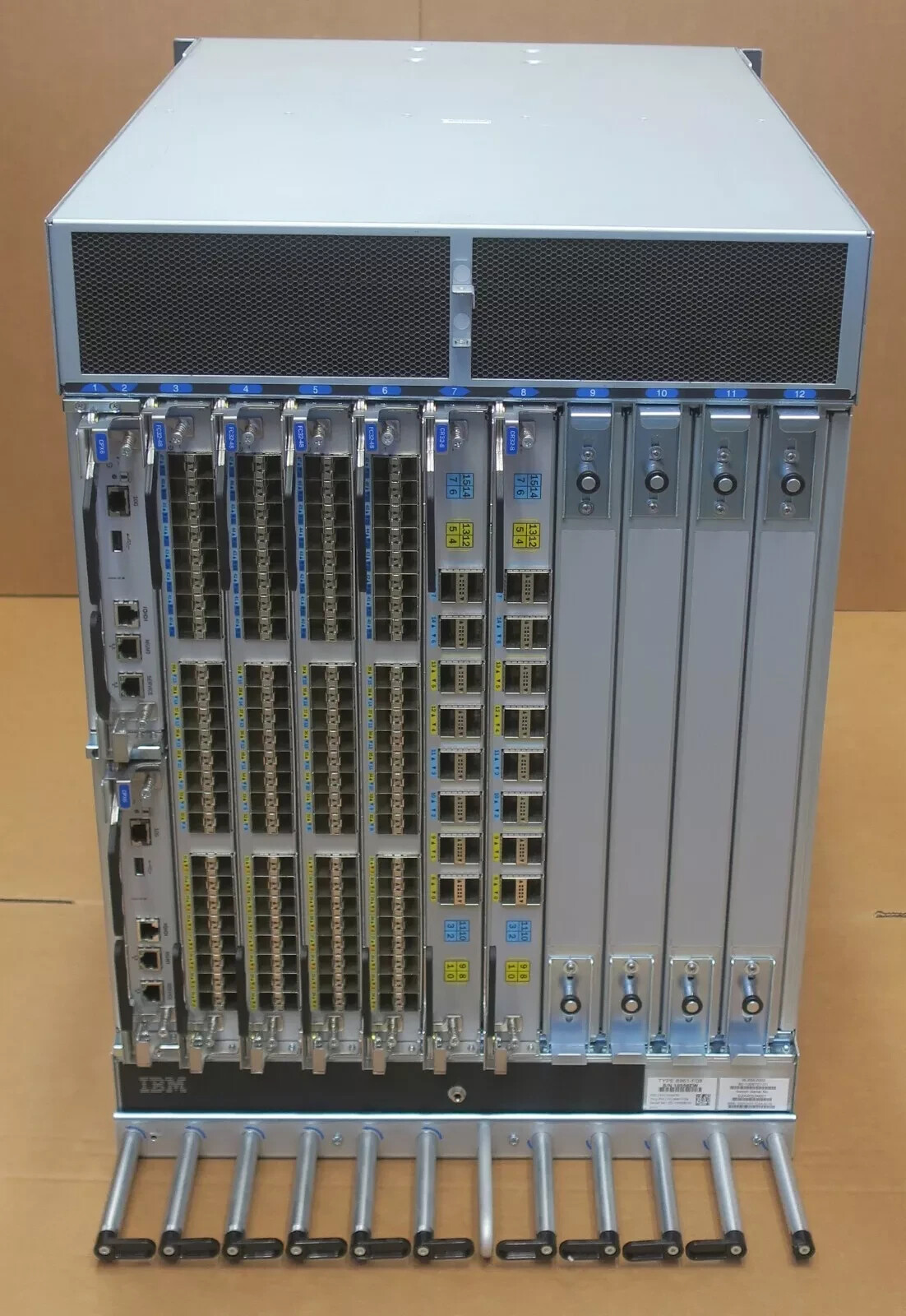

Brocade X6-8 / IBM SAN512B-6 8-Slot Gen6 Director 8961-F08 + 4x FC32-48 2xCPX6Chassis Model:SAN512B-6
In Good Condition, Full Working OrderTested2 Year Warranty

Included:

• 1 x Brocade X6-8 / IBM SAN512B-6 8-Slot Gen6 Director 8961-F08 80-1009707-01 with:
• 4 x Brocade IBM 48x 32Gb/s Fibre Channel Port Blade FC32-48 60-1003200-12
• 2 x Brocade IBM Control Processor Blade CPX6 60-1003201-12
• 2 x Brocade IBM Core Routing Blade with 16x 4x32Gbps QSFP+ Ports CR32-8 60-1003199-12
• 3 x Fan Modules 60-1003203-05
• 4 x 3000W Power Supply IBM Storage Networking SAN512B-6 and SAN256B-6 directors with Fabric Vision technology combine innovative hardware, software and built-in instrumentation to ensure high levels of operational stability and redefine application performance. Fabric Vision technology enhances visibility into the health of storage environments, delivering greater control and insight to quickly identify problems and achieve critical service level agreements (SLAs). The modular building block increases scalability to accommodate growth for large-scale enterprise operational stability, maximize application performance and increase business agility with enterprise-class b-type Gen 6 directors
• Shatter application performance barriers across 32 Gbps links and support up to 1 billion input/output operations per second (IOPS) without oversubscription
• Consolidate infrastructure with highdensity solutions built with 128 Gbps UltraScale ICL connectivity for simpler, flatter, low-latency fabrics
• Increase agility by enabling flexible architectures with concurrent Fibre Channel, FICON, non-volatile memory express NVMe, or FCoE connectivity
• Simplify end-to-end management of large-scale environments by automating monitoring and diagnostics to detect degraded application or device performance with built-in monitoring

Enhance operational stability, maximize application performance and increase business agility with enterprise-class b-type Gen 6 directors

Digital transformation is pushing mission-critical storage environments to the limit, with users expecting data to be accessible from anywhere, at any time, on any device. Faced with exponential data growth, the network must evolve to enable businesses to thrive in this new era. To meet these dynamic and growing business demands, organizations need to deploy infrastructure that can deliver the consistency, predictability and performance that legacy infrastructures cannot. These outdated architectures were not designed to support the performance requirements of evolving workloads and flash-based storage technology and in fact, an aging network will impede the performance of an all-flash data center.

A new approach to storage networking is needed to enable databases, virtual servers, desktops and critical applications, and to unlock the full capabilities of flash. By treating the network as a strategic part of a storage environment, organizations can maximize their productivity and efficiency even as they rapidly scale their environments and prepare for next generation flash storage technologies such as non-volatile memory express (NVMe) protocol over Fibre Channel.

IBM Storage Networking SAN512B-6 and SAN256B-6 directors with Fabric Vision technology combine innovative hardware, software and built-in instrumentation to ensure high levels of operational stability and redefine application performance. They provide a modular building block for increased scalability to accommodate growth for large-scale enterprise infrastructures.

Fabric Vision technology enhances visibility into the health of storage environments, delivering greater control and insight to quickly identify problems and achieve critical service level agreements (SLAs). Breakthrough 32/128 Gbps performance shatters application throughput barriers and provides support for more than 1 billion IOPS for flash-based storage workloads. And with diverse deployment options, organizations can smoothly adapt and optimize their businesses to meet next-generation storage requirements.

Gen 6 Fibre Channel

Gen 6 Fibre Channel is the purpose-built network infrastructure for mission-critical storage that delivers operational stability, breakthrough performance and increased business agility to accelerate data access, adapt to evolving requirements and drive always-on business operations. SAN512B-6 and SAN256B-6 b-type directors, with Gen 6 Fibre Channel and Fabric Vision technology with IO Insight and VM Insight, are designed to deliver outstanding 32/128 Gbps performance, data center-proven availability and seamless scalability to ensure greater consistency, predictability and performance.

IBM Fabric Vision technology

Fabric Vision technology with IO Insight and VM Insight, an extension of b-type Gen 6 Fibre Channel, provides outstanding insight and visibility across the storage network. With its powerful built-in instrumentation, management and diagnostic tools, organizations can simplify monitoring, increase availability and dramatically reduce costs.

Outstanding mainframe technology innovation and leadership

SAN512B-6 and SAN256B-6 b-type directors deliver seamless FICON connectivity for mainframe storage environments. SAN512B-6 and SAN256B-6 complement IBM Z mainframes by offering a fast, reliable and scalable FICON infrastructure, along with innovative features—all of which help deliver significant ROI. These b-type Gen 6 directors are built on mainframe leadership that includes designing the FICON standard and authoring many FICON patents.

Specification:
Systems provides up to 384 32-Gbps ports or a 512-port equivalent with 128 Gbps (4 × 32 Gbps) UltraScale ICL ports (32 Gbps × 4 QSFP ports).
• Supports E, F, D, M, SIM, AE, and EX Fibre Channel ports using 48-port 32-Gbps Fibre Channel blades:SAN512B-6 8-blade slots: 14U rack-mountable chassis; 68.58 cm (27 in.) to 78.74 cm (31 in.) and 55.88 cm (22 in.) rail kits for the four-post rack; mid-mount kit for the two-post rack.

Control processor:Redundant (active/standby) control processor architecture of 239 switches.

Certified maximum:6,000 active devices per switch; 56 switches, 19 hops in FOS fabrics; larger fabrics certified as required.

Fibre Channel blades:SAN512B-6 48 port Blade provides 48 ports of 32-Gbps Gen 6 Fibre Channel.

Extension blades:32 Gbps Extension Blade provides Fibre Channel extension (16 × 32-Gbps Fibre Channel ports) and IP extension over IP networks (16 × 1/10-GbE and 2 × 40-GbE Channel:

• 4 Gbps line speed, full duplex
• 8 Gbps line speed, full duplex
• 10 Gbps line speed, full duplex
• 16 Gbps line speed, full duplex
• 32 Gbps line speed, full of 4, 8, 16, and 32 Gbps port speeds depending on SFPs used. Speed matching between 4, 8, 16, and 32 Gbps port speeds. 10 Gbps port speeds with dedicated SFPs.

ISL trunking:

• Frame-based trunking with up to eight 32 Gbps ports per ISL trunk; up to 256 Gbps per ISL trunk.
• Exchange-based load balancing across ISLs with DPS included in Brocade FOS

UltraScale ICL linkage through connectors on the Core Routing (CR) blade

Can configure the following maximum QSFPs per trunk depending on blade type, connecting:

• Up to four 4×32 Gbps QSFP ports in a trunk group to form a 512 Gbps trunk between two Brocade CR32-4 blades. For trunks containing four or fewer QSFP ports, ports in a trunk must be located in the same port group on each blade.
• Up to four 4×32 Gbps QSFP ports in a trunk group to form a 512 Gbps trunk between a Brocade CR32-4 and CR32-8 blade. For trunks containing four or fewer QSFP ports, ports in a trunk must be located in the same port group on each blade.

A minimum of two QSFP connections are required for a trunk, and up to four 4×16 Gbps QSFP trunks between pairs of Brocade CR32-8 (CR32-4) and CR16-8 (CR16-4).

Multichassis with UltraScale ICL ports: Up to 4,608 non-blocking 32 Gbps Fibre Channel ports; UtraScale ICL ports (32 for 8-slot or 16 per 4-slot chassis, optical QSFP) connect up to nine chassis in a full mesh topology or up to 12 chassis in a core-edge topology.

UltraScale ICL bandwidth:

• 4.096 Tbps; 32 UltraScale ICL ports provide the equivalent of 128 32 Gbps ports. Each UltraScale ICL port provides 128 Gbps bandwidth over a QSFP (32 Gbps × 4) link.
• Frame-based trunking is enabled between four UltraScale ICLs. DPS distributes exchanges across all frame trunks.

Chassis bandwidth: 12.2 Tbps per chassis (384 ports×32 Gbps) data rate + 4.096 Tbps UltraScale ICL bandwidth (32×128 Gbps)

Slot bandwidth: 1,536 Gbps (line rate)

Switch latency:

• SAN512B-6 48 port blade at Gen 6 32 Gbps speeds: <900 nanoseconds (ns), including FEC; any-port-to-any-port local switching and 2.7 miscrosecond (µsec) blade to blade at 32 Gbps, cut-through routing.
• IBM b-type Gen 6 32 Gbps Extension Blade, Fibre Channel to Fibre Channel: <900 ns (including FEC) and 2.7 µsec any-port-to-any-port at 32 Gbps, cut-through routing.

Maximum frame size: 2112-byte payload

Frame buffers: 15,000 per switching ASIC

Classes of service: Class 2, Class 3, Class F (inter-switch frames)

Fibre Channel port types:

• SAN512B-6 48-port blade: F_Port, E_Port, EX_Port, M_Port, SIM, and D_Port.
• IBM b-type Gen 6 Gbps Extension Blade: F_Port, E_Port, and EX_Port on FC, and VE_Port on GbE.
• NOTE: Self-discovery is based on switch type (U_Port) with an optional port-type control.

Data traffic types:Fabric switches supporting unicast, multicast (255 groups), and broadcast.

Media types:

• SAN512B-6 48 port blade: Supports hot-pluggable Fibre Channel SFP+ at 32 Gbps SWL/LWL and SFP+ at 16 Gbps SWL/LWL/ELWL, 10 Gbps SWL/LWL SFP.
• IBM b-type Gen 6 Extension Blade: Supports hot-pluggable Fibre Channel SFP28 at 32 Gbps SWL/LWL; SFP+ at 16 Gbps SWL/LWL/ELWL; SFP at 10 Gbps FC SWL/LWL and Ethernet SFP+ at 1 GbE copper, 1 GbE 1000BASE-SX/LX/CWDM, SFP+ at 10 GbE SR/LR; SFP+ at 10 GbE tunable DWDM 80 km, and QSFP at 40 GbE SR4/LR4/ER4.
• CR blades, CR32-4 and CR32-8: Support hot-pluggable Fibre Channel QSFP at 4×32 Gbps SWL, 4×16 Gbps SWL, and 4×16 Gbps 2 km QSFP for ICL connections.

USB: One USB port per control processor for firmware download, support save, and configuration upload or download

Fabric services:

• Adaptive Networking (Traffic Isolation, QoS)
• BB credit recovery
• Advanced Zoning (default zoning, port/worldwide name (WWN) zoning, peer zoning, target-driven zoning, broadcast zoning)
• Dynamic path selection (DPS)
• Extended Fabrics
• FDMI; FICON CUP
• Flow Vision
• Frame Redirection
• Fabric Shortest Path First (FSPF)
• Internet Protocol over Fibre Channel (IPFC)
• ISL Trunking
• Management Server
• Monitoring and Alerting Policy Suite (MAPS)
• N_Port Trunking
• N_Port ID Virtualization (NPIV)
• Network Time Protocol (NTP) v3
• Port Fencing
• Registered state change notification (RSCN)
• Reliable Commit Service (RCS)
• Simple Name Server (SNS)
• Syslog
• Virtual Fabrics (Logical Switch, Logical Fabric)

Extension:Supports DWDM, CWDM, and FC-SONET devices; Fibre Channel, in-flight compression (LZO), and encryption (AES-GCM-256); BB credit recovery; FCIP, IP Extension, Adaptive Rate Limiting (ARL), data compression, Fast Write, read/write Tape Pipelining, QoS.

FICON:FICON cascading, support for lossless DLS, FICON CUP, and Advanced Accelerator for FICON (IBM z/OS Global Mirror and read/write Tape Pipelining).

System Components

• Fibre Channel ports:Up to 384 32-Gbps ports, universal (E_Port, F_Port, EX_Port, M_Port, D_Port, SIM Port, FICON)
• Classes of service: Class 2, Class 3, Class F (inter-switch frames)
• ANSI Fibre Channel protocol: FC-PH (Fibre Channel Physical and Signaling Interface standard)
• Fabric initialization: Complies with FC-SW 5.0
• Port to port latency:
• Local switching: 900 ns
• Blade to blade: 2.7 μs
• Switching capacity: An aggregate switching capacity of 13.5 billion frames per second (for Class 2, Class 3, and Class F frames for a 384-port chassis)

High Availability

• Architecture: Non-blocking shared memory; passive backplane; redundant active/passive control processor; redundant active/active core switching blades; redundant WWN cards
• Chassis power:
• Four power supplies required for AC Low Line (100 VAC to 120 VAC).
• Two power supplies required for AC High Line (200 VAC to 240 VAC).
• Device includes three PSUs or empty (3 for 2+1 redundancy). Two provide system power, but four must be installed to provide power efficiency and 2+2 three fan tray assemblies. A failure condition is one failed fan from any fan tray. Each assembly contains two fans for a total of six. The system requires five of six functioning fans for operation in SAN512B-6. One fan tray assembly can be hot-swapped and should be replaced immediately in the event of a failure.
• Airflow: Non-port-side intake to port-side exhaust or port-side intake to non-port-side exhaust options are available.
• Solution availability:Designed to provide 99.999% uptime capabilities; hot-pluggable redundant power supplies, fans, WWN cards, processors, core switching, port blades, and optics; online diagnostics; nondisruptive firmware download and Management software:
• HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH
• Auditing, Syslog
• Advanced Web Tools, IBM Network Advisor SAN Enterprise, or IBM Network Advisor SAN Professional Plus
• Command-line interface (CLI)
• SMI-S compliant; RESTful API
• Trial licenses for add-on (between switches and end devices)
• FCAP switch authentication
• FIPS 140-2 L2-compliant
• HTTPS, IPSec, IP filtering
• LDAP with IPv6
• OpenLDAP
• Port role-based access control (RBAC)
• Secure Copy Protocol (SCP)
• Secure RPC
• SFTP
• SSH v2, SSL
• Switch Binding
• TACACS+, Trusted Switch
• Management access:
• 10/100/1000 Ethernet (RJ-45) per control processor, in-band over Fibre Channel
• Serial port (RJ-45) and one USB per control processor integration enabled through IBM Network Insight for IO monitoring
• ClearLink optics and cable diagnostics, including electrical/optical loopback, link flow generator
• POST and embedded online/offline diagnostics, including environmental monitoring, FC ping and Pathinfo (FC traceroute), flow mirroring, frame viewer, nondisruptive daemon restart, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection slots: 14U rack-mountable chassis; 27 in. to 31 in. and 22 in. rail kits for the four-post rack; mid-mount kit for the two-post rack
• Mounting: Rack-mountable in a standard 19-inch EIA 61.23 cm (24.11 in., 14U)
• Width: 43.74 cm (17.23 in.)
• Depth: 61.04 cm (24.04 in.)
• System weight:
• 35.61 kg (78.5 lb) for chassis
• 145.8 kg (321.5 lb) for 384-port configuration, fully 0°C to 40°C (32°F to 104°F)
• Non-operating: –25°C to 70°C (–13°F to humidity: 5% to 93% RH non-condensing at 40°C (104°F) with a maximum gradient of 10% per hour
• Non-operating humidity: 10% to 93% RH non-condensing at 70°C (158°F)
• Altitude: Up to 3,000 meters (9,842 10 g, 11 ms, half sine wave
• Non-operating: 20 g, 11 ms, half sine 5 Hz to 10 Hz @ +5 db/Oct; 10 Hz to 200 Hz @ 0.0005 Grms; 200 Hz to 500 Hz @ –5 db/Oct; scale 0.05 Grms
• Non-operating: 3 Hz to 10 Hz @ +5 db/Oct; 10 Hz to 200 Hz @ 0.0065 Grms; 200 Hz to 500 Hz @ –5db/Oct; scale 1.12 Grms
• Heat dissipation:
• 384-port configuration: Typical: 8,836 BTU/hr; Max: 14,485 BTU/hr Power consumed: Typical: 2,589 W; Max: 4,244 W
• Note: Input power is at 200 VAC with full PSU power range:
• Input Voltage:
• Standard AC input

• Range: 85 VAC to 264 VAC Auto-volt
• Nominal: 100 VAC to 240 VAC
• Power:
• 85 to 132 VAC: 1,450 W
• 180 to 264 VAC: 2,870 W
• In-rush current: 35 Amps maximum, peak
• Frequency: 50 Hz to 60 Hz (Nominal: 50 Hz to 60 Hz)
Boot Log:

Made on:Fri Mar 11 21:53:30 2022
Flash:Thu Jun 2 09:57:40 Router:OFF
HIF Mode:OFF
Allow XISL Use: OFF
LS Attributes:[FID: 128, Base Switch: No, Default Switch: Yes, Ficon Switch: No, Address Mode 0]
Index Slot Port Address 030010040--N32No_ModuleFC
131010140--N32No_ModuleFC
232010240--N32No_ModuleFC
333010340--N32No_ModuleFC
434010440--N32No_ModuleFC
535010540--N32No_ModuleFC
636010640--N32No_ModuleFC
737010740--N32No_ModuleFC
838010840--N32No_ModuleFC
Family:X6-8
Chassis Backplane Revision: 0SW BLADESlot: 3
Header Version:2
Power Consume Factor:-245W
Power Usage:-141W
Factory Part Num:60-1003200-12
Factory Serial 10Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysSW BLADESlot: 4
Header Version:2
Power Consume Factor:-245W
Power Usage:-141W
Factory Part Num:60-1003200-12
Factory Serial Num:DYJ3232N0BY
Manufacture:Day: 16Month:8Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysSW BLADESlot: 5
Header Version:2
Power Consume Factor:-245W
Power Usage:-141W
Factory Part Num:60-1003200-12
Factory Serial Num:DYJ3229N060
Manufacture:Day: 30Month:7Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysSW BLADESlot: 6
Header Version:2
Power Consume Factor:-245W
Power Usage:-142W
Factory Part Num:60-1003200-12
Factory Serial Num:DYJ3234N01F
Manufacture:Day: 25Month:8Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysCP BLADESlot: 1
Header Version:2
Power Consume Factor:-50W
Power Usage:-47W
Factory Part Num:60-1003201-12
Factory Serial Num:DYK3220N042
Manufacture:Day: 23Month:5Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1757 days
Time Awake:0 days
ID:BROCADECP BLADESlot: 2
Header Version:2
Power Consume Factor:-50W
Power Usage:-45W
Factory Part Num:60-1003201-12
Factory Serial Num:DYK3219N02A
Manufacture:Day: 19Month:5Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1757 days
Time Awake:0 days
ID:BROCADECORE BLADESlot: 7
Header Version:2
Power Consume Factor:-450W
Power Usage:-253W
Factory Part Num:60-1003199-12
Factory Serial 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysCORE BLADESlot: 8
Header Version:2
Power Consume Factor:-450W
Power Usage:-251W
Factory Part Num:60-1003199-12
Factory Serial 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysPOWER SUPPLYUnit: 1
Power Source:AC
PS Voltage input:237.00 V
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:2870W
Factory Part Num:23-0000161-01
Factory Serial Num:DUC2M08N4NP
Manufacture:Day: 23Month:2Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysPOWER SUPPLYUnit: 2
Power Source:AC
PS Voltage input:237.50 V
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:2870W
Factory Part Num:23-0000161-01
Factory Serial Num:DUC2M08N4GW
Manufacture:Day: 21Month:2Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysPOWER SUPPLYUnit: 3
Power Source:AC
PS Voltage input:236.00 V
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:2870W
Factory Part Num:23-0000161-01
Factory Serial Num:DUC2M08N4NG
Manufacture:Day: 23Month:2Year: 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysPOWER SUPPLYUnit: 4
Power Source:AC
PS Voltage input:235.50 V
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:2870W
Factory Part Num:23-0000161-01
Factory Serial 2017
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 daysFANUnit: 1
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:-300W
Factory Part Num:60-1003203-05
Factory Serial 17
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 days
ID:BROCADEFANUnit: 2
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:-300W
Factory Part Num:60-1003203-05
Factory Serial 17
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 days
ID:BROCADEFANUnit: 3
Fan Direction:Non-portside Intake
Header Version:2
Power Consume Factor:-300W
Factory Part Num:60-1003203-05
Factory Serial Num:DYL3028N00Z
Manufacture:Day: 18Month:7Year: 17
Update:Day:9Month:3Year: 2023
Time Alive:1758 days
Time Awake:0 days
ID:BROCADEWWNUnit: 1
System AirFlow:Non-portside Intake
Header Version:2
Power Consume Factor:-1W
Factory Part Num:60-1003194-02
Factory Serial 17
Update:Day:0Month:0Year: 0
Time Alive:1758 days
Time Awake:0 days
ID:IBM0000CA
Part Num:0089610000F08
Serial Num:10558EW
Generation Num:6WWNUnit: 2
System AirFlow:Non-portside Intake
Header Version:2
Power Consume Factor:-1W
Factory Part Num:60-1003194-02
Factory Serial 17
Update:Day:0Month:0Year: 0
Time Alive:1758 days
Time Awake:0 days
Generation Num:6Chassis Factory Serial Num: BLADE175ENABLED
2CP BLADE175ENABLED
3SW BLADE178ENABLED
4SW BLADE178ENABLED
5SW BLADE178ENABLED
6SW BLADE178ENABLED
7CORE BLADE177ENABLED
8CORE Supply #1 is OK Temperature is 28.00 Supply #2 is OK Temperature is 25.00 Supply #3 is OK Temperature is 27.00 Supply #4 is OK Temperature is 26.00 align=\"left\" style=\"font-family: Arial;\">CS 309672 309673 309674 crds dup psu dup fans dup dup .co.uk
CS309675 a cbl mgmt crds dup psu dup fans dup dup .co.uk
