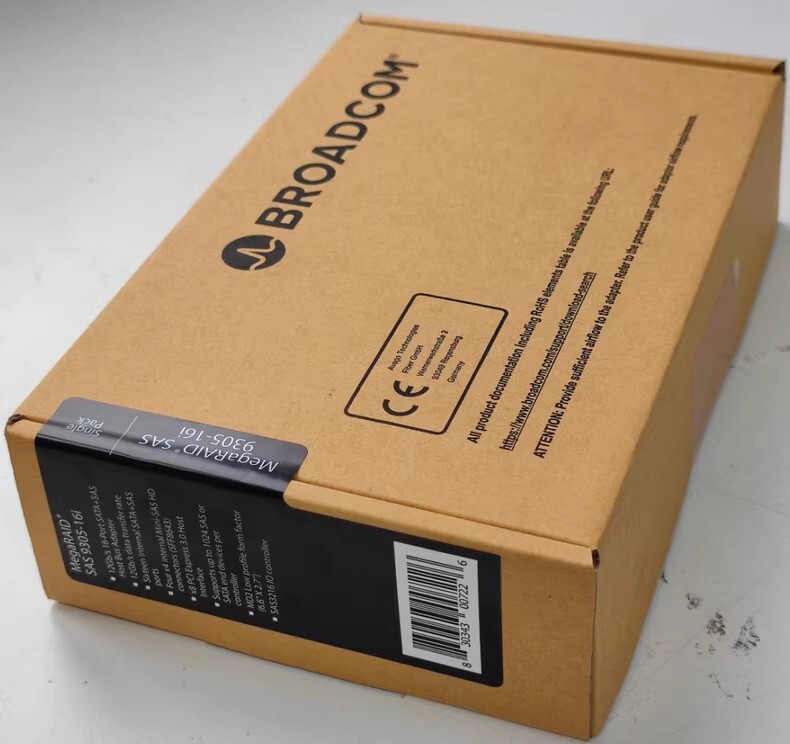

Broadcom AVAGO LSI 9305-16i 12Gbp SATA/SAS HBA Host Bus Controller RAID PCIe x8The PCI Express (PCIe)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the Avago 12Gb/s SAS HBA, provides high-performance internal storage connectivity for servers and workstations. The 12Gb/s SAS HBA provides sixteen lanes of 12Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance. The low-profile design of the SAS HBA includes a full-height mounting bracket and a low-profile mounting bracket that create a universal fit for any server. The 12Gb/s SAS HBA is developed on the Fusion-MPT-based SAS 3216 controller that integrates the latest enhancements in PCIe 3.0 technology and 12Gb/s SAS technology.Specifications

• Product: SAS 9305-16i
• MPN: 03-25703-00
• I/O Controller: SAS 3224/ Fusion MPT 2.5
• Port Count: 16-port, internal
• Connectors: Mini-SAS HD SFF8643 Four (x4)
• Storage Connectivity Data Transfer Rates: 12Gb/s SAS 3.0 Compliant
• SAS Bandwidth: 1200 MB/s per port (each direction)
• Port Configurations
• 16 ea, x1 ports (individual drives)
• 4 ea, x4 wide ports
• 2 ea, x8 wide ports
• Host Bus: x8 lane, PCIe 3.0
• PCI Data Burst Transfer Rates: Half Duplex x8, PCIe 3.0, 8000 MB/s
• Form Factor: Low Profile
• Physical Dimensions: 2.7” x 6.6”
• Brackets: Low Profile & Full Height
• Cable Support: Passive Copper
• LED Management: Reference SFF-8485 (SGPIO) compliant
• Operating Voltage: +12V +/-8%; 3.3V +/-9%
• PCI Power (Nominal): Typical: 16.2W
• Device Support: 1024 Non-RAID devices
• Environmental
• Operating: 0°C to 55°C
• Storage: -45°C to 105°C
• 5 to 90% Non-condensing
• Airflow: 200 LFM
• MTBF: >3,500,000 hours at 40°C
• Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/ IEC/UL 60950; RoHS; WEEE
• OS Support: Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Normally your items will be sent out within 1-5 business days after the payment cleared.2. We ship package to your registered address only.3. Items will be shipped from China.4. Delivery time depends on destination and other factors.5. If you don't get your package on time, please contact us first, we will help you to resolve it.
