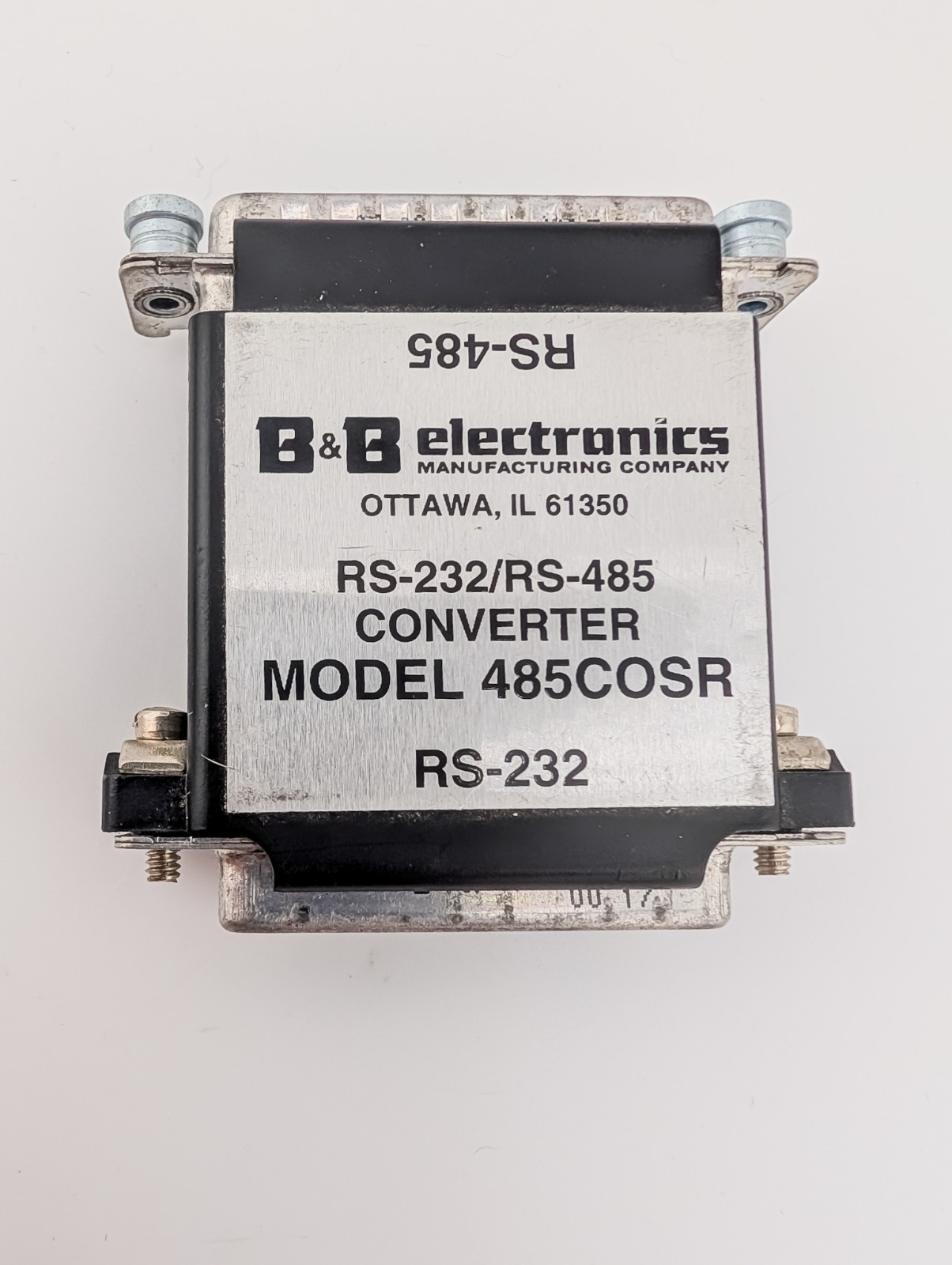

B&B Electronics 485COSR RS-232 to RS-485 Serial Converter USED B&B ELECTRONICS MODEL 485COSR.
Listing includes the converter and only the accessories shown in the photos. A 12 VDC power supply is required for operation.
Genuine B&B Electronics 485COSR serial interface converter, also sold under the later B+B SmartWorx / Advantech BB-485COSR designation. This inline converter changes unbalanced RS-232 transmit and receive signals to balanced RS-485 for industrial controls, instrumentation, data acquisition, and legacy serial communications.
The converter supports either 2-wire half-duplex or 4-wire full-duplex RS-485 communication. It provides automatic send-data control, so no special software control of handshake lines is required for normal operation.
Product Specifications Manufacturer B&B Electronics Current Brand / Cross-Reference B+B SmartWorx / Advantech BB-485COSR Model / MPN 485COSR Product Type RS-232 to RS-485 serial converter RS-232 Connector DB25 female RS-485 Connector DB25 male Operating Modes 2-wire half-duplex or 4-wire full-duplex Maximum Data Rate 115.2 kbps Maximum Recommended Distance Up to 4,000 ft / 1.2 km, application dependent Send-Data Control Automatic; no special software required Biasing Resistors 4.7 kOhm Built-In Termination None Power Requirement 12 VDC external power supply required Power Connector 2.5 mm DC barrel jack Mounting Inline / free hanging Approximate Dimensions 2.1 × 2.4 × 0.6 in (5.4 × 6.2 × 1.5 cm) Operating Temperature 32°F to 158°F (0°C to 70°C) Operating Humidity 0–95% non-condensing DigiKey Part Number BB-485COSR-ND Mouser Part Number 600-485COSR Typical Applications
Industrial automation and machine controls - Instrumentation and data acquisition
- Legacy computers and serial equipment
- Long-distance RS-485 communication links
- Two-wire multidrop or four-wire full-duplex networks
Condition
Used item with normal cosmetic wear from prior use and storage. Please review all photos for the exact physical condition and included accessories. No cables, manuals, mounting hardware, or power supply are included unless they are specifically shown in the listing photos.
Power-supply note: This model is not port powered. It requires a compatible regulated 12 VDC supply with a 2.5 mm plug.
Compatibility note: Verify the DB25 connector genders, RS-485 wiring mode, baud rate, pin assignments, and power requirements for your application before purchasing.
You will receive the B&B Electronics 485COSR converter shown in the listing photos.
