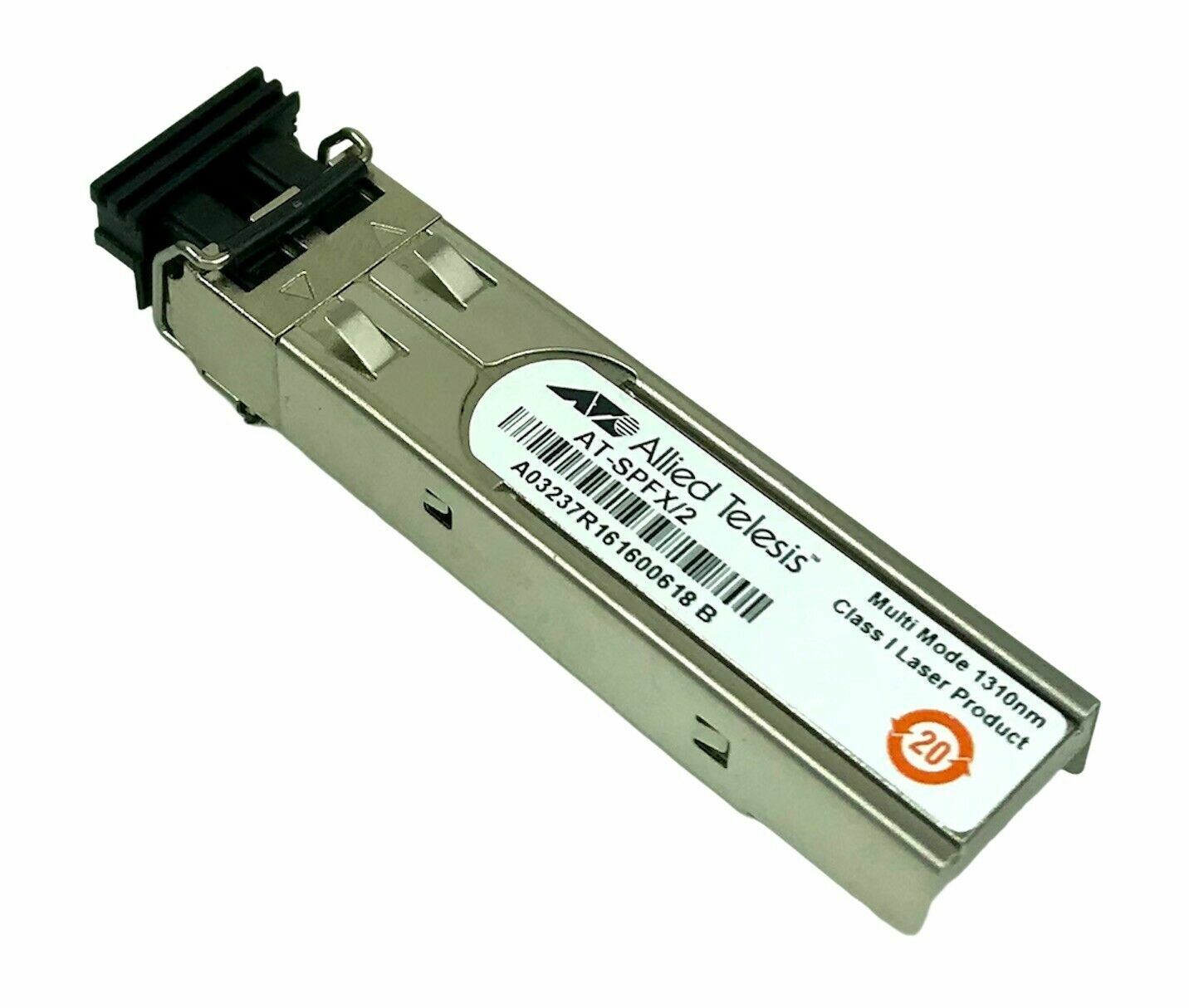

Allied Telesis 100Mbps SPFX/2
Small Form-Factor Pluggable ModulesThe Allied Telesis 100Mbps SP Series offers the latest industry standard inflexible, full-duplex, Fast Ethernet connectivity. These hot-swappableinterfaces simply plug into the SFP slot on all SFP-compatible products.Configuration can be optimized to meet a wide variety of distance and Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offersshort-haul, long-haul, Bi-Directional (offeri), and Copper solutions. Thisflexibility allows network managers to easily extend network distance andbandwidth. Using an SFP offeri transceiver can upgrade transmission capacity on atypical network—without installing new fibers—by utilizing a single fiber forboth the send and receive signals.Compatibility
SP 100Mbps Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fullyadhere to industry standard networking regulations. This allows the SP 100MbpsSeries to be used with other MSA-compliant platforms that support SFP uplinkconnectionsKey Features

• Compact size
• Flexible architecture
• Plug and Play ease-of-use
• Self-locking mechanism
• MSA class="MsoNormal" style="font-family: Arial; margin-bottom: 0.0001pt; line-height: normal;">
  • PRODUCT: SPFX/2
  • FIBER TYPE: MMF
  • CONNECTOR TYPE: LC
  • MAXIMUM DISTANCE: 2 km
  • WAVELENGTHTx/Rx (nm): 1310
  • TRANSMIT (dBm):
  • DDM*: -
  • MIN: -20
  • MAX: -14
  • RECEIVE SENSITIVITY (dBm): -31
  • POWER BUDGET (dBm): 11
  • OVERLOAD(dBm): 0
  • OPERATING TEMPERATURE: 0°C to 70°C (32°F to 158°F)

  MMF = Multi Mode Fiber, SMF = Single Mode Fiber
  *Digital Diagnostics Monitoring
  Standard Data Rates Supported: Fast EthernetEnvironmental Specifications

  • Operating temperature: 0°C to 70°C (32°F to 158°F)
  • Operating humidity: 0% to 85% non-condensing
  • Storage temperature: -40°C to 85°C (-40°F to 185°F)
  • Storage humidity: 0% to 80% non
