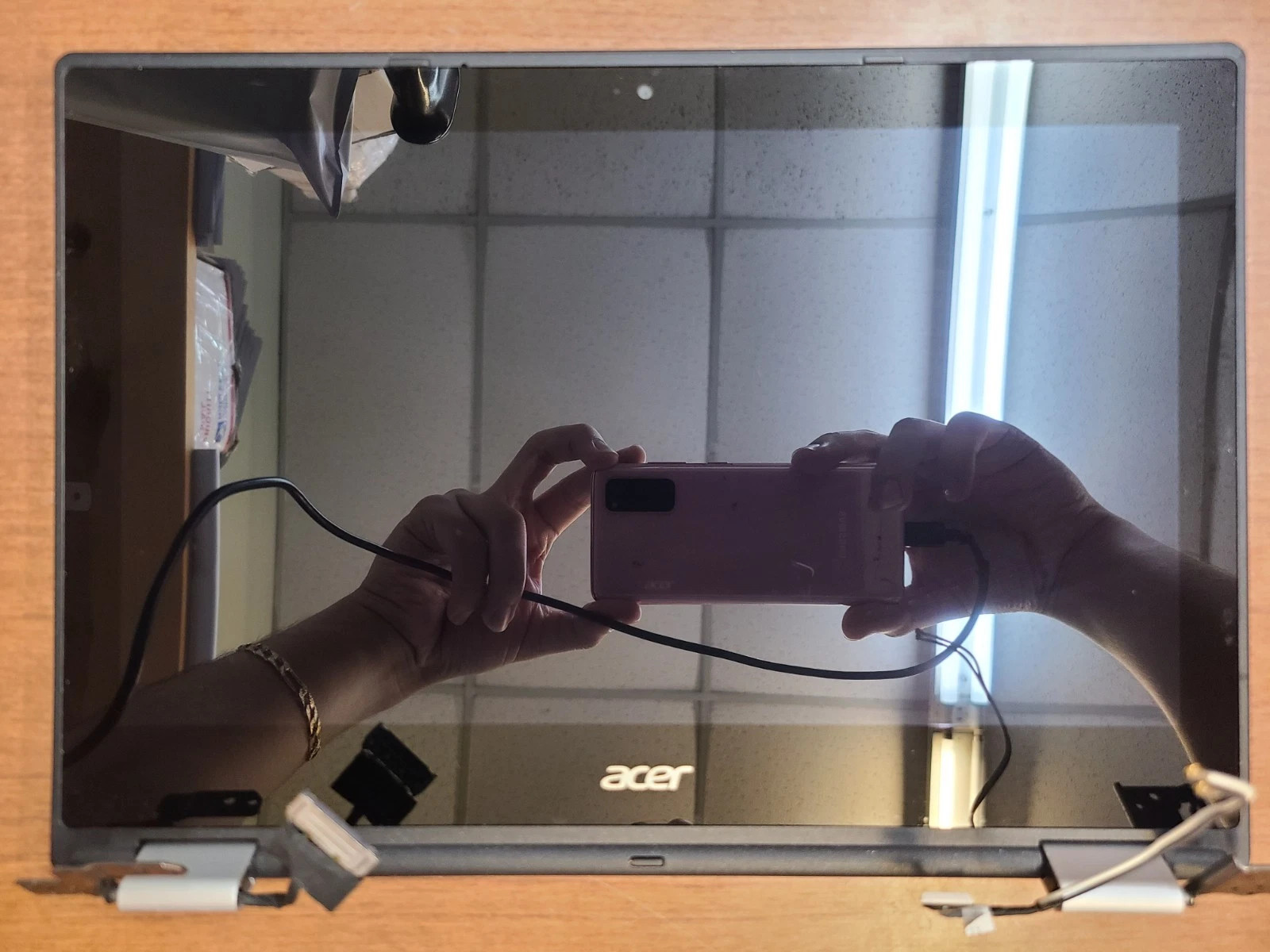

QUICK MATRIX SHEETParameterIndustrial SpecificationAcer OEM Part Numbers6M.G55N7.004 / 6M.G55N7.001 / KL.1169G.015 / KL.1169G.001Physical Size Class11.6 Inch Diagonal Class Convertible Laptop AssemblyNative ResolutionWXGA HD (1366 x 768 pixels) @ 60HzDisplay Core TechIPS Matrix (Vivid Colors, 178 Wide View Horizon)Touch Screen IntegrationMulti-Touch Capacitive Digitizer Glass Layer EmbeddedSignal Interface SloteDP 40-Pin Digital Ribbon Slot (Location: Bottom Right, Rear View)Pre-Assembled BezelFinished Matte Black Plastic Front Bezel Edge Frame Ring Included 💻 EXACT COMPATIBILITY MATRIXThis complete factory-bonded bezel screen assembly drops directly into the front upper clamshell housing slots of the following specific 11.6" Acer Chromebook series: - Acer Chromebook R11 Convertible Series：CB5-132T, CB5-132T-C1LK, CB5-132T-C32M, CB5-132T-C8ZW, CB5-132T-C971
- Acer Chromebook 11 Touch Series：C738T, C738T-C44Z, C738T-C5R6, C738T-C727, C738T-C8Q2
- Regulatory Factory Chassis Check：Guaranteed 100% direct fit if your laptop back cover sticker prints Acer Model Number: N15Q8
- Official Cross-Part Number Match：Perfectly replaces inventory marked with Acer spare parts codes: 6M.G55N7.004, 6M.G55N7.001, KL.1169G.015, KL.1169G.001, 6M.G55N7.005.
🛑 CRITICAL TECH CHECKLIST - 1. Video Signal Lane Lock (eDP 40-Pin)：Driven strictly via an eDP 40-Pin touch digital interface connector layout. Even though it is an 11.6-inch screen, it is completely incompatible with standard non-touch Chromebook configurations (such as CB3-111 or CB3-131 series) which utilize 30-pin cables.
- 2. Factory Chassis Stamp Verification：Please flip your laptop over and examine the small regulatory text on the back plastic shell. Ensure it explicitly states Model: N15Q8. If your device displays a different chassis layout number, the outer frame perimeter tabs will not align.
- 3. Circuit Power Safety Lock：Fully shut down the ChromeOS system operating platform, pull out the AC wall charger adapter brick, and completely disconnect the internal lithium battery cable from the motherboard terminal port before linking the display ribbon. Hot-swapping will instantly short-circuit the sensitive logic chips or blow the backlight micro-fuses.
📦 LOGISTICS PROTECTION STANDARD - Content：1 x Complete 11.6" Full HD Touch Screen Panel Assembly Pre-Bonded inside Black Front Bezel Frame (Acer P/N 6M.G55N7.004 / KL.1169G.015).
 |
|
