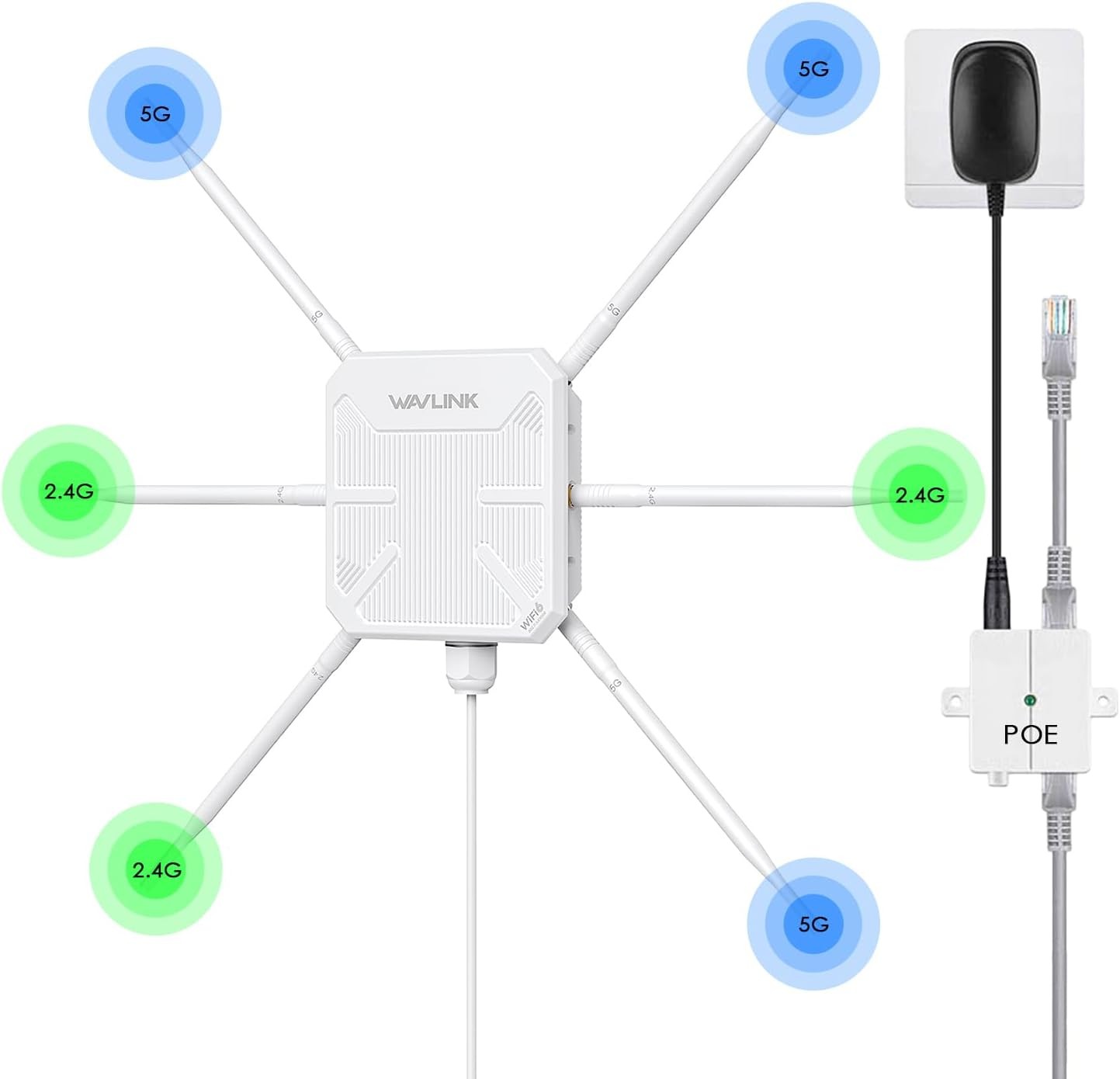

WAVLINK · OUTDOOR WiFi 6 SERIESAX3000 Outdoor WiFi 6 Base Station

IP67 waterproof · Dual-band 3000Mbps · PoE Powered · One-Click Mesh
Built for yards, farms, campsites, RV parks, marinas and any harsh outdoor environment.

3000Mbps Dual-BandIP67Waterproof3KMMax Wireless Range6Working Modes AERIAL HD9S-AX3000 6 × 7dBi Omnidirectional Antennas AERIAL HD9-AX3000 4 × 8dBi Fiberglass Antennas AERIAL HD10-AX3000 4 × 12dBi Built-in Directional01AERIAL HD9S-AX3000 WiFi 6

6 × 7dBi Omnidirectional Antennas · Outdoor Mesh Extender / AP / Repeater / Router

Key FeaturesDesigned for Harsh Outdoor Conditions

IP67-rated waterproof housing ensures continued operation in harsh outdoor environments or climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design keep the connection stable.
Note: The PoE part of the router is not waterproof.

Enjoy True WiFi 6 Speed

Next-generation WiFi compliant with IEEE 802.11 ax/ac/a/b/g/n. Dual-band maximum speed up to 5GHz 2402Mbps + 2.4GHz 573Mbps, avoiding wireless interference & congestion. Enjoy HD videos and smooth gaming even outdoors.

Seamless WiFi Roaming

The 6 × 7dBi omnidirectional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Everything Mesh technology brings more device connections with one click, greatly expanding coverage and eliminating every network dead zone.

Multiple Modes, Flexible Use

Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes. Router/AP mode converts wired connections into wireless networks, while under Mesh mode you enjoy seamless WiFi with a single network name and password.

Powered by PoE & Flexible Installation

Supports 802.3af / 802.3at / 48V PoE Power over Ethernet with the included PoE adapter. The mounting bracket design makes deployment easy — mount it on poles or walls in minutes.

Plug & Play Outdoor Coverage

A compact 552g weatherproof unit with a 54V power adapter and PoE converter included — everything you need for a fast outdoor WiFi deployment straight out of the box.

BackyardFarmCampsiteRV HD9S-AX3000 WiFi 6(6x 7dBi Antennas) Product Size17 × 17.3 × 5.1cm / 6.7 × 6.8 × 2inPoE Converter Size4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9inCable LengthEthernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2inProduct Weight552g / 19.5ozStandardIEEE 802.11 ax/ac/a/n/g/bFrequency Band / Speed2.4GHz (573Mbps) + 5GHz (2402Mbps)Wireless SecurityWPA2-PSK, WPA2/WPA3-MIXAntennas6 × 7dBi Omnidirectional AntennasLED IndicatorPAIR/RESET — Blue; PoE Converter Status — GreenIn the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point / Mesh Extender / Repeater / Router
• 6 × 7dBi Antennas
• 4 × Plastic Cable Ties
• 1 × Main Body Holder
• 1 × Wrench
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable
• 1 × PWM M3×5×6MM Screw
• 6 × KA M3×20×5.2MM Screws
• 6 × Φ6.5×25MM Screw Plugs
• 1 × Quick Start Guide

Warm Tips⚠ Please read before installation

• ① The PoE converter is not waterproof — please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
• ③ Under Mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ④ Real product performance may vary in accordance with different environmental conditions.

02AERIAL HD9-AX3000 WiFi 6

4 × 8dBi Fiberglass Omnidirectional Antennas · Outdoor Mesh Extender / AP / Repeater / Router

Key FeaturesDesigned for Harsh Outdoor Conditions

Equipped with an IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it works normally in rain, snow, wind and thunder. Fiberglass-tube high-gain antennas withstand strong wind and corrosion while boosting WiFi coverage.

Enjoy True WiFi 6 Speed

Next-generation WiFi compliant with IEEE 802.11 ax/ac/a/b/g/n. Dual-band maximum speed up to 5GHz 2402Mbps + 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed.

Optional PoE Power Supply

Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable — install it outdoors where no power outlet is available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable, max 100m / 328ft.

Seamless WiFi Roaming

The 4 × 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Mesh technology expands the coverage with one click and eliminates every network dead zone.

Multiple Modes, Flexible Use

Supports Mesh, AP, Router, Repeater, AP+Repeater and more. Router/AP mode converts wired connections into wireless networks, while Mesh mode lets you enjoy seamless WiFi with a single network name and password.

Built for Wind & Corrosion

Fiberglass-tube antennas resist strong wind and long-term corrosion, making the HD9 the ideal choice for coastal, farm and rooftop deployments where durability matters most.

Coastal AreaFarmlandRooftopParking LotResortConstruction SiteSpecificationsModelAERIAL HD9-AX3000 WiFi 6(4x 8dBi Antennas) Product Size (without antennas)24 × 24 × 7cm / 9.4 × 9.4 × 2.8inPoE Converter Size4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9inCable LengthAntennas — 40cm / 15.7in; Ethernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2inProduct Weight (without antennas)1109g / 39.1ozStandardIEEE 802.11 ax/ac/a/n/g/bFrequency Band / Speed2.4GHz (573Mbps) + 5GHz (2402Mbps)Wireless SecurityWPA2-PSK, WPA2/WPA3-MIXAntennas4 × 8dBi Omnidirectional AntennasLED IndicatorPAIR/RESET — Blue; PoE Converter Status — GreenIn the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point / Extender / Repeater / Router
• 4 × Omni Antennas
• 4 × Cable Ties
• 1 × Ethernet Cable Connectors
• 1 × Quick Installation Guide
• 1 × Wrench
• 2 × Silicone Pads
• Several Screws
• Passive PoE Optional:
• 1 × 54V Power Adapter
• 1 × PoE Converter
• 1 × Ethernet Cable

Warm Tips⚠ Please read before installation

• ① The PoE converter is not waterproof — please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
• ③ Please install the product 2–3 meters above the ground for better performance.
• ④ Under Mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (latest firmware required) and WN573HX3.

03AERIAL HD10-AX3000 WiFi 6

4 × 12dBi Built-in Directional Antennas · Long-Range Outdoor WiFi 6 Bridge

Key FeaturesDesigned for Harsh Outdoor Conditions

IP67-rated waterproof housing ensures continued operation in harsh outdoor environments or climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure a stable connection.
Note: The PoE part of the router is not waterproof.

Enjoy True WiFi 6 Speed

Next-generation WiFi compliant with IEEE 802.11 ax/ac/a/b/g/n. Dual-band maximum speed up to 5GHz 2402Mbps + 2.4GHz 573Mbps, avoiding interference & congestion and offering lightning-fast Internet speed.

3KM Wireless Data Transmission

Specially designed for long-distance wireless data transmission over 3km / 1.9 miles (paired PtP or PtMP only, tested in a barrier-free field). Built-in 12dBi directional antennas significantly improve signal transmission and reception performance.

Optional PoE Power Supply

Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable — install outdoors where no power outlet is available.
Note: The PoE converter is not waterproof. Please use CAT5E or above cable, max 100m / 328ft.

Seamless WiFi Roaming

The built-in 4 × 12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Everything Mesh technology expands coverage with one click and eliminates every network dead zone.

Multiple Modes, Flexible Use

Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes. Router/AP mode converts wired connections into wireless networks, while under Mesh mode you enjoy seamless WiFi with a single network name and BridgeFarm & RanchWarehouse LinkRemote SiteSpecificationsModelAERIAL HD10-AX3000 WiFi 6(4x 12dBi Antennas-Built-in) Product Size24 × 24 × 7cm / 9.4 × 9.4 × 2.8inPoE Converter Size4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9inCable LengthEthernet Cable — 100cm / 39.4in; Power Adapter Cable — 130cm / 51.2inProduct Weight1050g / 37ozStandardIEEE 802.11 ax/ac/a/n/g/bFrequency Band / Speed2.4GHz (573Mbps) + 5GHz (2402Mbps)Wireless SecurityWPA2-PSK, WPA2/WPA3-MIXAntennas4 × 12dBi Built-in Directional AntennasMax Transmission DistanceUp to 3km / 1.9 miles (PtP / PtMP pair, barrier-free field)LED IndicatorPAIR/RESET — Blue; PoE Converter Status — GreenIn the Box

• 1 × AX3000 WiFi 6 Outdoor Access Point / Mesh Extender / Repeater / Router
• 1 × 54V Power Adapter
• 4 × Cable Ties
• 1 × PoE Converter
• 2 × Silicone Pads
• 1 × Ethernet Cable
• 1 × Main Body Holder
• 1 × PWM M4×8×8MM Screw
• 1 × Wrench
• 6 × KA M4×25×6MM Screws
• 1 × Quick Start Guide
• 6 × Φ8×25MM Screw Plugs

Warm Tips⚠ Please read before installation

• ① The PoE converter is not waterproof — please install it indoors.
• ② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
• ③ Please install the product 2–3 meters above the ground for better performance.
• ④ Under Mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
• ⑤ Real product performance may vary in accordance with different environmental conditions.

Which One Is Right for You?CompareAERIAL HD9S-AX3000 WiFi 6(6x 7dBi Antennas) AERIAL HD9-AX3000 WiFi 6(4x 8dBi Antennas) AERIAL HD10-AX3000 WiFi 6(4x 12dBi Antennas-Built-in) Antennas6 × 7dBi Omnidirectional4 × 8dBi Omnidirectional (Fiberglass)4 × 12dBi Built-in DirectionalWiFi Standard802.11 ax/ac/a/n/g/b802.11 ax/ac/a/n/g/b802.11 ax/ac/a/n/g/bMax Speed5GHz 2402Mbps + 2.4GHz 573Mbps5GHz 2402Mbps + 2.4GHz 573Mbps5GHz 2402Mbps + 2.4GHz 573MbpsWaterproofIP67IP67 + 15kV ESD + 6kV LightningIP67 + Lightning ProtectionPoE Power802.3af/at / 48V PoE802.3af/at Active + Passive PoE802.3af/at Active + Passive PoEMax RangeStandard CoverageStandard CoverageUp to 3km (PtP / PtMP)Size17 × 17.3 × 5.1cm24 × 24 × 7cm24 × 24 × 7cmWeight552g / 19.5oz1109g / 39.1oz1050g / 37ozBest ForAll-round outdoor coverageWindy & corrosive environmentsLong-distance wireless bridgingWhy Choose the WAVLINK Outdoor WiFi 6 Series?

Engineered for the outdoors — stable, fast and built to last.

IP67 WeatherproofRain, snow, wind and thunder — continuous operation in any climate.WiFi 6 AX3000Dual-band 2402Mbps + 573Mbps with lower latency and less congestion.PoE PoweredOne Ethernet cable for both data and power — no outlet needed outdoors.One-Click MeshExpand coverage seamlessly with a single network name and password. Note: The PoE converter is not waterproof — please install it indoors. Use CAT5E or above cable, max 100m / 328ft.
Actual performance may vary depending on environmental conditions.
