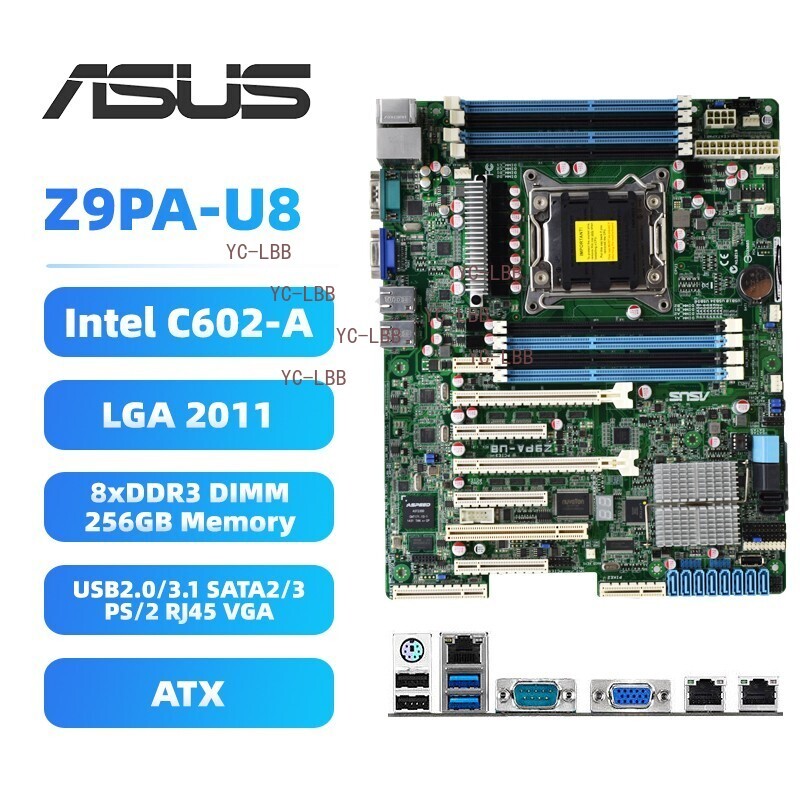

Please note: This product does not include batteries as they are prohibited items. ASUS Z9PA-U8 Motherboard ATX Intel C602-A LGA2011 DDR3 SATA2/3 VGA RJ45 PS/2+I/O
Note: If the product is damaged in transportation or has quality problems and needs to be returned, the freight shall be borne by the seller. If the product is damaged by the buyer, the buyer will bear the expenses incurred when it needs to be returned or replaced.
Compatible Model:
ASUS Z9PA-U8 Descriptions: Original quality item, without retail package. 100% tested working before shipping. Updated with the latest BIOS version. Free OEM I/O shield included, without CMOS battery for safe sending. Please check and confirm the model of your device before purchase. We provide 90 days warranty, the buyer pays the postage of the returned package. Import duties, taxes and charges are not included in the item price or shipping charges.
Processor / System Bus 1 x Socket 2011 Intel Xeon processor E5-1600 product family Intel Xeon processor E5-1600 v2 product family Intel Xeon processor E5-2600 product family Intel Xeon processor E5-2600 v2 product family
Core Logic Intel C602-A PCH
Memory Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 256GB LRDIMM Memory Type : DDR3 1866/1600/1333/1066 RDIMM* DDR3 1866/1600/1333/1066 UDIMM* DDR3 1866/1600/1333/1066 LRDIMM* Memory Size : 32GB, 16GB, 8GB, 4GB, 2GB RDIMM 8GB, 4GB, 2GB UDIMM 32GB, 16GB, 8GB LRDIMM
Expansion Slots Total Slot : 7 Slot Location 1 : PCI-E x8 (Gen2 X4 Link) Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location#
Form Factor ATX (12"x9.6", 305mm x 244mm) *
ASUS Features FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise
Storage SATA Controller : Intel C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
Networking 2 x Intel 82574L + 1 x Mgmt LAN
Graphic Aspeed AST2300 with 16MB VRAM
On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V power connector) 1 x Management Connector , Onboard socket for management card 1 x USB connector 2 x USB pin header , Up to 4 Devices 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header
Back I/O Ports 1 x External Serial Port 4 x External USB Port ﹝2 x USB 3.1 Gen 1, 2 x USB 2.0﹞ 1 x VGA Port 2 x RJ-45 + 1 x Mgmt LAN 1 x PS/2 KB/Mouse
Management Solution ASWM Enterprise Optional ASMB6-iKVM for KVM-over-Internet
Environment Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
