ASUS Z11PR-D16 LGA 3647 Motherboard Intel XEON C621 PCH DDR4 SSI EEB Mainboard For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

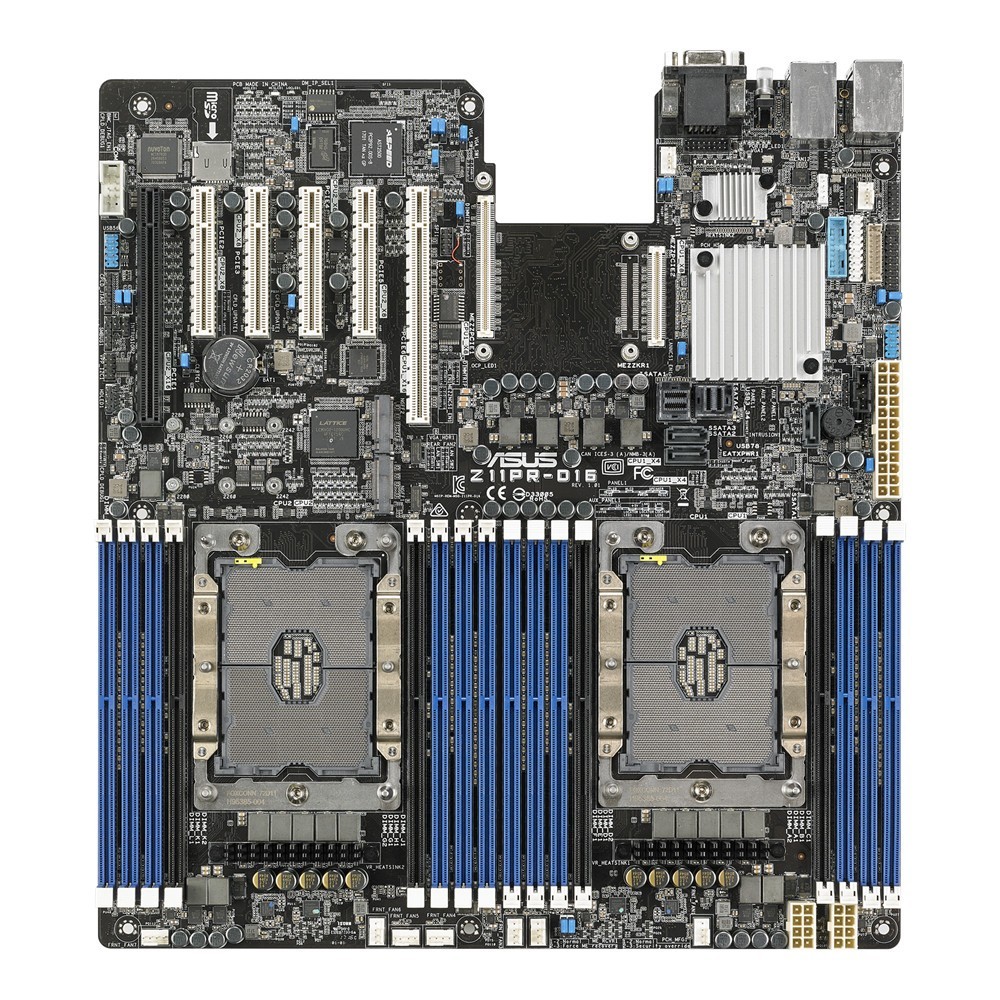

ASUS Z11PR-D16 LGA 3647 Motherboard Intel XEON C621 PCH DDR4 SSI EEB Mainboard

Price: CN $449.00

Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

ASUS Z11PR-D16 LGA 3647 INLEL XEON C621 PCH DDR4 2933 SSI EEB mainboard

Processor / System Bus

2 x Socket P (LGA 3647)

1st and 2nd Gen Xeon® Scalable Processor Family

*Refer to support page for more information

UPI (10.4 GT/s)

Core Logic

Intel® C621 Slots : 16 (6-channel per CPU, 8 DIMM per CPU)

Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS

Memory Type :

DDR4 2933/2666/2400 RDIMM

DDR4 2933/2666/2400 LRDIMM

DDR4 2933/2666/2400 LR-DIMM 3DS

Memory Size :

32GB, 16GB, 8GB, 4GB RDIMM

64GB, 32GB LRDIMM

128GB, 64GB LR-DIMM 3DS

* Refer to support page for more information

* Actual memory frequency differs from Intel CPU types and memory module.

Please check Intel official site for more detail about the memory types supported by each CPU.

*2933MHz will drop to 2666MHz when using 2DPC Slots

Slot Location 1 : PCI-E x16 (Gen3 X16 Link)

Slot Location 2 : PCI-E x8 (Gen3 X8 Link)

Slot Location 3 : PCI-E x8 (Gen3 X8 Link)

Slot Location 4 : PCI-E x8 (Gen3 X8 Link)

Slot Location 5 : PCI-E x8 (Gen3 X8 Link)

Slot Location 6 : PCI-E x16 (Gen3 X16 Link)

Additional Slot 1 : OCP 2.0 module support (X16 Gen3 Link))

Form Factor

SSI EEB, 12” x 13”

ASUS Features

ASUS Fan Speed control technology

ASUS Control Center

Rack Optimized (Dedicated for Controller :

Intel® C621

11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector)

2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link)

Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)

(Support Software RAID 0, 1, 5, 10 )

Intel®VROC (For Linux/Windows)

(Support Software RAID )

Optional kits Controller :

ASUS PIKE II 3008-8i 8-port SAS 12G RAID card

ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

Networking

1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

Graphic

Aspeed AST2500 with 64MB VRAM

On Board I/O

1 x TPM header

1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)

1 x USB 3.0 pin header , Up to 2 Devices

2 x USB 2.0 pin header , Up to 4 Devices

9 x Fan Header , 4pin

1 x SMBus

2 x Chassis Intruder

2 x Front LAN LED

1 x Serial Port Header

1 x VROC Key Header

1 x Micro SD Card Slot

2 x M.2 Connector , NGFF Type : 2280/2260/2242

Back I/O Ports

2 x USB 3.0 ports

1 x VGA port

2 x RJ-45 GbE LAN ports

1 x RJ-45 Mgmt LAN temperature: 10℃ ~ 35℃

Non operation temperature: -40℃ ~ 70℃

Non operation humidity: 20% ~ 90% ( Non condensing)
