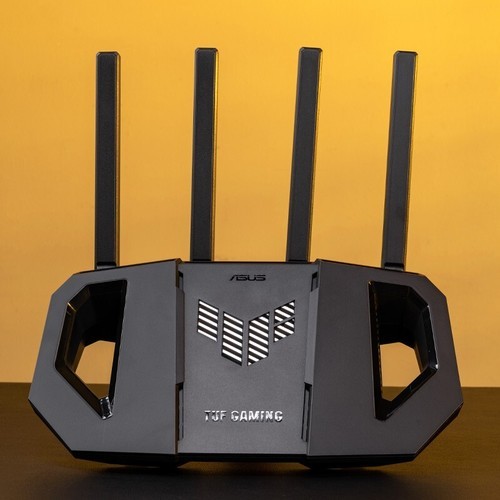

ModelTUF Gaming BE3600 (TUF-BE3600)Network StandardIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6Product SegmentBE3600 ultimate BE performance : 688+2882 MbpsWiFi Data Rate802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 MbpsAntennaExternal antenna x 4Transmit / Receive2.4GHz 2x2
5GHz 2x2Processor2.0 GHz quad-core processorMemory256 MB Flash
1 GB RAMBoosts SpeedOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidthOperating Frequency2.4GHz / 5GHz
2.4 GHz
5 GHzOperating ModeWireless router mode
Access point mode
Media bridge modeI/O PortsRJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,ButtonsWPS Button, Reset Button, Power ButtonLED IndicatorPower x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1Power SupplyAC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A currentPackage ContentTUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty cardProduct Weight (g)561gProduct Dimensions274 x 168 x 205 mmAiMeshAiMesh
• Primary AiMesh Router
• AiMesh NodeGameGame Boost / Acceleration
Mobile Game ModeParental Control"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet ScheduleGuest Network"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time LimitSecurityAiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64AiProtection• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and BlockingVPNVPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN FusionTraffic ControlAdaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website HistoryWANInternet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relayLANDHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)WirelessUTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit BeamformingUSB applicationFile System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder PrivilegesAdministrationConfiguration Backup and Restore
Diagnosis tools
response System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
