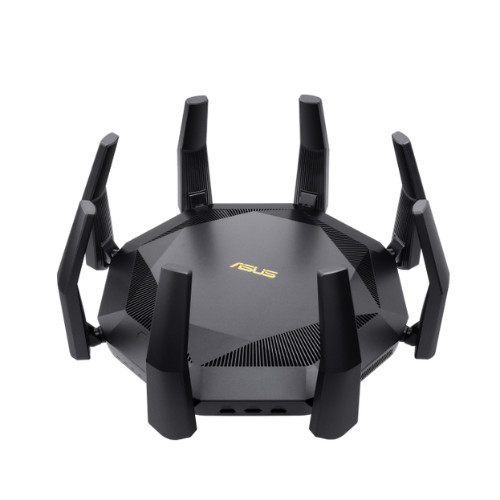

ASUS RT-AX89X AX6000 Dual-band Router WIFI 6 SFP+ FIBER 90IG04J1-BM3010
ModelRT-AX89XNetwork standardsIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6Data transfer speed802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps 802.11n
: up to 600 Mbps 802.11ac
: up to 1000 Mbps
802.11ac: up to 4333 Mbps
802.11ax (2.4 GHz): up to 1148 Mbps
WiFi 6 (802.11ax) (5 GHz): up to 4804 MbpsAntennasExternal antenna x 8MIMO scheme2.4 GHz 4 × 4
5 GHz 8 × 8ProcessorQuad-core 2.2 GHz processorRAM256 MB Flash, 1 GB RAMAcceleration toolsOFDMA (Orthogonal Frequency Division Multiple Access), beamforming: standard and universal, high data rate 1024-QAM, bandwidth 20/40/80/160 MHzOperating frequency2.4 GHz / 5 GHzOperating modesAccesspoint, AiMeshnode, Mediabridge, Repeater, RouterPortsRJ45 for 10Gbps BaseT for WAN/LAN x 1, RJ45 for 1Gbps BaseT for LAN x 8, RJ45 for 1Gbps BaseT for WAN x 1
USB 3.1 Gen 1 x 2
SFP+ x 1ButtonsWPS button, reset button, power button, wireless on/off button, LED on/off buttonLED indicatorPower x 1
Wi-Fi x 3
WAN x 1
LAN x 1
10GE x 1
SFP+ x 1Power supplyAC input: 110V~240V(50~60Hz)
DC output: 19V 3.42AEquipmentRJ45 x1
Adapter x1
QSG x1
Warranty Card x1
RT-AX89X x1Weight1280 AiMesh router
AiMesh nodeGamesGame Boost / AccelerationParental controlParental Controls
Individual Internet Access ScheduleGuest networkGuest Network
• Maximum number of guest network rules: 2.4 GHz x3, 5 GHz x 3
Guest Network Connection Time Limit
- Guest Network Encryption: Open system, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
SSH
Network screen
• Number of keywords in firewall filter (max.) :64
• Network service firewall filter (max.) :32
• Firewall URL filter (max.) :64AiProtectionAiProtection
Blocking malicious sites
Two-way IPS
Detecting and blocking infected devicesVirtual Private Network (VPN)VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTPTraffic managementAdaptive QoS
Bandwidth Manager
Bandwidth Limiter
- Max. Bandwidth Limiter Rules: 32
Traditional QoS
- Max. Traditional QoS Rules: 32
Traffic Manager
Real-time Traffic Monitoring
Wired Traffic
Monitoring Wireless Traffic Monitoring
Traffic Analyzer
- Traffic Analysis Period: Daily, Weekly, Monthly
Website Browsing HistoryWAN- Internet Connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE Modem
Port Forwarding
- Max. number of port forwarding rules:64
Port Switching
- Max. number of port switching rules32
DMZ
DDNS
- NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relayLANDHCP Server
IGMP Snooping
IPTV
LAN Channel Aggregation
Manual IP Address Assignment
- Max. IP Address Assignment Rules: 64
Wake on LAN (WOL)Wireless networkUTF-8 SSID
Wi-Fi MAC Address Filtering
- Max. MAC Address Filters: 64
Wireless Scheduler
Airtime Parity
RADIUS Server
Universal Beamforming
Explicit BeamformingUSB application- File detaching the disk
AiCloud
Download master
AiDisk
Media server
Time Machine
Samba server
FTP server
Shared folder access rightsAdministrationSaving and restoring settings
Diagnostic tools
response system
System log
