Dear customers:
This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

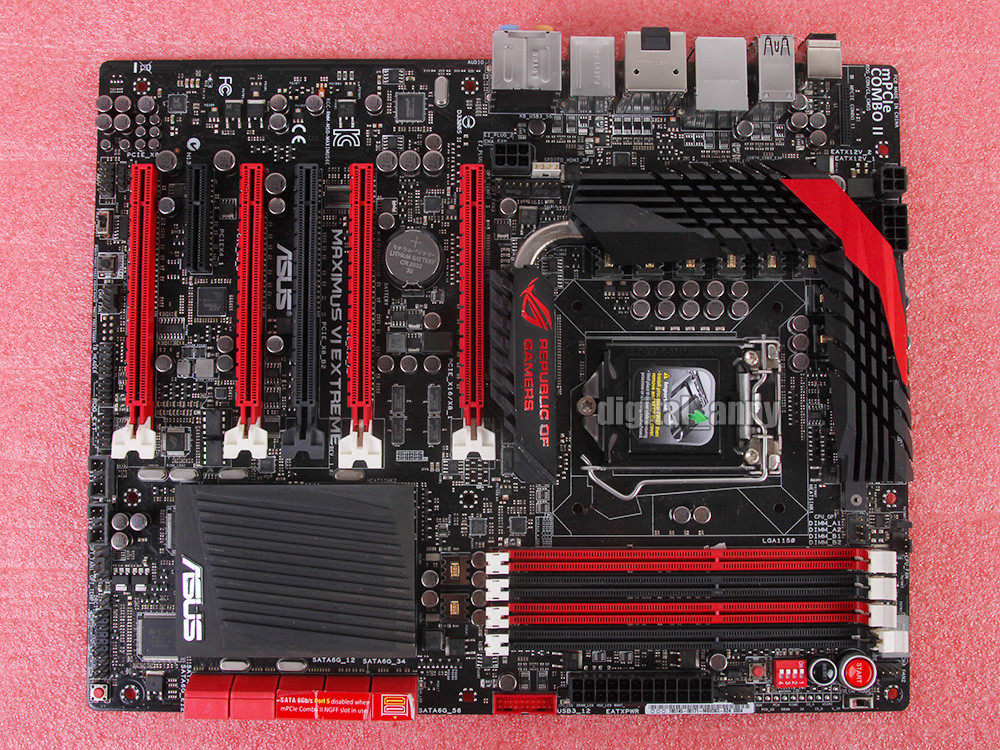

Official specification:
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list
Chipset
Intel® Z87
Memory
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 at 24 Hz / 3840 x 2160 at 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD CrossFireX™ Technology
Expansion Slots
5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8) *1
1 x PCIe 2.0 x4
1 x mini-PCIe 2.0 x1 *2
Storage
Intel® Z87 chipset : *3
6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4
Intel® Z87 chipset :
1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards
ASMedia® ASM1061 controller : *5
4 x SATA 6Gb/s port(s), red
LAN
Intel® I217V, 1 x Gigabit LAN Controller(s)
Wireless Data Network
Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Bluetooth
Bluetooth V4.0
Bluetooth V3.0+HS
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
Intel® Z87 chipset : *6
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset : *7
8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
OC Panel
2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
- 4 x 4-pin extra fan connectors
NORMAL Mode for in-chassis usage:*8
- CPU Level Up OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER：1 x SATA power connector
- ROG_EXT port：1 x 18-1 pin data connection port
ROG Exclusive Features
mPCIe Combo™ II (mPCIe/M.2 combo card)
ROG Connect :
- RC TweakIt
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ III :
- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- EZ Plug
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
Extreme Tweaker
Special Features
ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up
ASUS Wi-Fi GO!
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
3 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 6-pin EZ_PLUG Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
10 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x LN2 Mode header(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x FastBoot switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s)
BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability
WfM2.0, DMI2.0, WOL by PME, PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: Native x8/x8 mode is available when only PCIE_X16/X8_1 and PCIE_X8_B2 slots are in used.
*2: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.
*3: SATA 6Gb/s port 5 will be disabled when M.2 slot on mPCIe Combo II is in use.
*4: The functions support depends on the CPU types.
*5: These SATA ports are for data hard drives only. ATAPI devices are not supported.
*6: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.
*7: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
*8: One 5.25" drive bay is required for NORMAL Mode installation.
Accessories:
1 x motherboard
2 x SATA cables
1 x I/O shield
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.
Thank you for viewing
