Tested & Working • 2 AvailableASRock Z370 Taichi ATX Motherboard – LGA 1151 (300 Series)
LGA 11518th/9th Gen Intel4x DDR4Up to 64GB3x M.2PCIe Gen3 x4WiFi + BTIntel 802.11ac
Tested, working ASRock Z370 Taichi – the flagship-tier Z370 board for Intel Coffee Lake. Great for a gaming PC rebuild, an overclocking bench, a home server, or replacing a failed Z370 / Z390 board without swapping your CPU, RAM or cooler.
You get a 12-phase VRM with Dr.MOS and heatsinks, three Ultra M.2 slots, 8x SATA, dual Intel Gigabit Ethernet, onboard Intel WiFi/Bluetooth, dual BIOS, a Dr. Debug LED and a Clear CMOS button on the rear I/O. 2 units available – buy one or both.
SpecificationsBrand / ModelASRock Z370 TaichiChipsetIntel Z370SocketLGA 1151 (300 Series)CPU SupportIntel 8th Gen Core (i3/i5/i7-8xxx) and 9th Gen Core (i3/i5/i7/i9-9xxx) – 9th Gen requires updated BIOSForm FactorATX (30.5 x 24.4 cm)Memory4x DDR4 DIMM, dual channel, up to 64GB, XMP, DDR4-4333+ (OC)Expansion3x PCIe 3.0 x16 (x16 / x8+x8 / x4), 2x PCIe 3.0 x1, NVIDIA SLI & AMD CrossFireStorage3x Ultra M.2 (PCIe Gen3 x4 NVMe / SATA), 8x SATA3 6Gb/s, RAID 0/1/5/10, Intel Optane readyNetworkingDual Intel Gigabit LAN, Intel 802.11ac WiFi + Bluetooth (2x SMA antenna jacks)AudioPurity Sound 4 – Realtek ALC1220, Nichicon Fine Gold caps, 5x analog jacks + optical S/PDIFRear I/OClear CMOS button, PS/2, HDMI, DisplayPort, USB 3.1 Gen2 Type-C, USB 3.1 Gen2 Type-A, 4x USB 3.1 Gen1, 2x RJ-45 LAN, 2x WiFi antenna, audio + opticalExtras12-phase power with Dr.MOS, dual BIOS, Dr. Debug LED, RGB header, pre-mounted rear I/O armorCondition & TestingTested working
Powers on, POSTs and enters BIOS. Both units tested on our bench.CPU socket
Socket pins inspected. Board ships without a CPU installed.Cosmetic
Used, pulled from a working system. May show light dust, minor scuffs or adhesive residue on heatsinks.Photos

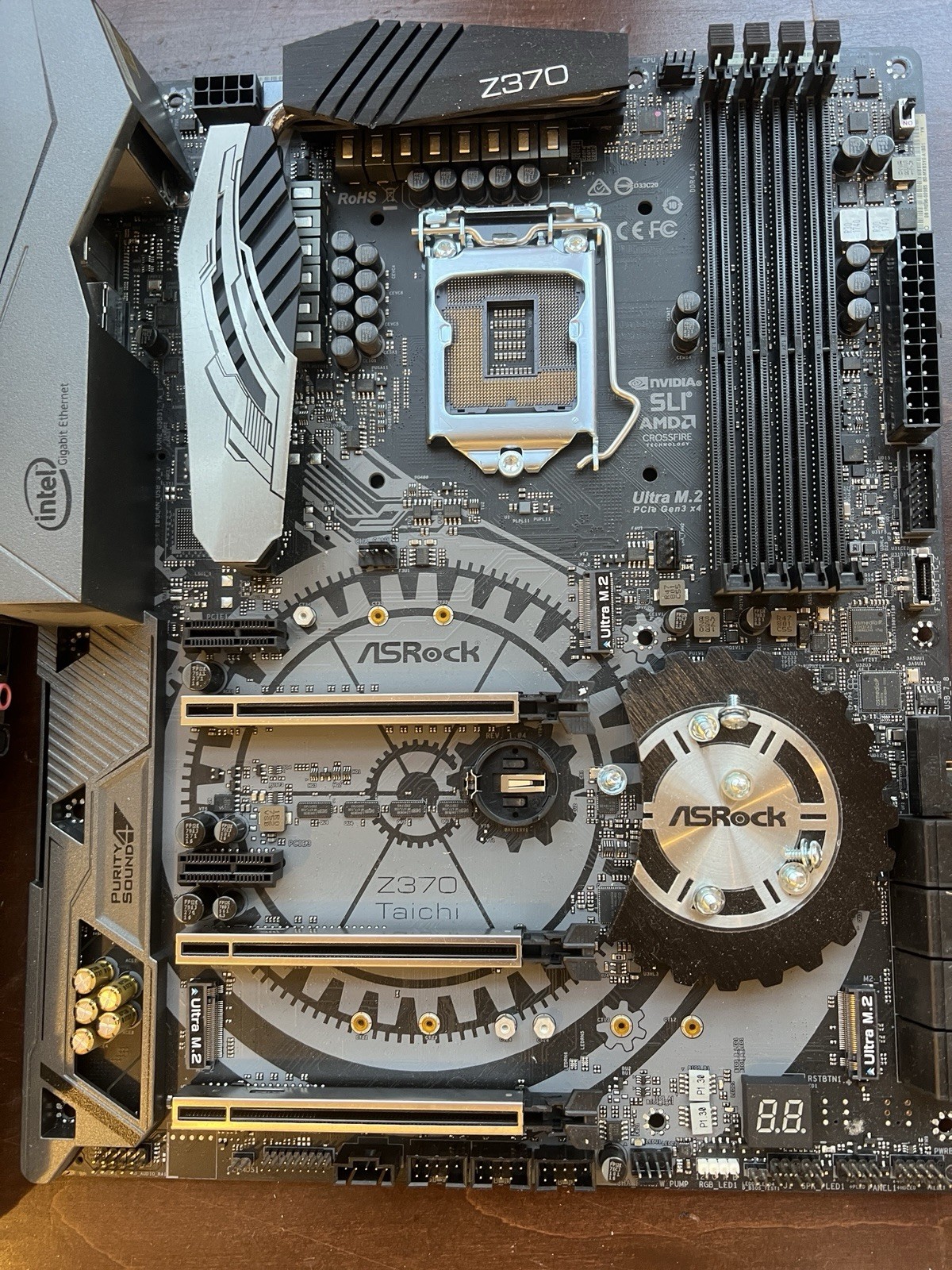

Pictures show the actual boards for sale. Both units are the same model and condition.What's Included
✔ ASRock Z370 Taichi motherboard (1 per purchase)
✔ Anti-static bag and padded, boxed shipping
✘ Not included: CPU, RAM, cooler, retail box, manual, SATA cables, WiFi antennas, separate I/O shield
Compatible CPUsIntel 8th Gen (Coffee Lake)
i7-8700K, i7-8700, i7-8086K, i5-8600K, i5-8400, i3-8350K, i3-8100, Pentium G5400, Celeron G4900Intel 9th Gen (Coffee Lake Refresh)
i9-9900K, i9-9900KF, i7-9700K, i7-9700, i5-9600K, i5-9400F, i3-9100F (BIOS update required)
Not compatible with 6th/7th Gen (Skylake/Kaby Lake) CPUs, even though the socket is also called LGA 1151.
FAQ
Will my i7-6700K or i7-7700K work?
No. Z370 only supports 8th and 9th Gen Intel Core processors.
Does it have WiFi?
Yes, Intel 802.11ac WiFi and Bluetooth are built in. Any standard SMA dual-band antennas will work.
Can I boot from NVMe?
Yes. All three Ultra M.2 slots support PCIe Gen3 x4 NVMe boot drives.
Can I buy both?
Yes, 2 are available. Just set the quantity to 2 at checkout.
