Manufacturer: APC

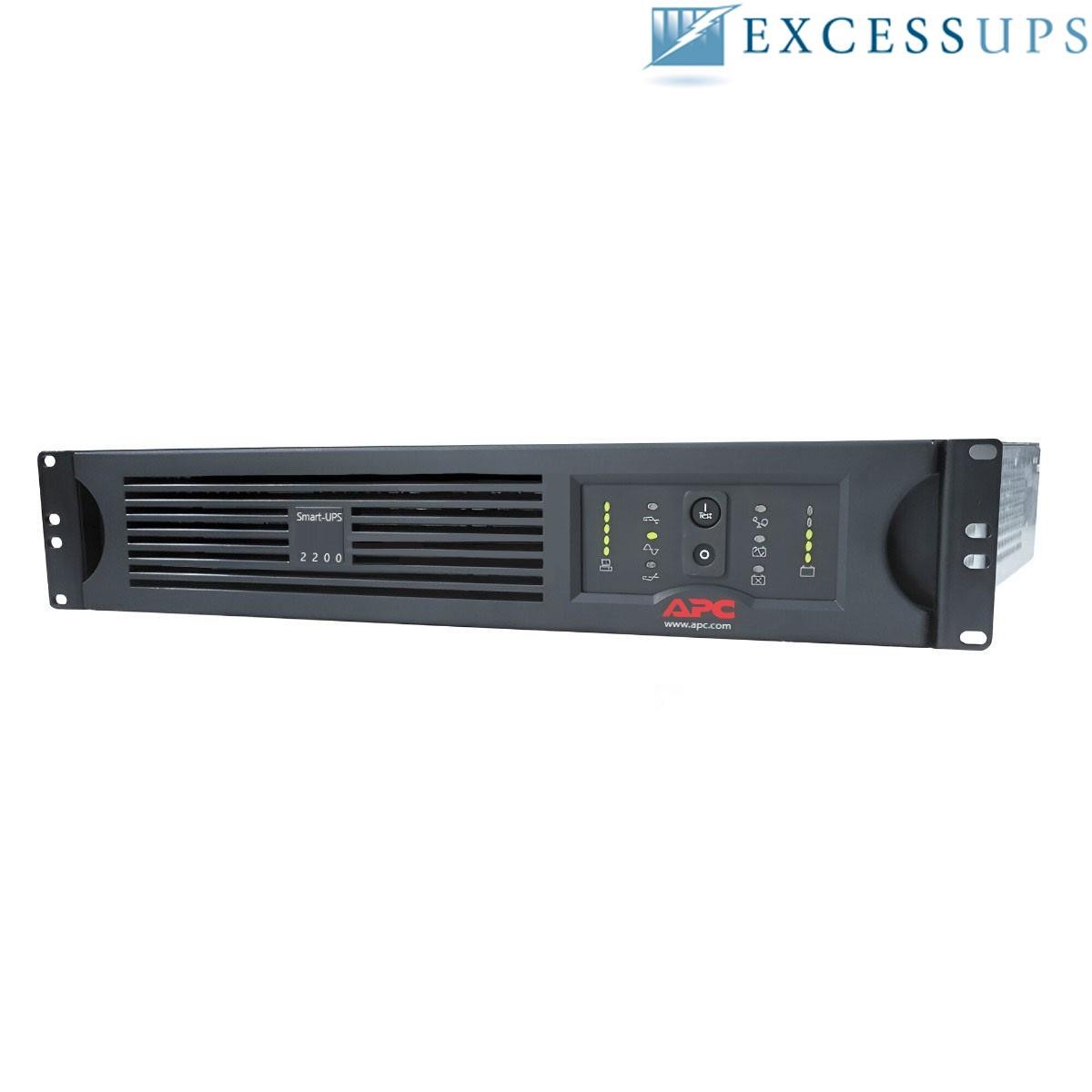

Model: APC Smart-UPS 2200VA 1980W RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SUA2200RM2U
Maximum output: 980W / 2200VA
Typical backup time at half load: 15.7 minutes (990 Watts)
Typical backup time at full load: 5.2 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 2200VA 1980W RM 2U SUA2200RM2U - User Manual
SUA2200RM2U - APC Smart-UPS Specifications:Main:
Main Input Voltage
120V
Main Output Voltage
120V
rated power in W
1980W
Rated Power in VA
2200VA
Input Connection Type
NEMA 5-20P
Output Connection Type
(6) NEMA 5-15R
(2) NEMA 5-20R
Number of Rack Unit
2U
Cable Length
8 ft (2.44 m)
Number of Cables
1
Battery Type
Lead-Acid Battery
Batteries & Runtime:
Extended Runtime
0
Number of Battery Filled Slots
0
Number of Battery Free Slots
3 h
Number of Battery Replacement Quantity
1
Battery Life
3 - 5 year(s)
Battery Power in VAH
490 VAh runtime
Battery Charger Power
163 W Rated
General:
Number of power module filled slots
0
Number of Power Module Free Slots
0
Redundant
No
Physical:
Color
Black
Height
3.5 inches (89mm, 8.9cm)
Width
19.0 inches (483mm, 48.3cm)
Depth
26.0 inches (660mm, 66.0cm)
Net Weight
96.0 lbs. (43.64kg)
Mounting Location
Front
Mounting Preference
Lower
Mounting Mode
Rack-mounted
Two post mountable
0
USB Compatible
Yes
Input:
Input Voltage Limits
75 - 154 V adjustable
82 - 144 V
Network Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion
Less than 5 % at full load
Maximum Configurable Power in VA
2200VA
Maximum Configurable Power in W
1980W
Transfer Time
2ms typical
Topology
Line Interactive
Waveform Type
Sine wave
EfficiEfficiency
95 % full load
Output Frequency
47 - 53 Hz for 50 Hz nominal sync to mains
57 - 63 Hz for 60 Hz nominal sync to mains
Conformance:
Product Certifications
BSMI
CSA
Environmental:
Acoustic Level
47 dBA
Heat Dissipation
300 Btu/h
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Operation
32 - 104 °F (0 - 40 °C)
Ambient Air Temperature for Storage
5 - 113 °F (-15 - 45 °C)
Storage Altitude
0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Communications & Management:
Control Panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Emergency Power Off (EPO)
Yes
Free Slots
1
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering:
Surge Energy Rating
480 J
Noise Suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
