Manufacturer: APC

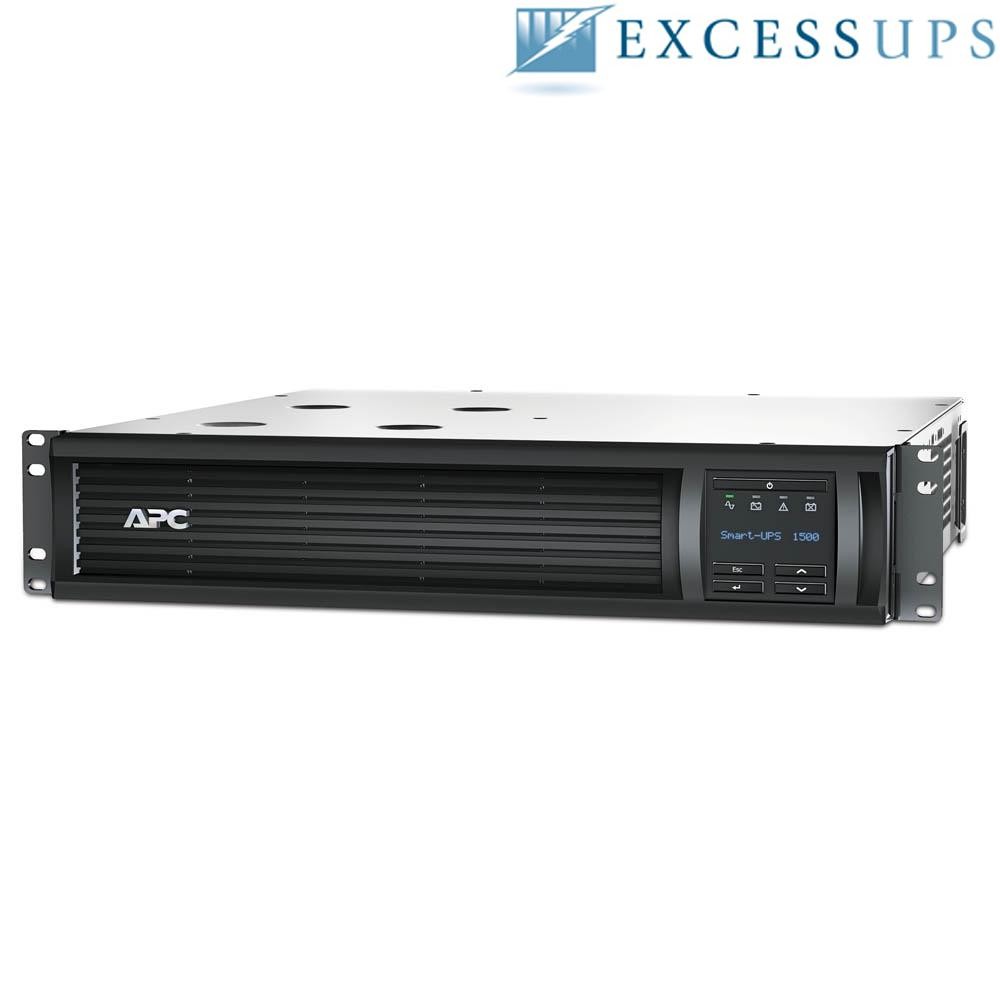

Model: APC Smart-UPS 1500VA 1000W, LCD, RM, 2U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMT1500RM2U
Maximum output: 1000W / 1500VA
Waveform: Pure Sine Wave
Topology: Line-Interactive
Typical backup time at half load: 15.2 minutes (990 Watts)
Typical backup time at full load: 5.1 minutes (1980 Watts)
Warranty: 1 Year Full Replacement Warranty Included
Description: The APC Smart-UPS SMT1500RM2U is a line-interactive 2U rackmount UPS designed to provide reliable 1500VA / 1000W power protection for servers, network switches, storage systems, and other critical IT equipment. It features pure sine wave output, Automatic Voltage Regulation (AVR), a multifunction LCD display, hot-swappable lead-acid batteries, and six NEMA 5-15R battery-backed outlets. The integrated SmartSlot supports optional APC Network Management Cards, including the AP9630, AP9631, and AP9635, enabling secure remote monitoring and management when installed. This refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.
APC Smart-UPS 1500VA 1000W 120V SMT1500RM2U - User Manual
SMT1500RM2U - APC Smart-UPS Specifications:
Product Overview UPS Topology Line-Interactive Form FactorRackmount Rack Height2U Power Rating1500VA / 1000W Maximum Configurable Power1440VA / 1000W Input Voltage120V Output Voltage120V Waveform TypePure Sine Wave Input ConnectionNEMA 5-15POutput Connections(6) NEMA 5-15RBattery TypeSealed Lead-Acid Automatic Voltage Regulation (AVR)Yes LCD DisplayMultifunction LCD SmartSlotAvailable (Supports Optional Network Management Card) Included AccessoriesUSB Cable, Software CD, Documentation User Interface, Alerts & Controls Front Panel DisplayMultifunction LCD Status & Control Console LCD FunctionsLoad, Battery, Input/Output Status, Runtime, Configuration Audible AlarmOn Battery, Low Battery, Overload and Fault Alarms Alarm ManagementUser Configurable ControlsPower ON/OFF and LCD Power Off (EPO)Optional Communications & Management SmartSlotOne Available Expansion Slot USB PortYes Serial PortYes Communication InterfacesUSB, Serial, SmartSlot Remote MonitoringSupported with Optional Network Management Card Supported ProtocolsHTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet (with Optional NMC) Email NotificationsSupported (with Optional NMC) Event LoggingSupported SNMP Trap SupportSupported (with Optional NMC) Environmental MonitoringSupported with AP9631/AP9635 and Temperature Sensor Firmware UpdatesSupported User AuthenticationPassword Protected (with Optional NMC) Security FeaturesHTTPS, SSH, SNMPv3 (with Optional NMC) Management SoftwareAPC PowerChute Business Edition Remote ShutdownSupported SmartSlot Input Voltage120V Input Frequency50/60 Hz ±3% Auto-Sensing Input Voltage Range82-144V Adjustable Input Range75-154V Input PlugNEMA 5-15P Number of Power Cords1 Cord Length8 ft (2.44 m) Input Capacity1500VA / 1000W Maximum Configurable Output1440VA / 1000W Output Voltage120V Output Frequency50/60 Hz ±3% Synchronized to Utility Harmonic DistortionLess than 5% Transfer Time4 ms Typical / 8 ms Maximum WaveformPure Sine Wave Output Receptacles(6) NEMA 5-15R Surge Energy Rating459 Joules EMI/RFI FilteringFull-Time Multi-Pole Noise Filtering Batteries & Runtime Battery TypeSealed Lead-Acid Replacement BatteryAPCRBC159 Battery Quantity1 Battery Capacity432 VAh Typical Runtime at Half Load25.9 Minutes (500W) Typical Runtime at Full Load7.2 Minutes (1000W) Typical Recharge Time3 Hours Expected Battery Life4-5 Years Battery Charge Power144W Hot-Swappable BatteriesYes Extendable RuntimeNo Physical Rack Height2U Height3.50 in (89 mm) Width17.01 in (432 mm) Depth17.99 in (457 mm) Net Weight63.14 lbs (28.64 kg) MountingRackmount ColorBlack USB Temperature32°F to 104°F (0°C to 40°C) Storage Temperature5°F to 113°F (-15°C to 45°C) Operating Humidity0-95% Non-Condensing Storage Humidity0-95% Non-Condensing Operating AltitudeUp to 10,000 ft (3,048 m) Storage AltitudeUp to 50,000 ft (15,240 m) Acoustic Noise46 dBA Heat Dissipation90 BTU/hr Product FamilyAPC Smart-UPS LCD ConditionNew Batteries, Refurbished UPS Warranty1 Year Full Replacement Warranty Included
