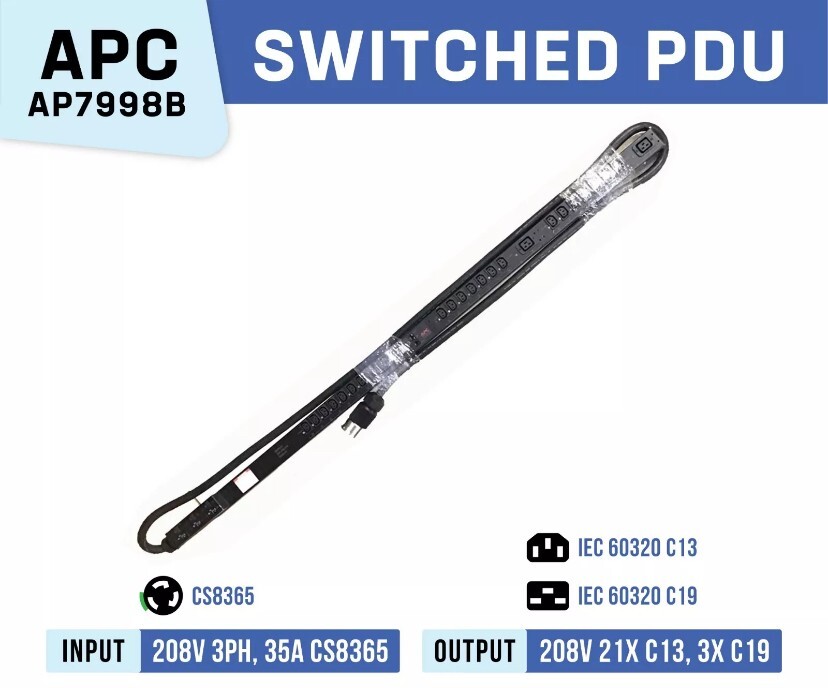

The APC AP7998B is a Switched Rack PDU , Input: 208V 3PH , Input Connections: CS8365 , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19

APC AP7998B Features:

• Toolless Mounting Capabilities- Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
• Local and web-based monitoring- Status available to customers both in the data center and remotely
• Vertical Mounting Capabilities- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
• Resettable circuit breakers- Enables a quick recovery from overload events.
• Remote Current Monitoring
• Redundant Internal Power Supplies
• Power Sequencing
• High Power Density

APC AP7998B in. (1778 mm.)Width2.20 in. (56 mm.)Depth3.50 in. (89 mm.)Weight21.28 lbs. (9.67 kg.)ColorBlackEnvironmentalOperating Environment23 - 113 °F (-5 - 45 °C)Operating Relative Humidity5%Operating Elevation0-10000 feet (0-3000 meters)Storage Temperature-13 - 149 °F (-25 - 65 °C)Storage Relative Humidity5%Storage Elevation0-50000 feet (0-15000 meters)OutputNominal Output Voltage208VMaximum Total Current Draw per Phase35AOutput Connections(21) IEC 320 C13
(3) IEC 320 C19Overload ProtectionYesInputNominal Input Voltage208V 3PHInput Frequency50/60 HzInput ConnectionsCS8365Cord Length10 feet (3.05 meters)Number of Power Cords1Maximum Line Current per phase35AMaximum Input Current per phase35ALoad Capacity12.5 kVAConformanceRegulatory ApprovalscUL Listed,CSA,FCC Part 15 Class A,ICES-003,Industry Canada,UL 60950,UL ListedEnvironmental ComplianceRoHS 7b Exemption
The AP7998B was formerly designated the AP7998.
