ADT K11 Series PCI-E X1 Signal Connection Cable
Brand: ADTModel: K11 SeriesBandwidth: PCIe 4.0 x1 (Gen4), up to 16GbpsCable Length: 5cm ~ 100cm, Custom length available. Different lengths with different prices.
Please contact customer service for price revision before payment for custom cable length.
⚠️ Important Purchase Notice: This product is for purchase specified by professional engineers only. Not for general use. General buyers please DO NOT order.
Model Specification Table

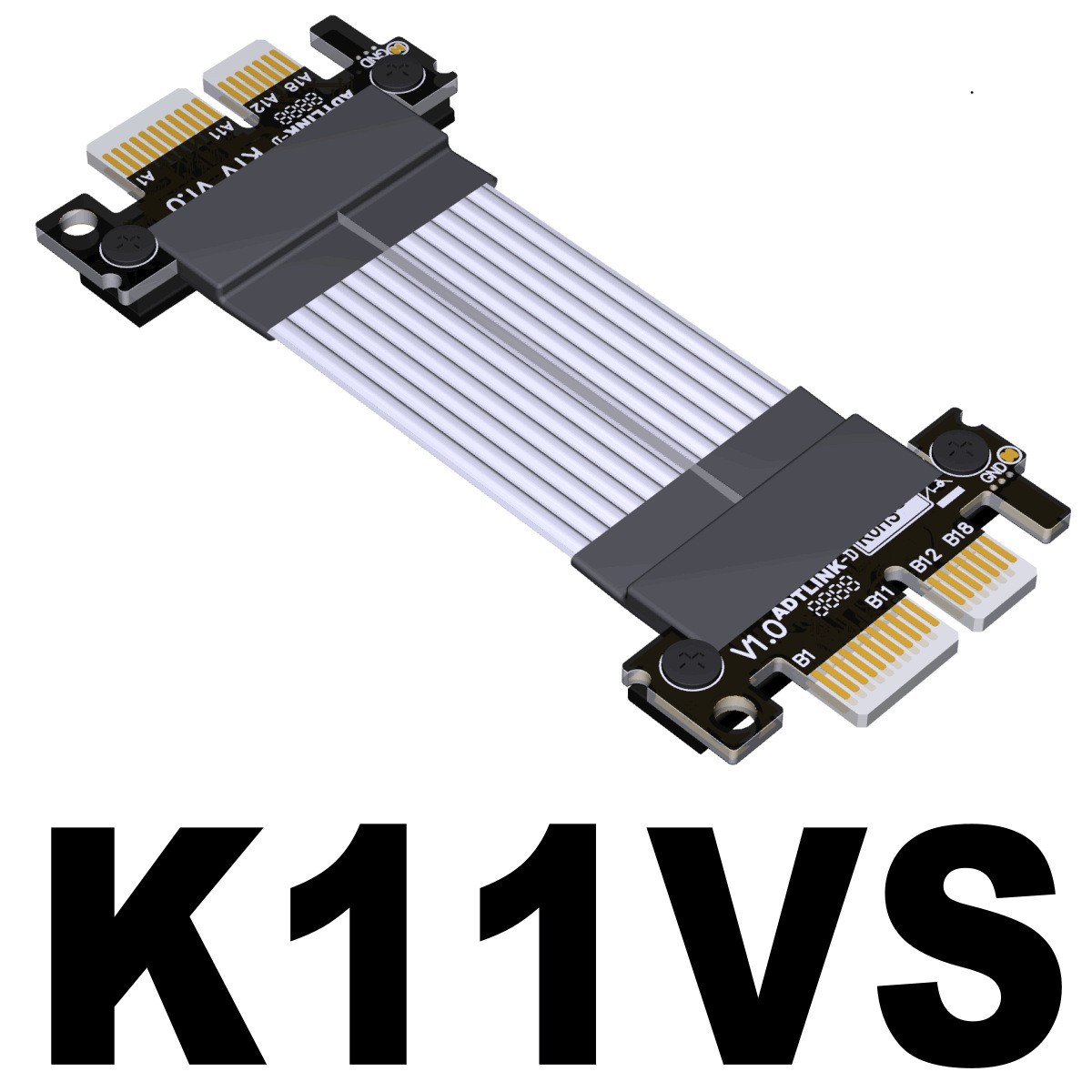

ModelGold Finger & Connector DirectionTx-Rx SignalK11VSPCIE 4.0 Straight Male Gold Finger to Straight Male Gold FingerStraight Signal Pass-throughK11NSPCIE 4.0 Straight Male Gold Finger to Straight Male Gold FingerCross Signal Exchange
Supplement for R11 Series Reference:
- R11SS: Signal extension function, PCIe signal direct connection without conversion. Tx to Tx, Rx to Rx, suitable for Jump & Extension application.
- R11NS: Differential signal cross exchange, PCIe differential Tx to Rx, Rx to Tx, designed for Master-Slave application.
Product Features
- High-performance Shielded CableADT self-developed 5th generation shielded high-speed cable, equipped with premium connectors. Stable transmission at PCIe 4.0 x1 8Gbps at high frequency.
- Customizable Length & Stable PerformanceCustom length available from 3cm up to 100cm. Our extension cable features low impedance. Stable full-speed PCIe4.0 performance within 60cm cable length.
- Differential Signal Via-less DesignNo parasitic capacitance or parasitic inductance that causes signal attenuation & interference. Free from CAF micro-short circuit issue, long service life.
- High-quality High TG PCB BoardPCB adopts high-frequency low-resistance premium high TG material. Copper thickness upgraded to 1oz. Gold fingers with sufficient gold plating, excellent conductivity. Reduce risks of system crash & audio distortion caused by oxidation and rising impedance.
- Robust & Anti-break Structure3mm PCB aluminum shim protection at metal soldering points. Tensile resistant, anti-interference, prevents wire break and pin drop.
- Low-profile & Widened PCB DesignLow-profile design will NOT block graphics cards. Widened & lengthened PCB for easier installation, lower risk of damage.
Cable Parameters
- Cable Thickness: 1.3mm
- Flexibility: Soft cable, bendable without performance impact
- Shielding: Full metal EMI shielding with advanced EMI shielding conductive polymer. Flat ribbon cable design.The conductive polymer fully covers each cable for complete EMI shielding, blocks incoming & outgoing electromagnetic emission. Minimize interference and performance degradation while reducing cable weight.
⚠️ Purchase & Installation Warnings
- Correct Orientation Required: Align direction carefully before plugging. Reverse or offset insertion may burn your equipment. Hold device socket steadily when plugging, avoid excessive force breaking socket pins.Do NOT bend or pull the cable within 2cm range at soldering joints on both ends of the cable.
- Signal Loss Notice: Motherboards and hardware devices have different built-in signal driving capability. Our internal test results may differ from your actual test. Signal loss is inevitable with extension cables. DO NOT buy if you require absolutely perfect signal performance.
- Device Compatibility: Electronic hardware like GPU and motherboard will age and oxidize over time. Using extension cables on aged hardware will further reduce stability.NOT compatible with equipment older than 4 years. Do not purchase for old devices.
- Application Restriction: Reserved for product engineer specified purchase, only for product testing purposes. Not permitted for other applications.
Pre-shipment Quality Control
New arrival. Every unit is 100% power-on tested before shipment.
