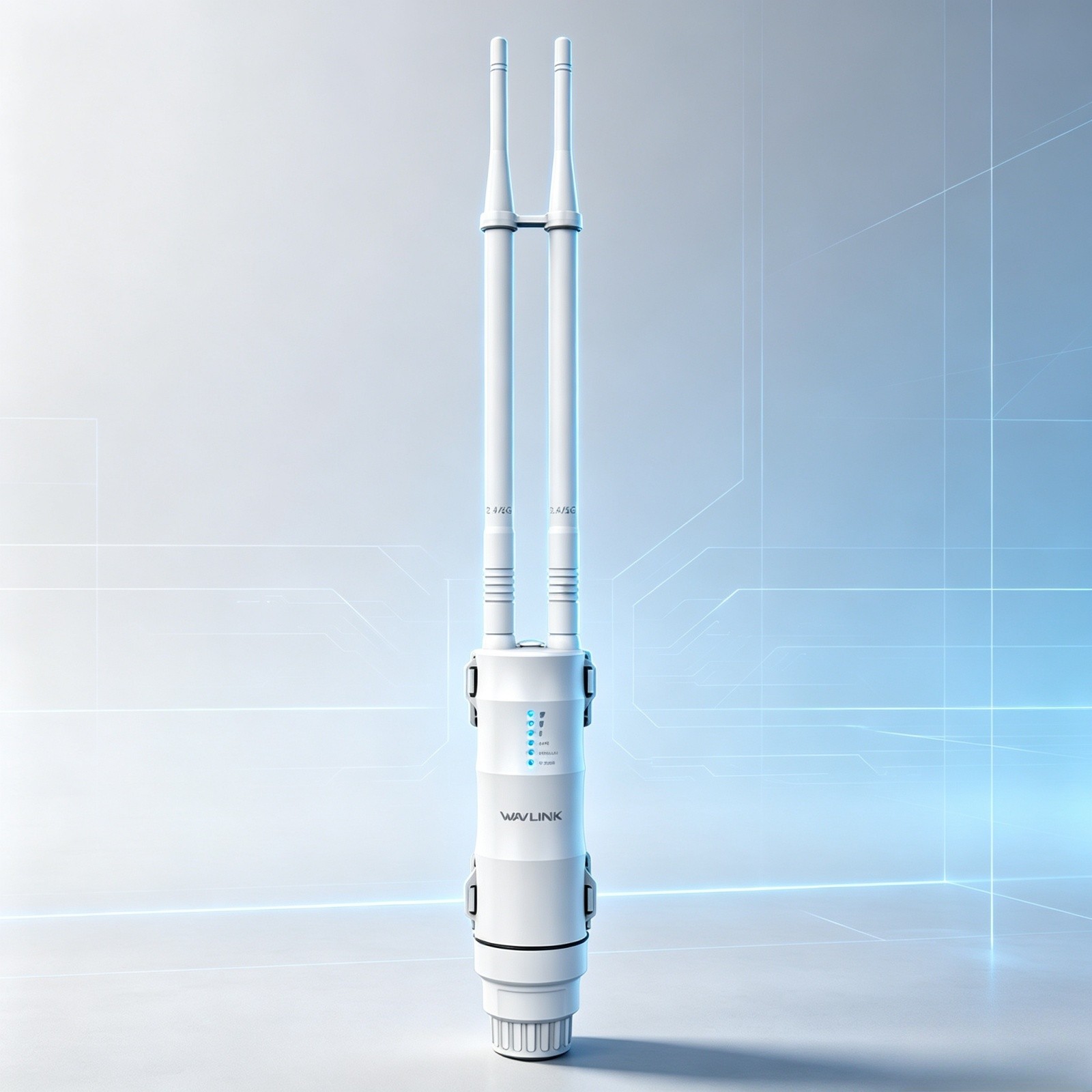

WAVLINK 300Mbps Outdoor Access Point
The WAVLINK HighPower Wi-Fi AP/Repeater/Extender is mainly used for providing free Wi-Fi service in large areas
such as factories, communities, streets, etc. The AP/Repeater/Extender can take an existing 2.4GHz wireless signal,
repeat it, and extend it to a longer range where it is too far away for the router or access point to reach. And it can
support 2.4G transmission speeds of up to 300 Mbps. It has two external antennas, providing even better wireless performance,
transmission rates, and stability. Automatically avoids channel conflicts using its channel selection feature.

Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments.
For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.

Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool,
school, park, playground, or outdoor parking lot.

Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance,
allowing it to operate reliably even when exposed to harsh outdoor conditions or temporary rain.

7dBi Omni-Directional Antenna
The high-gain antenna panel features two built-in 7dBi omni-directional antennas, engineered to deliver WiFi signal
strength across a 360° coverage area. This ensures consistent wireless performance in all directions,
providing reliable connectivity for a broad outdoor space.

Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)

In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi-Fi Extender with Active/Passive PoE,
WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High-Gain Antennas

AC1200 Dual-Band Range Extender: With Wi-Fi 5 technology at its core, the WAVLINK outdoor AP keeps you
connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming,
and bandwidth-heavy activities. Whether you're in the yard, by the pool, or in a parking lot,
relish dependable Wi-Fi 5 connectivity wherever you are.

Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be
consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and
also supports active PoE. You can use and connect your own active switch.

IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation
in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range
of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.

Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network.
Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one.
AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.

Outdoor Access Point: Providing ultra-fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band,
the outdoor Wi-Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices.
Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission.
(Coverage may vary based on the actual environment.)

Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 200m(Change with the Actual Environment)

In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
