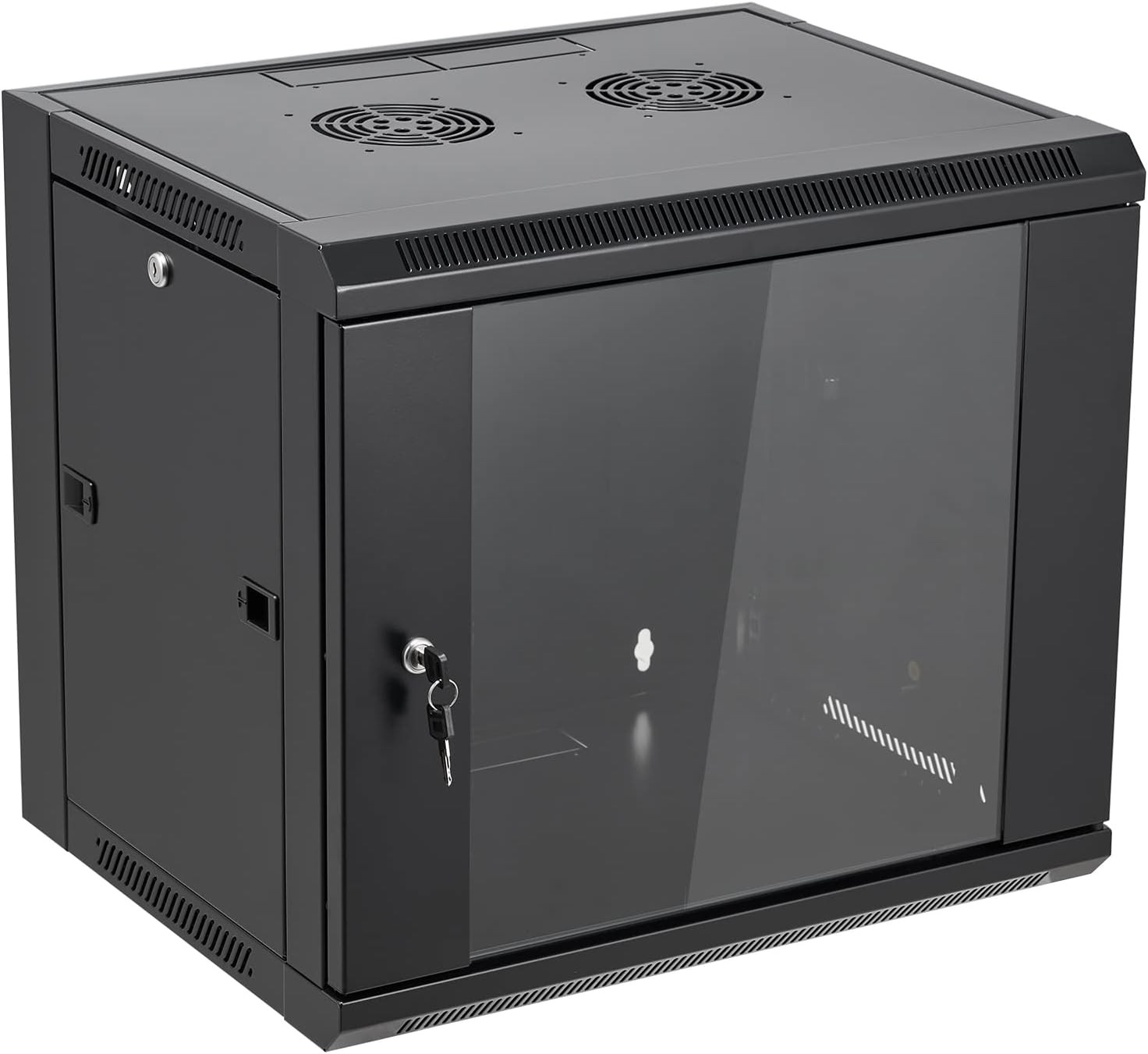

9U Wall Mount Server Cabinet Network Rack Enclosure Locking Glass Door

Price: US $223.99

9U Wall Mount Server Cabinet Network Rack Enclosure Locking Glass Door

Product description

Tedgetal SE Wall Cabinet is a perfect choice for the installation of both cabling and equipment, suitable for a wide range of applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment. Support up to 60kgs (133lbs) of networking equipment. It features removable side panels for easy access to cables and connection.

Flat packaged for protection and storage with simple and quick assembly.

Dimension: Width 22.4", Depth 17.7", Height 14.3" (6U)/ 19.7" (9U) / 25" (12U)

Loading Capacity: 133lbs(60kgs)

Material (Front Door): 5mm Tempered Glass Door with SPCC T1.2mm

Material (19" Rails): SPCC T1.2mm

Material (Others): SPCC T1.0mm

Two Ways to Hang to Wall

1. Hang with Wall Plate (note: wall plate is not included)

2. Hang with Mount Bolts (4pcs of mount bolts are included)

Suitable for Standard 19" Rack Mount Equipment

1. Network equipment: patch panel, switch, shelves and so on

2. Audio & Video system

All Accessories for Assembly are Included

Including:

10pcs of M6 Screws and Cage Nuts

4pcs of Mount Bolts

1pcs of Security Torx Wrech

8pcs of M6 Screws

12pcs 0f 10-32 Screws

3pcs of Keys

1pc of Wall Installation Template

2 sets of Earthing Kits

Installation Manual

Add to Cart Customer Reviews 4.3 out of 5 stars 281 4.7 out of 5 stars 158 — — 3.8 out of 5 stars 62 4.7 out of 5 stars 239 Price — no data — no data — no data — no data $139.99$139.99 — no data Rack Units 6U/9U/12U 6U/9U/12U 2U/4U 1U/2U 15U Width 22.4" 19.7" 19.3“ 19" 19.29" Depth 17.7" 18" 4.8"/10.5" & 13.8"/19.4" 11.9" & 15.9" 20" Loading Capacity 133lbs (60kgs) 230lbs(100kgs) 22lbs(10kgs) & 33lbs(15kgs) 22lbs(10kgs) & 50lbs(22kgs) 1000lbs(450kgs) Flat Pack or Assembled Flat Pack Flat Pack Flat Pack / Flat Pack

[Size]: 19.7" H x 22.4" W x 17.7" D. Total Usable Space of 13.75" front to back.
[Heavy Duty]: Tedgetal SE series wall mount cabinet is made from SPCC cold-rolled steel with maximum loading capacity of 133lbs(60kgs) for equipments.
[Security and Protection]: Locking front door and side panel prevent unauthorized access to equipments.
[Easy Access]: Quick open side panel for easy maintenance.
[Warranty]: 3 years limited warranty and lifetime technical supports.

Number of Items 1 Item Dimensions D x W x H 17.7"D x 22.4"W x 19.7"H Size 19.7" H x 22.4" W x 17.7" D Item Weight 19.5 kg Compatible Devices Server Mounting Type Wall Mount Weight Capacity Maximum weight: 133 pounds Color 9U Product Dimensions 17.7"D x 22.4"W x 19.7"H
