Description:
LoRa 32 is a classic IoT development board, loved by developers and makers. The V3 version retains LoRa, OLED display, and other functions. It is a good option for smart cities, farms, homes, industrial control, house , meter reading, and IoT developers. Feasture: -1262 LoRa chip.
-Type C interface with a complete voltage regulator, ESD protection, short circuit protection etc.
-Onboard SH1.25-2 interface, integrated li management system (charge and discharge management, overcharge protection, bat power detection, -USB / bat power automatic switching).
-Integrated W-F, LoRa, BLE three network connections, onboard W-F, BlE dedicated 2.4GHz metal spring antenna, reserved interface for LoRa use.
-Onboard 0.96-inch 128*64 dot matrix OLED display to display debugging information, battery power etc.
-Integrated 2102 USB to serial port chip, convenient for program downloading, and debugging information printing. Package Included:

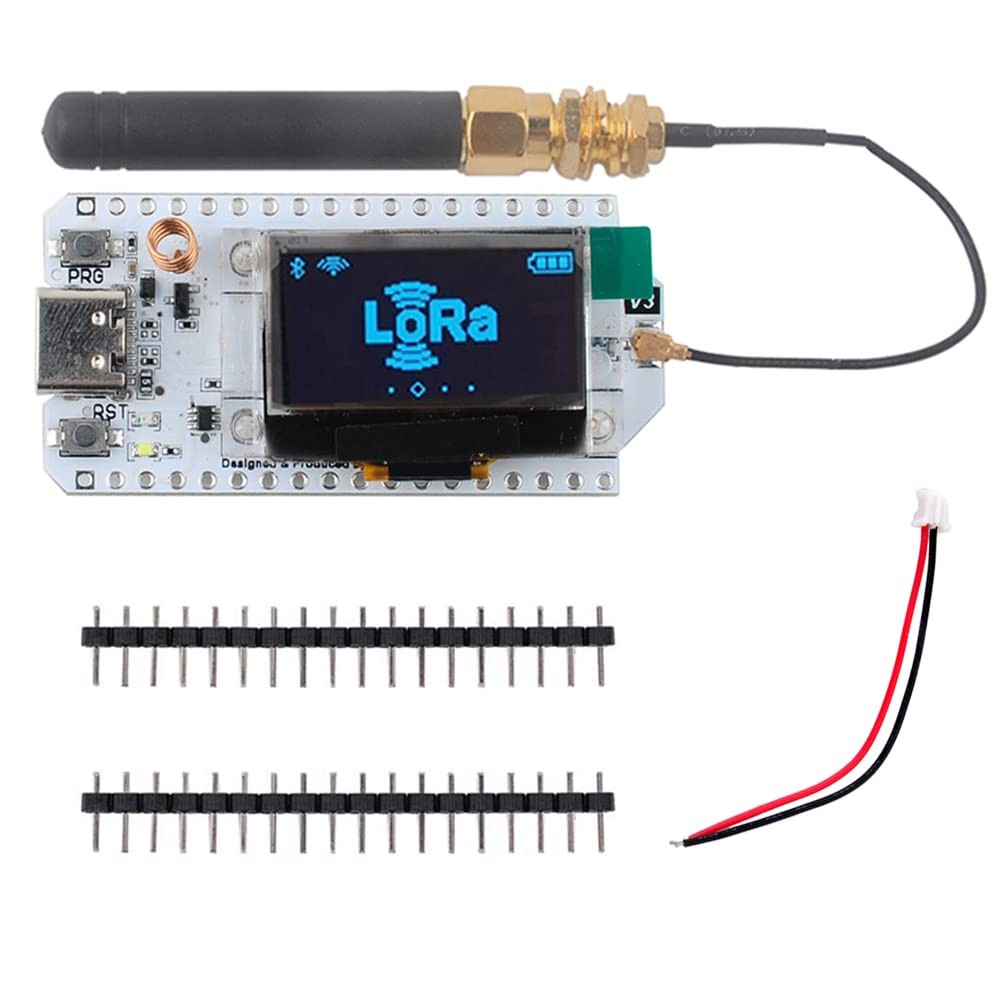

1 x LoRa 32 V3 board
1 x lora antenna 915This LoRa board comes unassembled, soldering is required, not equipped with lith-bat
When you use lora esp32 915MHz, you need to use 2pcs together,receiving and another sending
You will receive, 1pcs 915MHz esp32 lora V3, 1pcs 915mhz lora antenna,and 1pcs 2pin 1.25mm connector
LoRa V3 board are an improvement over the V2 version, but they are not a
LoRa 32 V2 use ESP32-D0WDQ6 MCU, but the V3 is ESP32-S3FN8, so pinout is different. The APIs used with the libraries are different, so programs written for V2 do not compile V3
Support type-A to type-C cable only, not type-C to type-C cable
