1.Main Parameters
Product Name

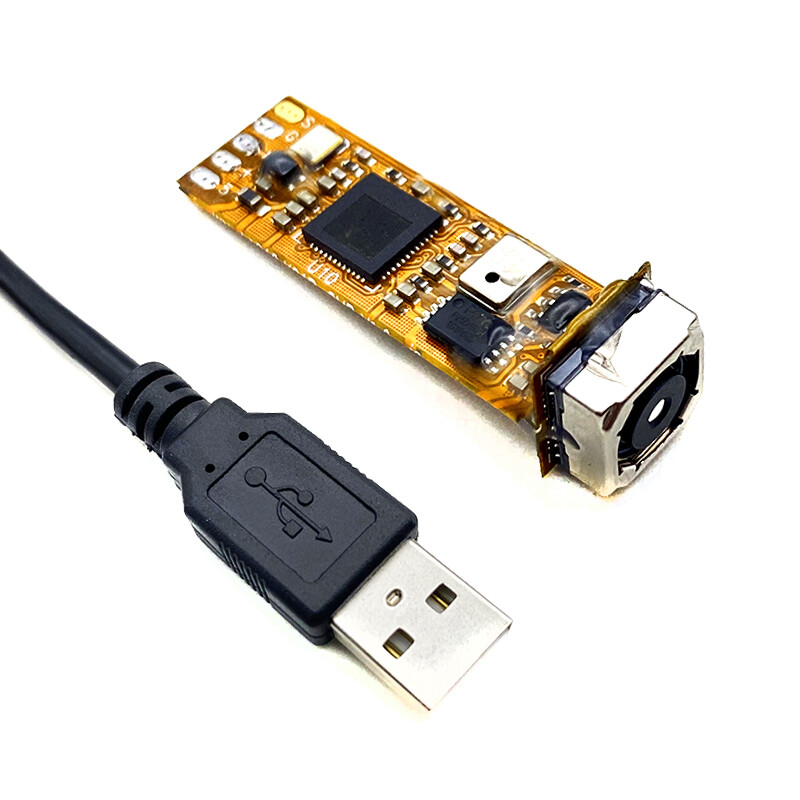

8MP USB2.0 Camera Module
Product Code
WN-L1910.K91R V2.0
Module Size
35.45*10mm
Image Sensor
1/3.2-inch IMX179 CMOS Sensor
Max. Resolution
3264H x 2448 V
Pixel Size
1.4*1.4μm
Output Format
MJPEG, YUY2
Field of View
75°
Lens
EFL: 3.79mm, F.NO: 2.0, 5G1P+IR 650nm
Audio Input
Digital Microphone
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Dynamic Range
Up to 72.5dB
Output & Power Supply
High Speed USB2.0
Interface
5PIN Welding Spots
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
3264x2448 (8MP)
15FPS
2592x1944(5MP)
15FPS
2048x1536(2K)
15FPS
30FPS
1600x1200 (UXGA)
30FPS
1280x720(720P)
30FPS
800x600(WVGA)
30FPS
640x480 (VGA)
30FPS
YUY2
3264x2448 (8MP)
15FPS
2592x1944 (5MP)
15FPS
30FPS
1600x1200 (UXGA)
30FPS
640x480
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
DC 5V
2
DM
USB2.0 Data-
3
DP
USB2.0 Data+
4
GND
Ground
5
S
Shot
4.Working Conditions
Working Voltage
DC 5V
Working Current
110mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
