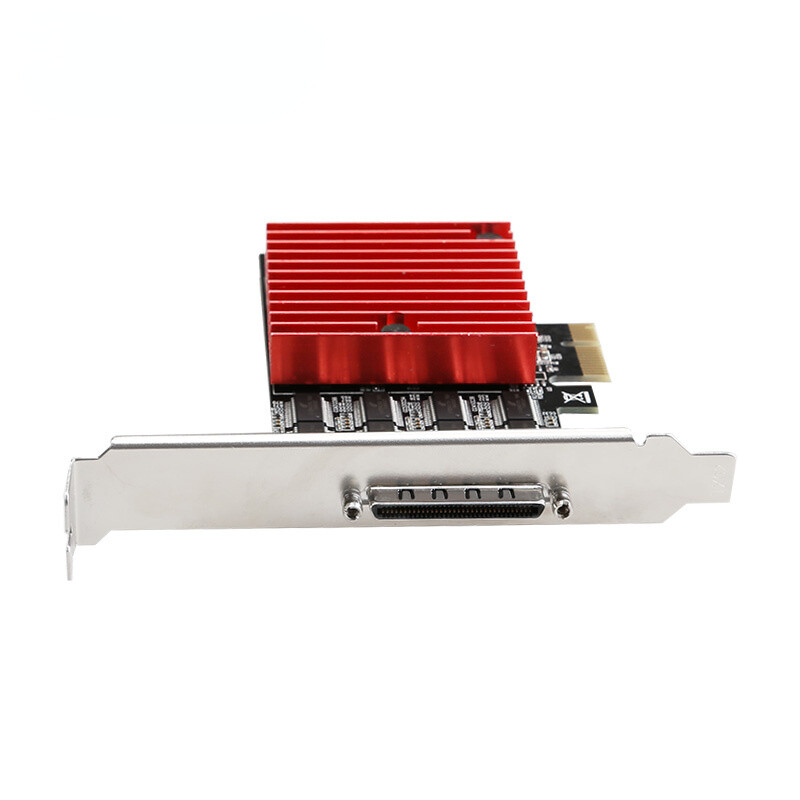

8 Port Riser Card 8 X DB 9Pin Serial Port RS232 Serial Card DR62 Controller Card

Price: CN $62.99

Store CategoriesStore Categories

Other

8 Port Riser Card 8 X DB 9Pin Serial Port RS232 Serial Card DR62 Controller Card

Product Description

8 Serial Port Card PCI Express Card for Computer Accessories with Chipset ASIX 9900 Expansion Card The TXB107 8 Port RS323 Serial PCI Express Card turns a PCI Express slot into eight RS232 (DB9) serial ports. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Applications • Self-service automated machines and kiosks to control serial devices such as touch screens, bar code scanners, receipt printers, label printers Features • 8 high speed RS-232 serial ports with data transfer rate up to 920 Kbps • Breakout dongle cable included • 256-byte depth FIFO per transmitter and receiver • Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND • Supports Auto-hardware flow control and Auto-software flow control to reduce CPU loading • Compliant with PCI Express base specification revision 1.1 • Native single-chip, single lane PCI Express Hardware Bus Type PCI Express Card Type Standard/Low Profile Chipset ID ASIX – MCS9900CV-AA Industry Standards PCI Express Base Specification Rev. 1.1 Interface Serial Port Style Dongle (Included) Ports 8 Performance FIFO 256 Bytes Data Bits 5,6,7,8,9 Stop Bits 1, 1.5, 2 Parity Even, Odd, None, Space, Mark Max Baud Rate 920Kbps Maximum Data Transfer Rate 920Kbps Protocol RS-232 Connector(s) Connector Type(s) 1 - PCI Express x1 Male External Ports 8 – DB-9 (9 pin, D-Sub) Male Software OS Compatibility Windows® 7, 8.x, 10 Windows Server® 2008 R2, 2012, 2016 Linux 2.6.31 to 4.11.xLTS Versions only Special Notes /Requirements System and Cable Requirements PCI Express enabled computer with an available PCIExpress x1 slot or higher (x4, x8, x16) Environmental Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Physical Characteristics Product Height 120 mm Product Length 72 mm Product Weight 252 g Product Width 22 mm What's in the Box 1 – 8 Port RS232 PCIe Card 1-8 Port DB9 breakout cable 1 - Driver CD
