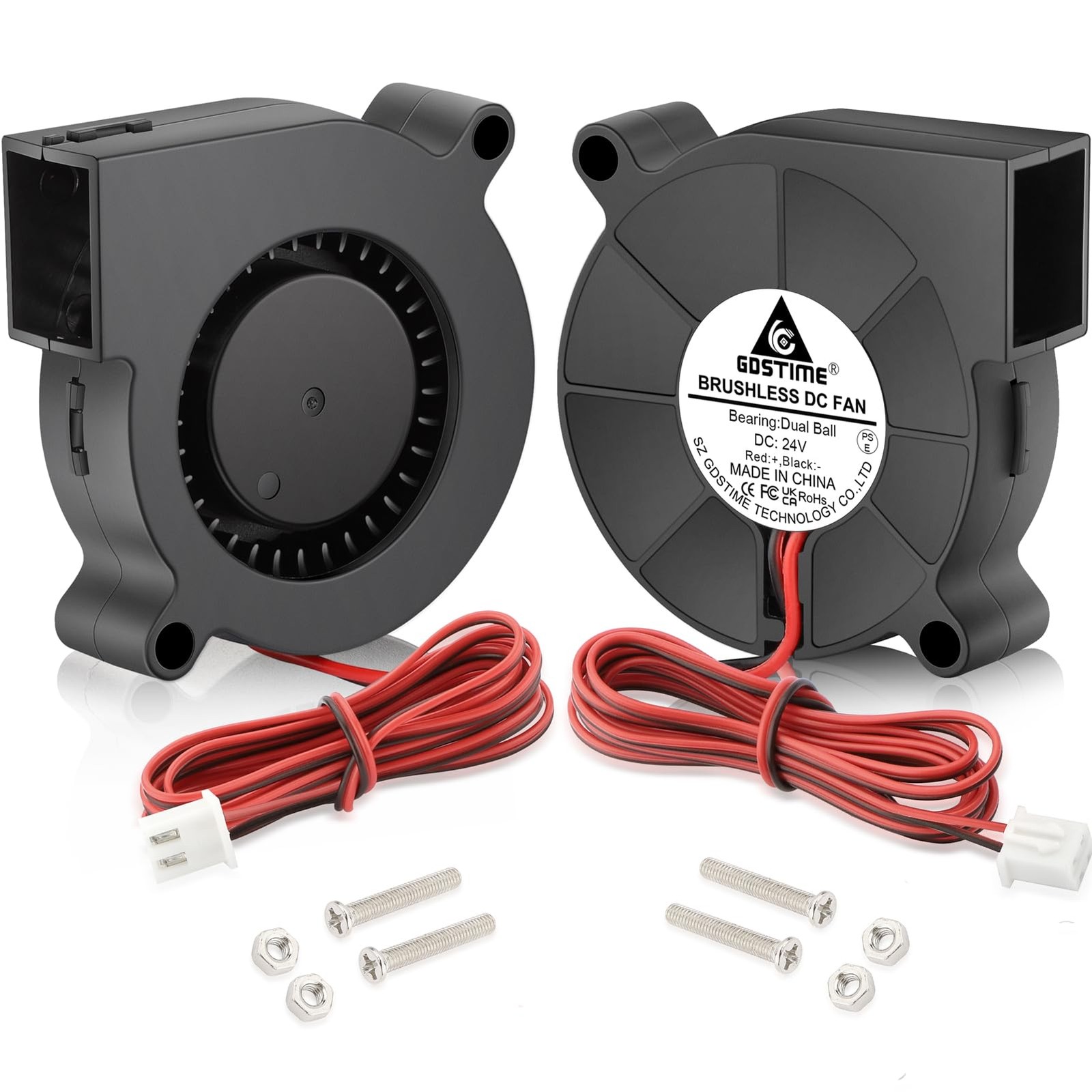

50mm 5015 Blower Fan 24V
The blower fan is constructed of PBT plastic which meets UL 94 flammability standards.
These small 50 mm brushless dc blower cooling fan is often used in 3D printers, spot cooling heat sinks, it also can cool down humidifier, humidor, aromatherapy, heaters, small PC inside closet and more; or other small appliances series repair replacement, These fans are also used to cool down heating elements and so on faster.
Specifications:
Fan Size: 50x 50x15mm
Air Intake Size: 32.5mm
Ar Outlet Size: 19.5x15mm
Mounting Spacing: 2.36 in
Bearings: Dual Ball
Rated Voltage: 24V DC
Operating Voltage: 14V to 26V
Rated Current: 0.1 Amp
Operating Temperature: 14℉ to 175 ℉
Power: 2.2 Watt
Fan Speed: 6000 RPM ±10%
Airflow: 4.42 CFM
Noise Level: 42.8 dBA
Air Pressure: 0.79 In H₂O
Connector: XH2.54-2Pin
Cable Length: 3.3ft (100cm)
Life Span: 50,000 hours
Net Weight: 30g / 1.06oz
Package List:
2x 5015 blowers
4x mounting screws and nuts
【Efficient Heat Dissipation】24 Volt 50x15mm blower fan, ideal upgrade/replacement 5015 fan for 3D printers (hot end or part cooling), or replacing noisy or broken 24v fans in small humidifiers, aromatherapy diffusers and other 24V applications
【Dual Ball Bearing】Built-in high end pure copper coil dual ball bearings; the blower can run continuously for 50,000 hours at high speeds without hassle or concern; ensures a good balance of airflow and stable operation
【XH2.54-2Pin Connector】The 2-pin connector with 1-meter (3.3 ft) wire length allows for flexible adjustment of the installation position; make sure "+" (Red wire) and "-" (Black wire) poles are in right place and match up to your 3d printer motherboard
【5015 Blower Fan 24V Specs】Size: 50 x 50 x 15 mm (1.97 x 1.97 x 0.59 in) | Hole to Hole Distance: 60 mm (2.36 in) | 24V 0.1A | Power: 2.2 W | Speed: 6000 RPM ±10% | Noise: 42.8 dBA | Airflow: 4.42 CFM | Static Pressure: 0.79 In H2O | PBT Plastic Material
【Easy to Use】 Includes 2Pcs 1-meter wire length version 50 mm x 15 mm blower fans 24v 2-pin; 4pcs screws and nuts; Its 50 mm size makes it ideal for tight spaces; Opearating Voltage: 14 to 26V (If over 26v, it also can wirk, but will affects the fan life)
