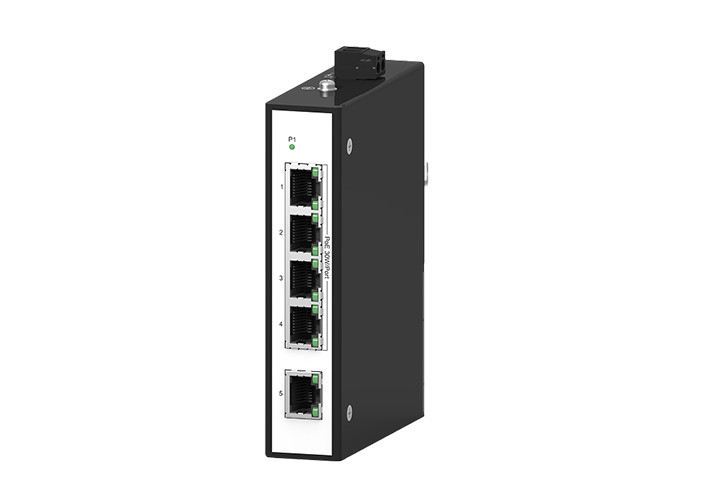

LS3205P-T-4TPOE Industrial DIN Rail Non-Managed Switch

The LS3205P-T-4TPOE is an industrial-grade DIN rail non-managed Ethernet switch with 5 10/100Base-TX ports, including 4 supporting PoE/PoE+, designed for harsh industrial environments.

Key Features

• 5 10/100Base-TX Ethernet ports, 4 supporting PoE/PoE+
• Complies with IEEE802.3af/at PoE standards, maximum total output power 120W
• Auto-negotiation for 10/100Mbps, full/half duplex, MDI/MDIX adaptive
• Overload and reverse polarity protection
• Plug and play, easy installation
• IP40 protection, fanless design for silent operation
• Wide operating temperature: -40℃ to 75℃
• Industrial-grade power design, flexible input options
• DIN rail mounting by default, optional wall mounting

Network Interfaces

• 5 Ethernet ports (10/100Base-TX), 4 with PoE/PoE+ support

Power

• Input: DC48V (48~57VDC)
• Power consumption: <5W without PoE, max 120W with PoE
• PoE: IEEE802.3af/at, single port 15/30W, 4-wire power (pins 1/2+, 3/6-)
• Protection: overload and reverse polarity

Technical Specifications

• Ethernet Standards: IEEE 802.3i (10Base-T), 802.3u (100Base-TX/FX)
• MAC Table: 1K
• Priority Queues: 4
• Jumbo Frame: 1518 bytes
• Forwarding: Store-and-Forward
• Switching delay: <10μs
• Switching bandwidth: 1.2Gbps

Mechanical

• Dimensions (W×H×D): 27.5 x 122 x 95 mm
• Housing: Metal
• Cooling: Fanless, natural convection
• Protection: IP40
• Mounting: DIN rail (default), optional wall mount
• Weight: ≤1kg

Environment

• Storage Temperature: -40~85℃
• Operating Temperature: -40~75℃
• Humidity: 5%~95% non-condensing

Certification

• EMI: FCC Part 15, CISPR (EN55022) Class A
• EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS)
• ESD: Contact 6 kV, Air 8 kV
• RS: 10 V/m, 80MHz~1GHz
• Signal Line: 1 kV, Power Input: 2 kV
• Power Input: 2kV (line/ground), 1kV (line/line)
• 10 V, 150kHz~80MHz
• Shock: IEC60068-2-27
• Drop: IEC60068-2-32
• Vibration: IEC60068-2-6
• Safety: EN60950-1

Warranty

5 years
