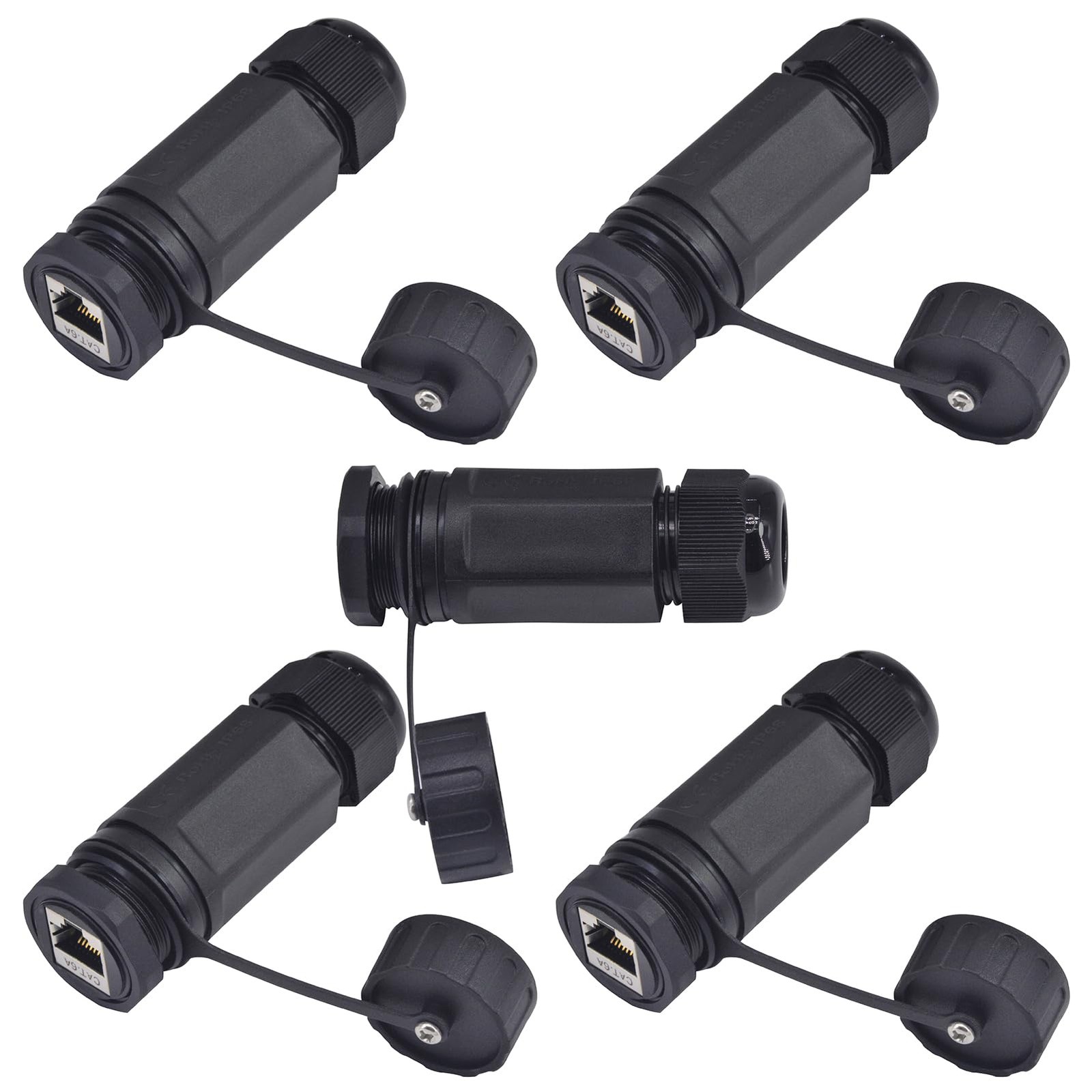

5PCS Panel Mounting Shielded RJ45 CAT6A Waterproof Connector M25 IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Double Head Adapter with Waterproof/Dust CapAbout the Product
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6/6A patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications:
INGRESS PROTECTION: IP68（Waterproof and dustproof）
Thread: M25*1.5
Color: Black
Number of cores: 8 PIN + Shielded Copper Shell
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (0.3～7.8) mm
Connector transmission classification: CAT5, CAT5E, CAT6, CAT6A
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC500V 50HZ or 60HZ for 1 minute
resistance: ＜10mΩ
Service Life: more than 1000 Insertions and Removals
Material:
Shell: nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
5x M25-CAT6A Shielded Waterproof RJ45 Connector
Key Features
- CAT6A standard provides performance of up to 500 MHz and backwards compatible with CAT5/CAT5E/CAT6. Transfer speed up to 10-Gigabit.
- The shielding layer reduces signal loss, effectively blocks external electromagnetic interference(EMI) and radio frequency interference(RFI), minimizes crosstalk, ensures stable signal transmission, and enhances network security. It is particularly suitable for use in environments with complex electromagnetic conditions, maintaining high signal quality even over long-distance transmissions.
- The Waterproof RJ45 Connector are IP68 Compliant. Prevent the network parts from moisture, dirt and insects for quality connections. Perfect for external holiday lighting displays, IP security cameras, industrial applications.
- Apply to cable size: Ø4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
