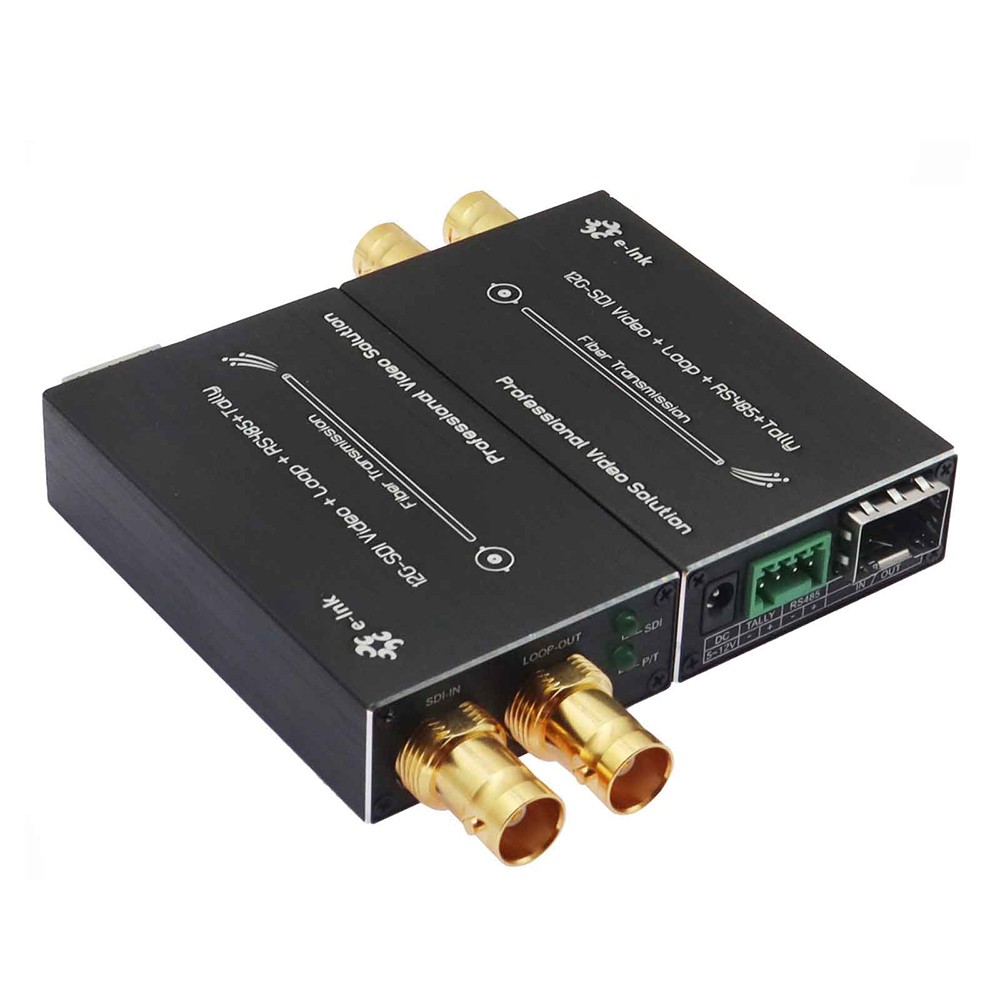

4K 12G-SDI Fiber Converter with Tally RS485 20kmE-link 12G-SDI Fiber Converter
LNK-M12G-1V1T1D Series Mini-type 12G-SDIFiber Converter supports 1Ch 12G Video(audio embedded), 1Ch Tally signal and 1Ch Backward RS485transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output.
4K 12G-SDI Fiber Converter
Overview
The LNK-M12G-1V1T1D Series represents a cutting-edge4K 12G-SDI fiber convertersolution, engineered to meet the demanding requirements of modern broadcast and professional video transmission. This advancedfiber optic transmission systemdelivers exceptional performance for4K UHD contentwhile maintaining full backward compatibility with existing HD-SDI infrastructure.
This sophisticated12G-SDI fiber converterintegrates multiple signal types through a single fiber connection, combining one channel of4K 12G-SDI videowith embedded audio, onetally signalfor camera status indication, and one channel ofbi-directional RS485 datafor comprehensive device control. The integrated12G-SDI loop-through outputenables real-time local monitoring while maintaining uninterrupted primary signal transmission to the control room or production facility.
Designed as a compactmini-type fiber converter, the system operates through matched transmitter and receiver units, providing reliablelong-distance transmissionwhile preserving original signal quality. The device supports comprehensive video formats including4K UHD (3840×2160@60Hz), 1080p, 1080i, and 720p resolutions, making it suitable for both current4K production workflowsand legacy HD systems.
Thisprofessional 4K fiber converteris particularly valuable for space-constrained environments such as outside broadcast vehicles, mobile production units, and compact equipment racks, where its miniature form factor doesn’t compromise onbroadcast-grade performance. The unit’s robust construction and plug-and-play operation ensure quick deployment in temporary field production setups and permanent installation scenarios alike.
Multi-Channel Audio Embedding Capability
Each 12G-SDI interface carries 8 channels of embedded digital audio, enabling synchronized audio-video transmission without separate audio cabling infrastructure.
4K 12G-SDI Fiber Converter
Advanced Signal Integrity Protection
Built-in automatic cable equalization technology compensates for signal degradation in long copper runs, maintaining pristine signal quality throughout the transmission path.
4K 12G-SDI Fiber Converter
Application
▶ Outside Broadcast & Live Event Production
Deployed in OB vans, sports arenas, and concert broadcasts, the converter ensures low-latency transmission of 12G-SDI video with real-time tally control and PTZ camera management.
▶ Broadcast Studio & Remote Production Systems
Used for camera-to-control room links, the device delivers uncompressed 4K video with SMPTE-compliant signal integrity.
▶ Large-Venue AV & Corporate Broadcasting
Ideal forconference centersanddistance learning facilities, the system transmitsmulti-channel audio-embedded videowithRS485 serial controlfor AV device management. Thelocal loop-outenables seamless signal monitoring.
▶ Critical Video Monitoring & Surveillance
Applied in transportation hubs and industrial complexes, the converter provides interference-free fiber transmission with extended temperature tolerance.
Why Choose Us
Comprehensive Standards Compliance
Full support for SMPTE standards including 12G-SDI (ST-2082-1), 6G-SDI (ST-2081-1), 3G-SDI (ST-424), and legacy HD/SD formats ensures broad system interoperability.
Precision Signal Retiming System
Integrated reclocking circuitry automatically locks to all SMPTE data rates from 11.88Gbps down to 270Mbps, including critical divide-by-1.001 subrates for broadcast applications.
Universal Camera System Integration
Direct compatibility with 12G/6G/3G-SDI camera systems enables seamless integration into existing and new production environments without signal conversion.
Extended Fiber Transmission Performance
Flexible deployment options with transmission distances configurable from 10km to 80km over single-mode fiber optic cabling.
4K 12G-SDI Fiber Converter
Technical Indexes
Formats
SupportsST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible
Input
1 x 12G-SDIon BNC
Output
1 x LCoptical fiber
1 x 12G-SDIloop-out on BNC
Supported Resolution
HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range
3840*2160@60Hz
Inputcable specification
≤70m@12G SDI Belden 1694A
Output cable specification
≤70m@12G SDI Belden 1694A
Data type
Backward Tally
Data type
Backward RS485
Optical transmission bandwidth
270MHz～12GHz
Power
5-15VDC
Power Consumption
2W(Max.)
Dimensions(LxWxH)
80x 40x 20(mm)
Storage Temperature
-40℃～80℃
Operating Temperature
-40℃～85℃
Ordering Information
Model
Description
LNK-M12G-1V1T1D-20
Mini-type 12G-SDIto Fiber Converterwith Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by usPaymentWe accept
