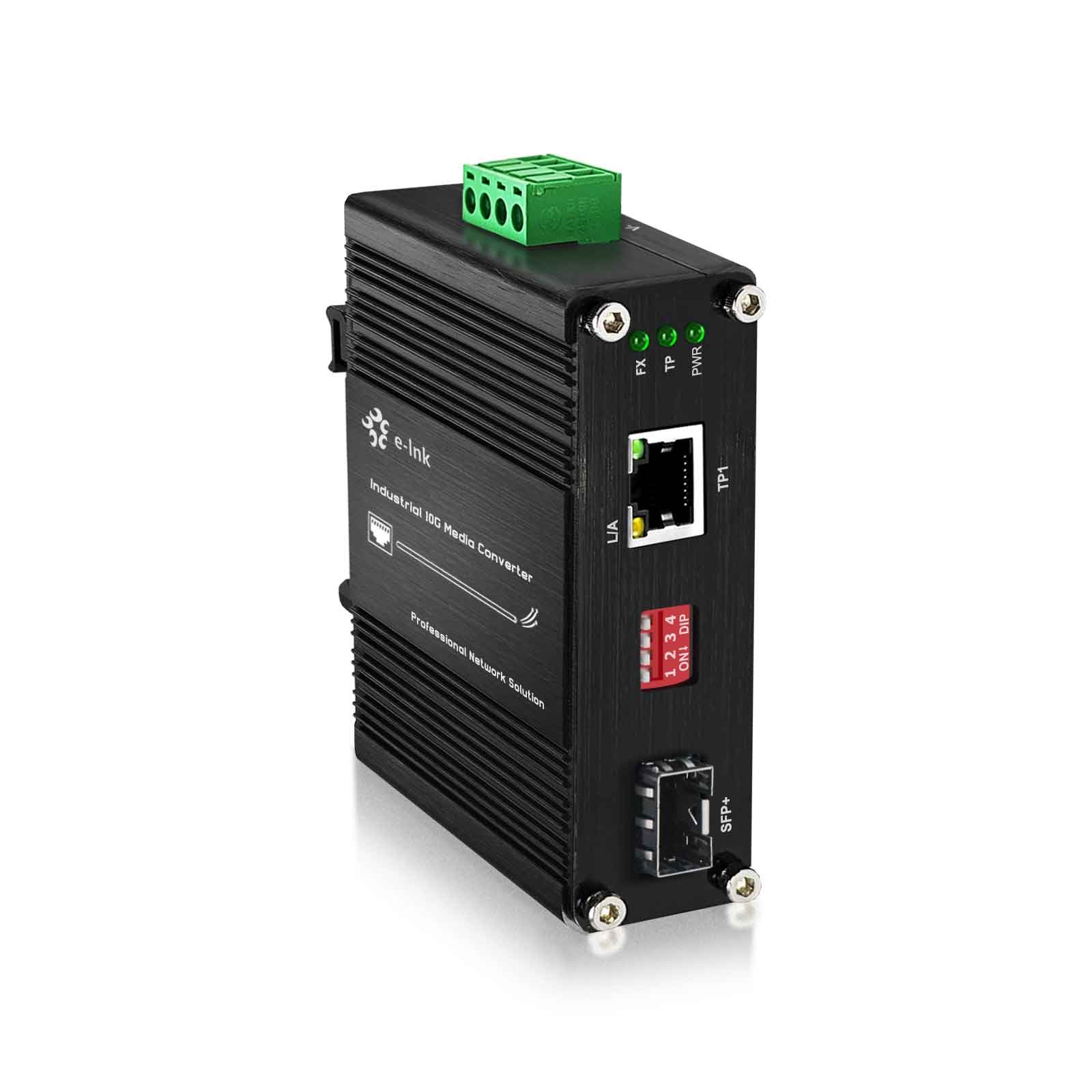

30W PoE++ Industrial Gigabit 10G 802.3bt Media Converter (10GBASE-T to SFP+) PoEIndustrial 10G SFP+ Ethernet Media Converter (RJ45 + SFP+) – LNK-IMC10G-SFP+
10G 1SFP+1RJ45 Ethernet to Industrial 10G Media Converter, Hardened Industrial 10G Converter with Redundant Power
Overview
LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The ZP-IMC10G-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80 degrees C.
- 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
- IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
- Extensive LED indicators for network diagnostics
- 12~48VDC Terminal Block Power Input
- Supports DIN-Rail & Wall-mount installation
- Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Application
Data Centers & Server Rooms– 10G backbone copper-to-fiber extension
Telecom & Metro Networks– Reliable fiber uplink for aggregation and access layers
Industrial & Smart City– Harsh environment connectivity for ITS, security, energy, and automation
Campus & Enterprise Networks– High-speed interconnection between switches and core routers
Package does not include power supply and optical modules
Technical IndexesEthernetStandards:IEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3bz 2.5G/5GBASE-TIEEE 802.3an 10GBASE-TIEEE 802.3ae 10Gbps EthernetIEEE 802.3x full-duplex flow controlIEEE 802.3az Energy Efficient Ethernet (EEE)Forward & Cables:10G/5G/2.5G/1G/100M BASE-T:
10G – Cat 6A/7
5G – Cat 6/6A/7
1G/2.5G – Cat 5e/6/6A/7
100M – Cat 5/5e/6/6A/7
Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, or 62.5/125μm multi-mode fiber optic cable, up to 300m
9/125μm single-mode fiber optic cable, up to 80km
Processing Frame:16KAddress Table:9K entries, automatic source address learning and agingInterfaceConnector:1x RJ45Optical Port:1 x SFP+EnvironmentalOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsElectrical and MechanicalInput Power:12~48VDC,Redundant Power (4-pin Terminal Block)Power Consumption:5W MaxProtection:Power Input Overload:Automatic ResettableReverse Polarity:PresentDIP Switch4-digit DIP switch functionDIPFunctionSettingsSW 1ReservedON – ReservedOFF – ReservedSW 2ReservedON – ReservedOFF – ReservedSW 3ReservedON – ReservedOFF – ReservedSW 4ReservedON – ReservedOFF – ReservedNote: DIP Switch’s function can be customized based on client’s requirements.LED Indicators:PWR:Power StatusL/A:Link/Activity at Ethernet PortTP:Ethernet StatusFX:SFP+ Fiber PortStatusDimensions (WxDxH):95x 70 x Options:DIN-Rail/Wall-mountRegulatory ApprovalsISO9001, CE, RoHS, FCCEN55022:2010+AC: 2011, Class AEN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2013EN55024:2010IEC 61000-4-2: 2008 (ESD)IEC 61000-4-3: 2010 (RS)IEC 61000-4-4: 2012 (EFT)IEC 61000-4-5: 2014 (Surge)IEC 61000-4-6: 2013 (CS)IEC 61000-4-8: 2009 (PFMF)Ordering 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media ConverterSFP Options► SFP+option. Please select your SFP+on our SFP+Options Page(Industrial SFP).► SFP+module is to be purchased separately.Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.Power Options► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block► Power Supply is to be purchased usPaymentWe accept
