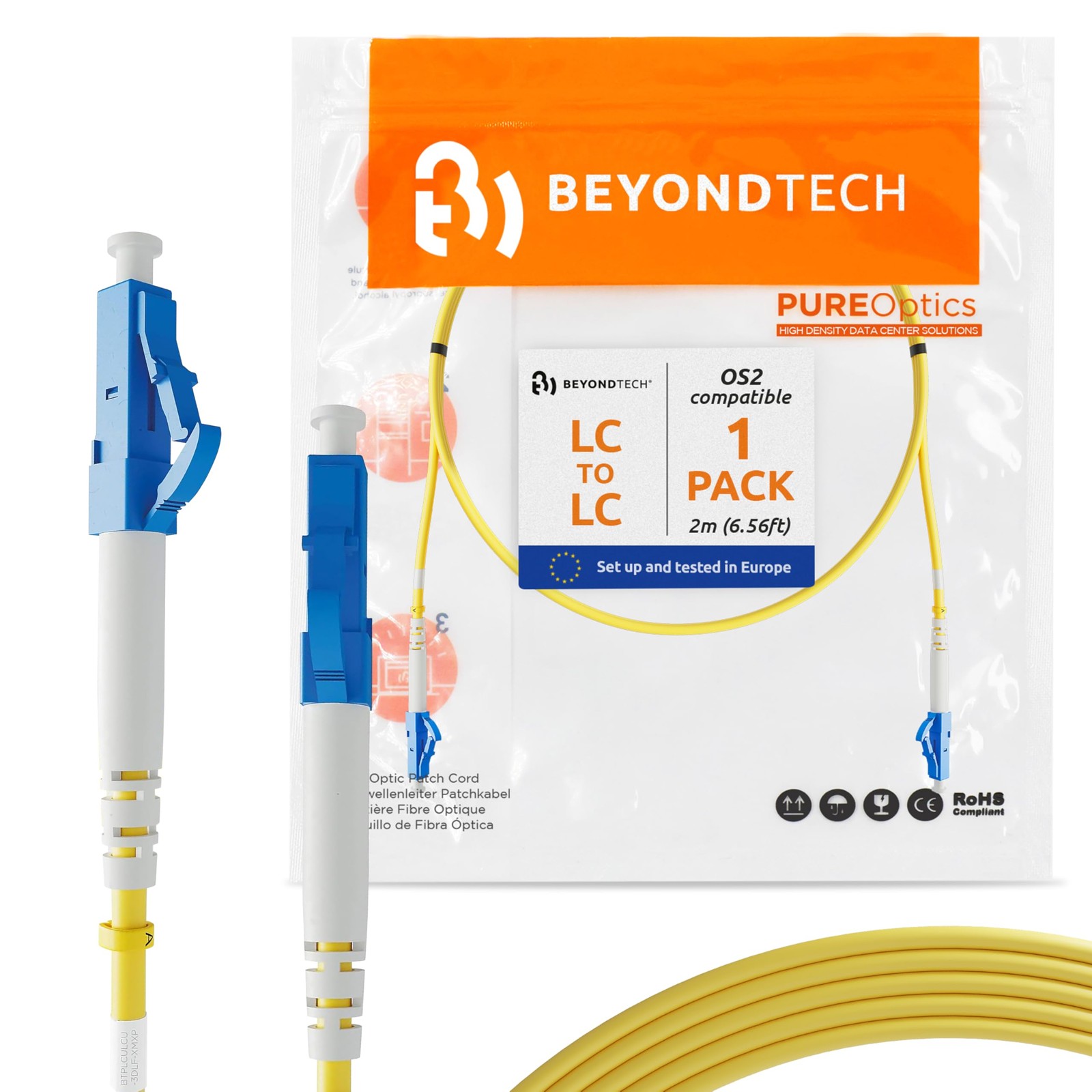

LC to LC Fiber Patch Cable Single Mode Simplex - 2m (6.56ft) - 9/125um OS2 100G / 3.0mm LSZH Insensitive (1 Pack) PureOptics Cable SeriesProduct GalleryProduct Specifications

• high-quality and Insensitive LC to LC Fiber Grade: G.657.A2 Patch Cable Single mode 9/125 OS2 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
• This Fiber OS2 9/125 LC/LC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
• This SM fiber has an yellow color jacket with a 3.0mm diameter. OS2 cables have a 0.36 dB/km attenuation at 1550 nm - 0.22 dB/km at 1310 nm.
• This LC to LC Single mode Simplex OS2 fiber patch cords operate at -40ºC to +75ºC and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
• Reduced bend loss sensitivity versus standard telecom fiber patch cables: Optimal for Flexible Installations in indoor cable set-ups they could now be used in walls, ceilings, conduits (FTTH) and other bumpy surfaces without worrying about fiber bends.

Key Features

Easy installation

OS2 9/125 LC to LC Fiber Patch cable simplify the installation process and reduce the total cost of ownership of your project, due to pre-terminated fiber intrinsic plug-and-play characteristic.

10 Gigabit Performance

OS2 Singlemode laser optimized fiber patch cords are designed to be used in LAN, WAN and SAN 10GB networks and is able of handling the most challenging telecommunications data transmission requests.

Properly tested

Each Fiber patch cord is individually and rigorously tested and certified to be within accurate optical insertion loss.

Cable Specifications:

Wavelengths: 1310 and 1550
Yellow Jacket
Bend Radius: Insensitive G.657.A2/B2 (7.5mm)
Cable Jacket: 3.0mm LSZH
Operating Temperature: -4° to 158° F (-20° to +70° C)
Core:OS2 9/125
Standard Zip Cord
OS2 9/125 fiber conforms to ITU-657 A2/B2

Multiple Sizes Available

LC/LC connector (Fiber Patch Cable)
LC LC Patch Cord feature precision hold, plastic ferrule. They comply with all ANSI/EIA/TIA standards.
LC to LC Singlemode Simplex are used to connect LC / LC devices and are suitable for Gigabit Ethernet, video, multimedia, premise installations, fiber optics patch panels, fiber optic transceiver and fiber optic network, industrial, and military applications. Connectors feature dust caps on the tips for protection.
