🎮 Gaming Display Broken? Lines on Monitor? No Power?
Don't let a cracked screen ruin your gaming sessions or daily workflow! Refresh your monitor instantly with our premium OEM-grade 23.6"/24" LCD replacement panel. Fully compatible with top gaming and office monitor series, restoring original flawless response and colors!

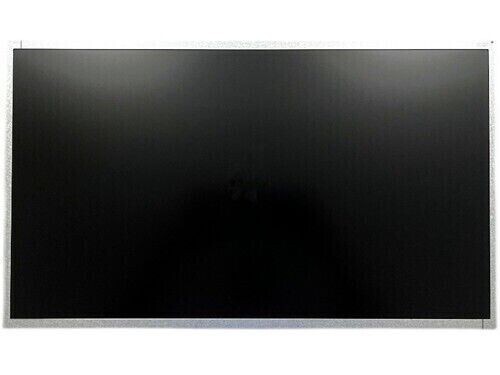

🔥Why Choose Our M236HGE-L20 Replacement Screen?🎯 Multi-P/N & Revision Full Match:100% direct drop-in replacement for Innolux/ChimeiM236HGE-L20. Covers all sub-versions includingM236HGE-L20-CL(with tabs),M236HGE-L20-NO-BEZEL, andRev.C3. Perfectly replaces Acer P/NKL.2360D.002.🖥️ Crystal Clear Full HD Performance:23.6-inch viewing space boasting a standard1920 × 1080 (FHD)resolution and rapid response time, delivering crisp graphics for intensive gaming and professional tasks.🕶️ Matte Anti-Glare Treatment:Features a high-grade 3H hardness matte surface coating. Effectively minimizes annoying light reflections and glare under office or room lighting to eliminate eye strain.🔌 Standard 30-Pin LVDS Protocol:Equipped with a standard30-Pin LVDS (2 channels, 8-bit)interface running on 5.0V stable driving voltage. Direct connection to your original monitor mainboard.🔍 Professional Grade A+ Inspection:Prior to secure packing, every single panel undergoes strict testing to guaranteeZero (0) Dead Pixels, no background horizontal/vertical lines, and perfect backlighting.📊Product Technical SpecificationsSpecificationDetails / ParametersManufacturer ModelInnolux (Chimei Innolux) /M236HGE-L20 SeriesAcer Original P/NKL.2360D.002Screen Size & Ratio23.6 Inches (Often classified under 24" class) / 16:9 WidescreenPhysical Resolution1920 x 1080 (Full HD)Signal Interface & Pin30-Pin LVDS (2ch, 8-bit)Panel Type & SurfaceTN / Matte (Non-Glare, 3H Hardness)Brightness & Contrast250 cd/m² (Typ.) / 1000:1 (Typ.)Voltage & Frequency5.0V (Typ.) / 60Hz Base Drive⚙️Comprehensive Brand & Model Compatibility List
M236HGE-L20 is one of the most widely shipped 23.6"/24" displays in the industry. It natively operates inside or perfectly substitutes hardware across the following brands:
BrandCompatible Monitor Models & Manufacturer Part NumbersAcerGaming/Office Monitors:KG241Q, KG241Qv, KA240HQ, KA240HQBV, V246HQL, V246HQLC series.
Official P/N:KL.2360D.002ASUSMonitors:VP247H, VP247HA, VP247T, VS247H, VS247HR, VE247H (Specific 23.6" production lines).BenQMonitors:GL2460, GL2460HM, GW2470, GW2470H (Cross-interchangeable 24-inch eco-series).AOCMonitors:E2460S, E2460SD, E2470SWH, M2470SWH.SamsungMonitors:S24D300H, S24D300BL, LS24D300 series (Requires original back bracket reuse).Cross-PanelsCan fully replace or mix with: AUO M240HW01 V0 | Samsung LTM236HL01 | BOE HT236FHM-100 | LG Display LM236WH3.⚠️ CRITICAL BUYER NOTICE: Match Variations Before Ordering!
- Sub-Model Variations:M236HGE-L20 has versions with mounting tabs (-CL) and without front bezel frames (-NO-BEZEL). They share 100% identical electronic circuits and 30-Pin sockets. We ship fully cross-compatible versions based on warehouse stock.
- Size Definition Check:This panel size is officially23.6 inchesdiagonal, but frequently marketed by computer brands as a24-inchmonitor. Please match your old screen's physical model number to avoid mismatch.
- Pin Configuration Check:Your old panel must use a standard30-Pin LVDSconnector (NOT 30-Pin eDP). Kindly crosscheck your display motherboard interface before making a purchase.
- Power Safety Caution:Always disconnect the external power adapter line and desktop power box before connecting the new screen to prevent electrostatic discharge from damaging the main ic elements.
- Package Content:1 x 23.6"/24" Replacement LCD Screen Panel (Bare matrix panel only, no stand, casing, or auxiliary cables included).
