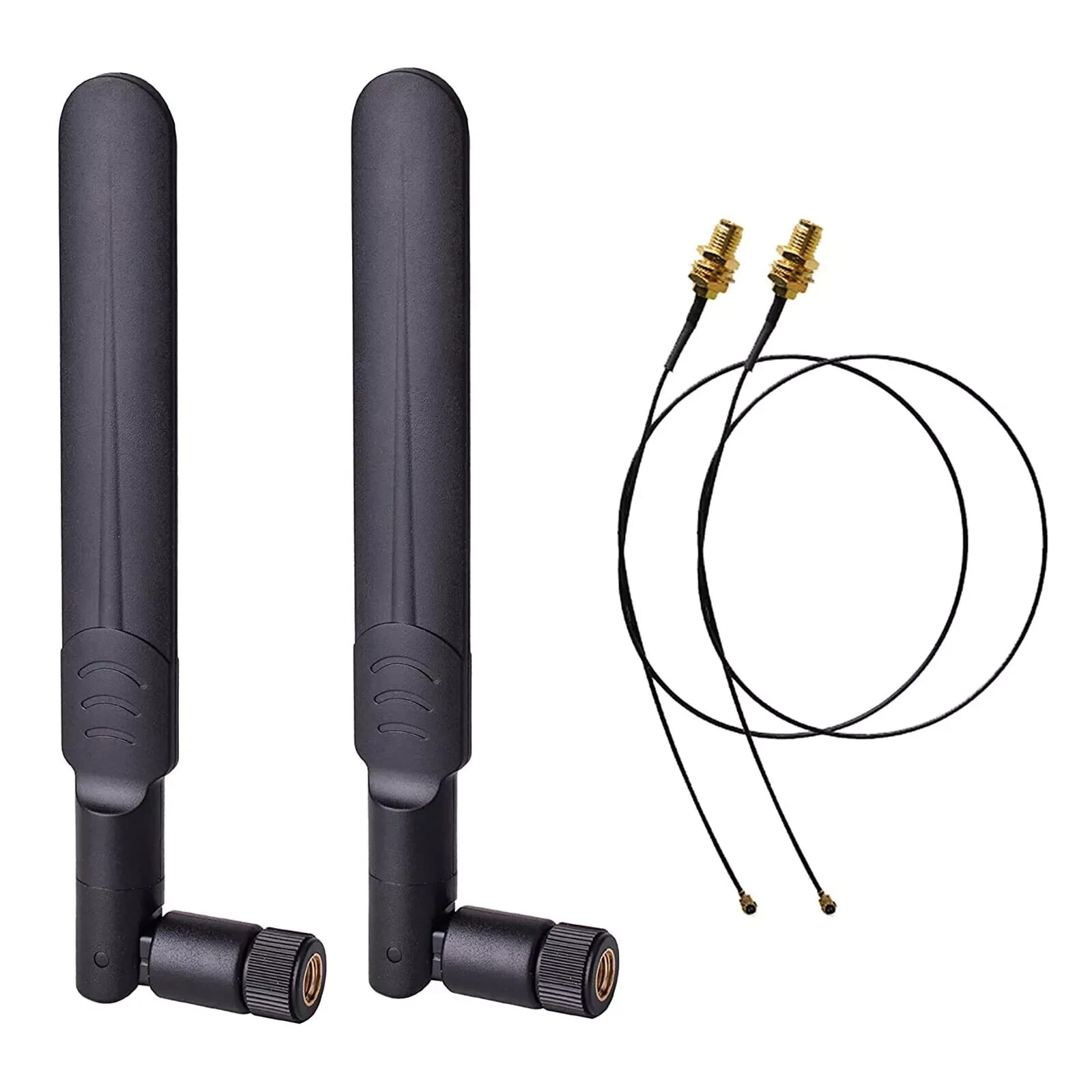

2 x 8dBi 2.4GHz 5GHz 5.8GHz Dual Band WiFi RP-SMA Male Antenna+2 x 35CM U.FL/...
Price: US $16.61
High gain- This dual band wifi antenna provides broad coverage to extend wireless range to dead spot and make the signal be better and longer range.
Compatible with- these omnidirectional antennas only use for MINI PCI-E Interface, Do Not Use for M.2 (NGFF) Interface.
Easy installation- no soldering, simply replace your current antenna.Specifications:
Antenna Specifications:
Color: Black
Radiation: Range(MHz): 2400-2500 & 5725-5850
Connector Type: RP-SMA Male (Hole)
Angle Adjustable: 90° 135° 180°
Dimension: 16cm/ 6.3”(Unbend) / 13.5cm/ 5.31”(Bend)
Wight: 13.5g / 0.48 oz per antenna
Input Impedance(Ω): 50
VSWR ≤ 1.5Pigtail Cable Specifications:
Color: Black & Gold
Length: 35cm / 14''
Wight:4.4g / 0.17 oz per pigtail cable
Connector Type: U.fl / IPEX (MHF2) to RP-SMA Female (Pin)
Note: IPEX have 5 type: MHF MHF2 MHF3 MHF4 MHF5, MHF2 can be compatible with MHF use on Mini PCIe Wireless Card.
