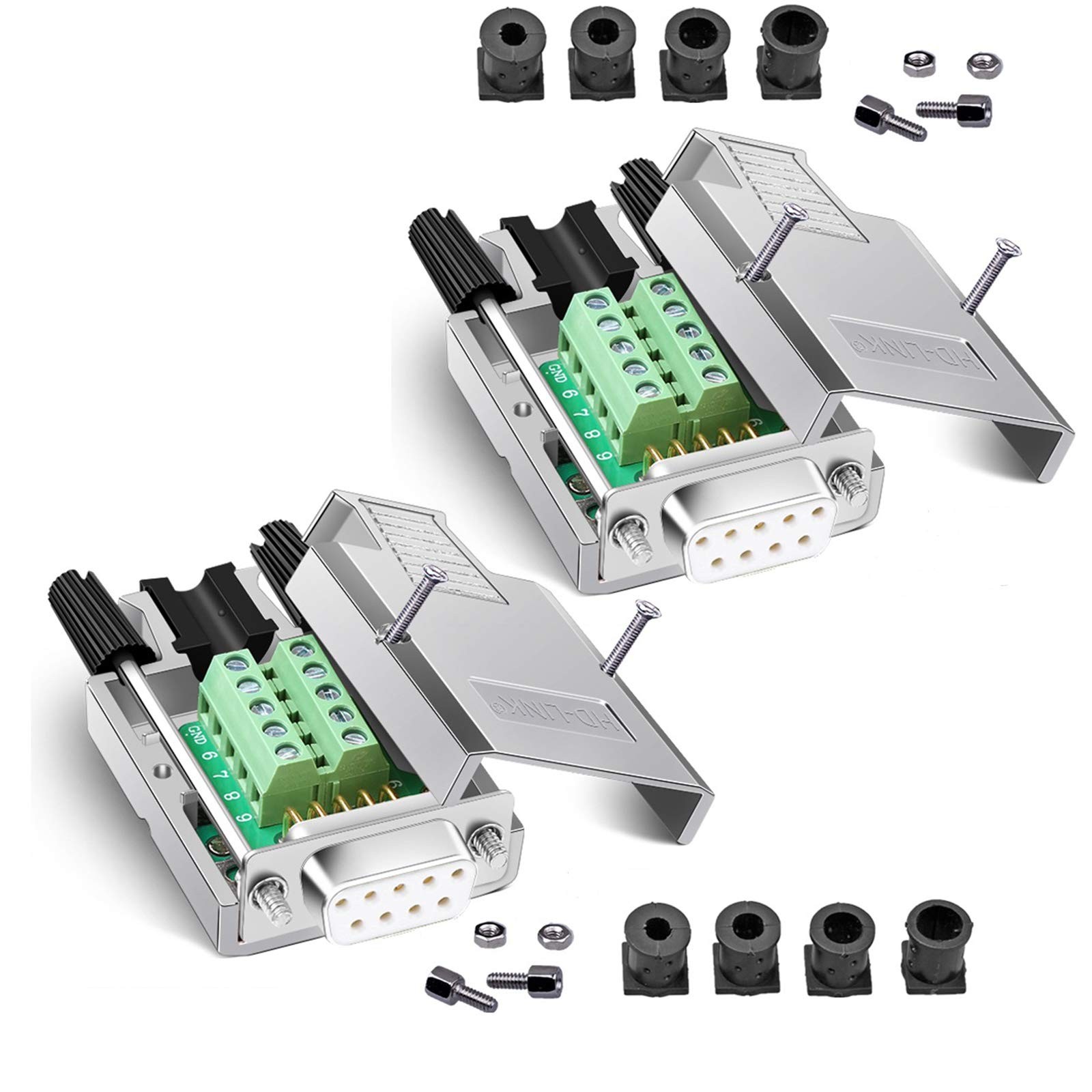

Product Listing Welcome to Our Store!2PCS DB9 Solderfree Serial to 9 pin Terminal Thin Female AdapterDescription
These DB9 Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:
Name: Thin DB9 solderless module
Plug type: female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Material: Copper
Housing material: Zinc alloy metal shell
Shell type: Screw lock
Pin Pitch: 3.81mm/0.15in
Cable Specification: 28-16 AWG/0.15-1.5mm2
Torque: 0.2Nm (1.7Lb-In.)
Opening size (cable port): 10.5mm/0.41″
Thickness: 16mm/0.63″
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 49 mm×35 mm×16 mm/ 1.93″×1.38″×0.63″
Package includes:
2 x DB9 Male Solderless Connectors
4x Lock screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5mm tail pipe
2x 8.5mm tail pipe
Features
- DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life. Zinc Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.
- No Soldering Required: Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
- SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
- RELIABLE: Each product is equipped with 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor .
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
