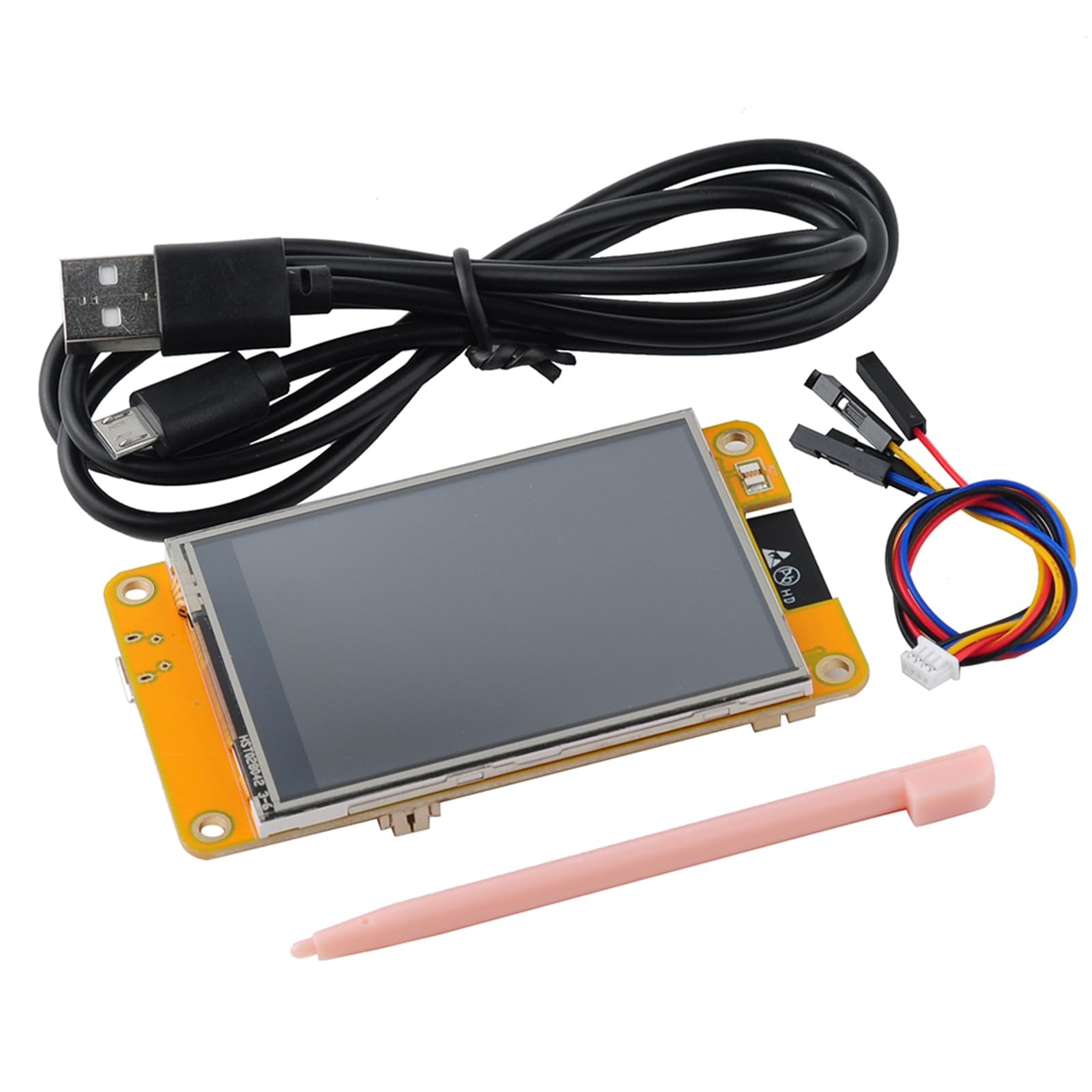

2.8 Inch ESP32 LCD Display Module ESP322432S028R WiFi+BT Dev Board Arduino
2.8'' ESP32 Module ESP32-2432S028R WIFI+BT Dual-core 240X320 Smart Display Screen LCD TFT Module ILI9341 Driver for Arduino IoT Specifications: Working voltage 4.75-5.25V SPI Flash default 32Mbit RAM internal 520KB Wi-Fi 802.11b/g/n/e/i Blue-tooth Blue-tooth 4.2BR/EDR and BLE standard Support interface (2Mbps) UART, SPI, I2C, PWM Support TF card, maximum support 4G IO port 9 Serial port rate default 115200bps Spectrum range 2400 ~2483.5MHz Antenna form Onboard PCB antenna, gain 2dBi Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE Packaging method DIP-16 Transmit power 802.11b: 17±2dBm (@11Mbps) 802.11g: 14±2dBm (@54Mbps) 802.11n: 13±2dBm (@MCS7) Receiving sensitivity CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Power consumption Turn off the flash: 180mA5V Turn on the flash and adjust the brightness to the maximum: 310mA5V Deep-sleep: The lowest power consumption can reach 6mA5V Modern-sleep: the lowest can reach 20mA5V Light-sleep: the lowest can reach 6.7mA5V Security WPA/WPA2/WPA2-Enterprise/WPS Working temperature -20 ℃~ 70 ℃ Storage environment -40 ℃~ 125 ℃,
