SpecificationELECTRICAL SPECIFICATIONS
Frequency Range2400-2483MHz / 5150-5850MHz
Band width83/700MHzGain5dBi / 7dBiV.S.W.R<1.5Input Impedance50ΩRadiationOmni-Direction
Maximum Power SPECIFICATIONSConnector TypeN maleNet Weight70gLength7.087 in (180mm)DiameterΦ .865 in (22mm)Radome ColorGrayAntenna Radome Material

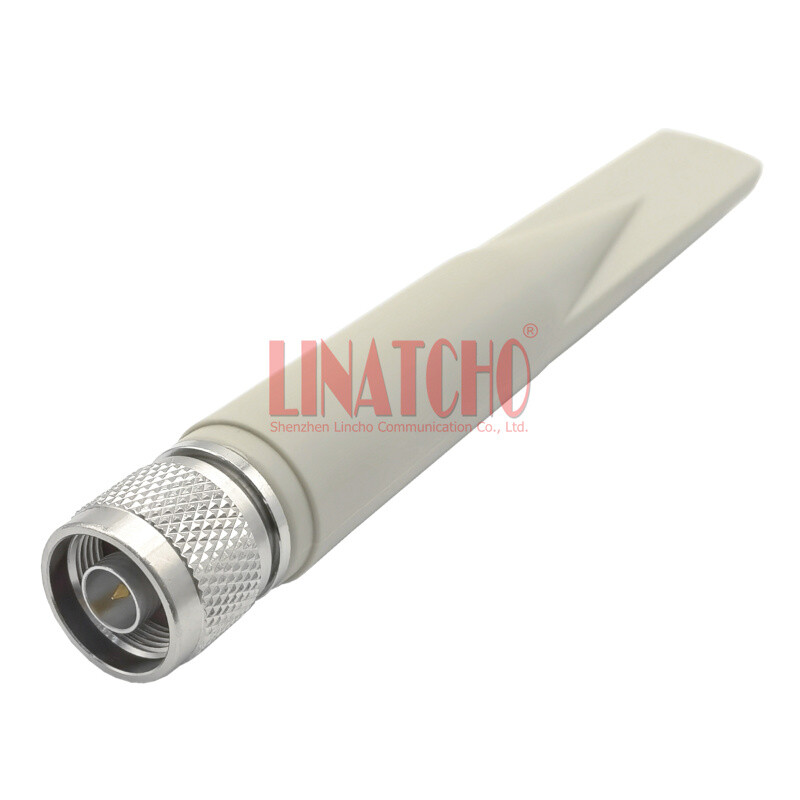

TPEOperating Temperature-40℃ to+70℃Products DescriptionAntenna is vertically polarized and has a N Male connector for easy mounting to an Access Point or PCB router enclosure.
The dual band outdoor waterproof antenna is well engineered to enhance the range of a 802.11a/b/g/n/ac WiFi device while supporting all standards, including the latest Wireless-AC.
Concurrent Wireless-AC Frequencies, 2.4GHz and 5GHz, offers Ultimate Flexibility and Maximum Perform.
Wireless-AC devices can connect to the popular 2.4GHz frequency for compatibility and range while simultaneously off-loading traffic to a faster, less-crowded 5GHz frequency for speed.
The antenna will accommodate a single 2.4GHz application, a single 5GHz application, or an application requiring both 2.4/5GHz.
Applications
• IEEE 802.11a/n/ac (5.150 – 5.850 GHz) Access Point / Router
• IEEE 802.11b/g/n/ac (2.4 – 2.485 GHz) Access Point / Router
• IEEE 802.11n/ac Access Point / Router
• 2.4 GHz or 5 GHz Wireless Video Surveillance
• Indoor or OutdoorDetails Images
