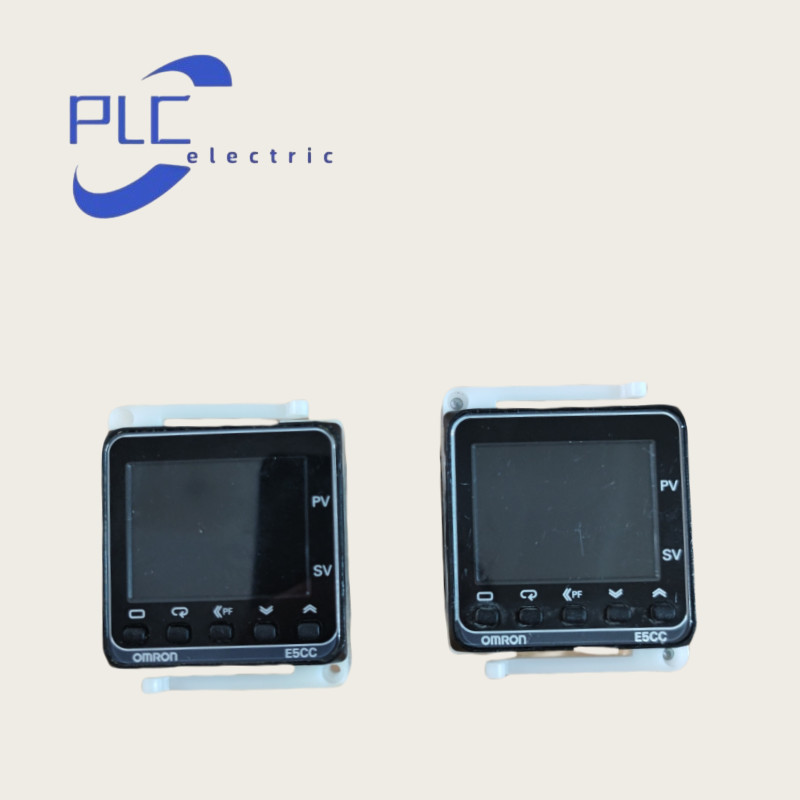

Direct Supply Omron E5CC-RX2ASM-802 Main parameters of the thermostat
1. Basic specifications
Model: E5CC-RX2ASM-802
Brand: OMRON
Control type: Temperature control
Installation mode: Panel installation
Dimensions: 96mm × 96.8mm
Display: 11-segment digital display, character height PV 15.2mm, SV 7.1mm
2. Electrical parameters
Power supply voltage:
AC100 ~ 240V (50/60Hz)
Operating voltage range: 85% ~ 110% of rated power supply voltage
Power consumption:
The maximum is 6.5VA for AC100 to 240V
Max. 4.1VA at AC24V and 2.3W at DC24V
Sensor input:
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W or PL II
Platinum resistance temperature measuring body: Pt100 or JPt100
Analog input: Current 4 ~ 20mA or 0 ~ 20mA, voltage 1 ~ 5V, 0 ~ 5V, 0 ~ 10V or 0 ~ 50mV (0 ~ 50mV can only be used by E5CC-U-800)
Input impedance:
Current input: less than 150Ω
Voltage input: more than 1MΩ
Output:
Relay output: SPST-NO, AC250V, 3A (resistive load), electrical life 100,000 operations
Voltage output (SSR driver) : DC12V±20%, maximum load current 21mA, with short circuit protection circuit
Linear current output: DC4 ~ 20mA or DC0 ~ 20mA, load less than 500Ω, resolution 10,000
Auxiliary output: SPST-NO relay output, AC250V, 3A (resistive load)
3. Control and function
Control mode: ON/OFF control or 2-DOF PID (with automatic tuning)
Control period: 50ms
Multiple SP capabilities: Up to eight set points (SP0 to SP7) can be saved and selected through event input, keystroke operation or serial communication
Alarm function: loop break alarm, SP tilt alarm, heater break (HB) alarm (including SSR fault (HS) alarm)
Other features: manual output, heating/cooling control, operation limit, input digital filter, self-adjustment, PV input deviation, run/stop, protection function, temperature status display, moving average processing of input values
4. Environmental conditions
Ambient temperature: -10 ~ 55℃ (no condensation or icing)
Ambient humidity: 25% ~ 85%
Storage temperature: -25 ~ 65℃ (no condensation or icing)
Height: Below 2,000m
Class II Overvoltage, Class 2 contamination (EN/IEC/UL 61010-1)
