Product Overview

This versatile adapter card is designed to convert next-generation SSD form factors to a standard 2.5-inch SATA interface, providing a convenient solution for data migration, system upgrades, or external drive enclosures. It features two distinct slots, each serving a specific purpose, with important operational limitations.

Key Features & Technical Specifications

• Dual Slot Functionality (Non-Simultaneous Use):

  • Slot 1:Designed for Mini PCI-E SSDs that adhere to themSATAinterface definition.

  • Slot 2:Designed forM.2 NGFFSSDs that utilize theSATA protocol.

  • ⚠️ Critical Note:These two slotscannot be used simultaneously. Plugging drives into both slots at once will result in only one drive being recognized by the system.

• Interface Definition Clarification:

  • Important Distinction:mSATA isnotequivalent to a 1.8-inch Mini SATA drive. Please ensure your drive is a true mSATA form factor.

Critical Compatibility Information (Please Read Before Purchase)

To ensure successful operation, it is imperative to verify the exact specifications of your SSD. This adapter supports only specific protocols, and visual inspection is insufficient for identification.

1. Mini PCI-E Slot (mSATA Definition Only)
Mini PCI-E SSDs share an identical physical connector but utilize three different pin definitions. This card isONLYcompatible with themSATA definition(often associated with Intel standards, commonly found in Lenovo/ThinkPad machines).

• Not Compatible With:

  • SATA Mini PCI-E:ASUS-defined interface (often found in ASUS EPC and some tablet PCs).

  • PATA (IDE) Interface:Dell-defined interface (e.g., Dell Mini 9).

2. M.2 NGFF Slot (SATA Protocol Only)
M.2 SSDs are governed by three primary protocols: SATA, NVMe PCIe x2, and NVMe PCIe x4. This adapter card isONLYcompatible with theSATA protocol.

• Not Compatible With:NVMe PCIe protocol drives (regardless of lane count).

Package Includes

• 1 x SATA Adapter Card

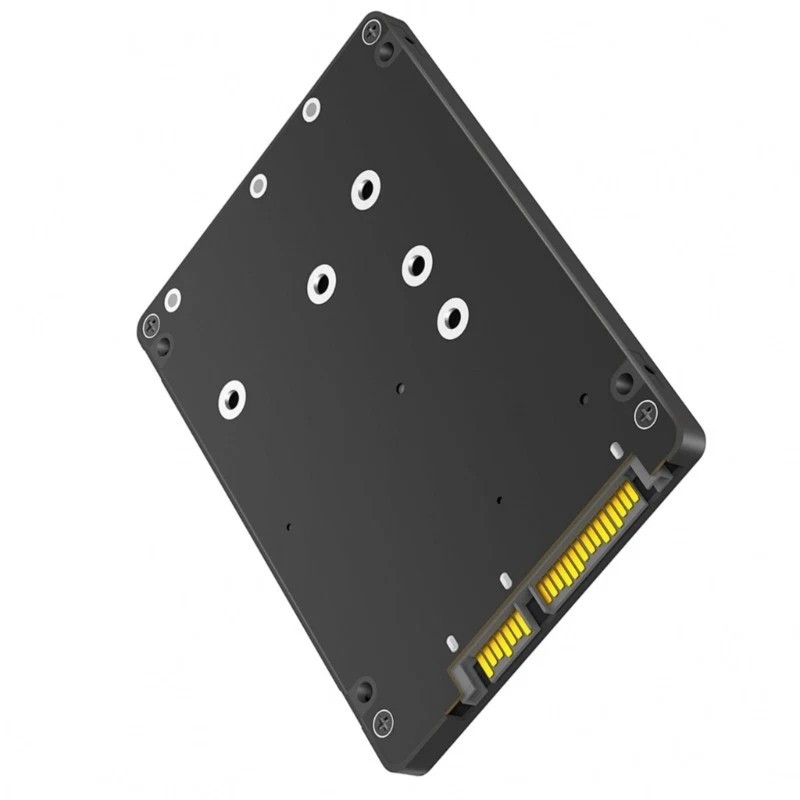

• 1 xSATA Adapter With Plastic Casing


Note:Only the adapter card is included in the package. SSDs and other accessories shown in images are for demonstration purposes only. Please ensure your drive matches the supportedmSATAorM.2 NGFF (SATA)specifications to avoid compatibility issues.
