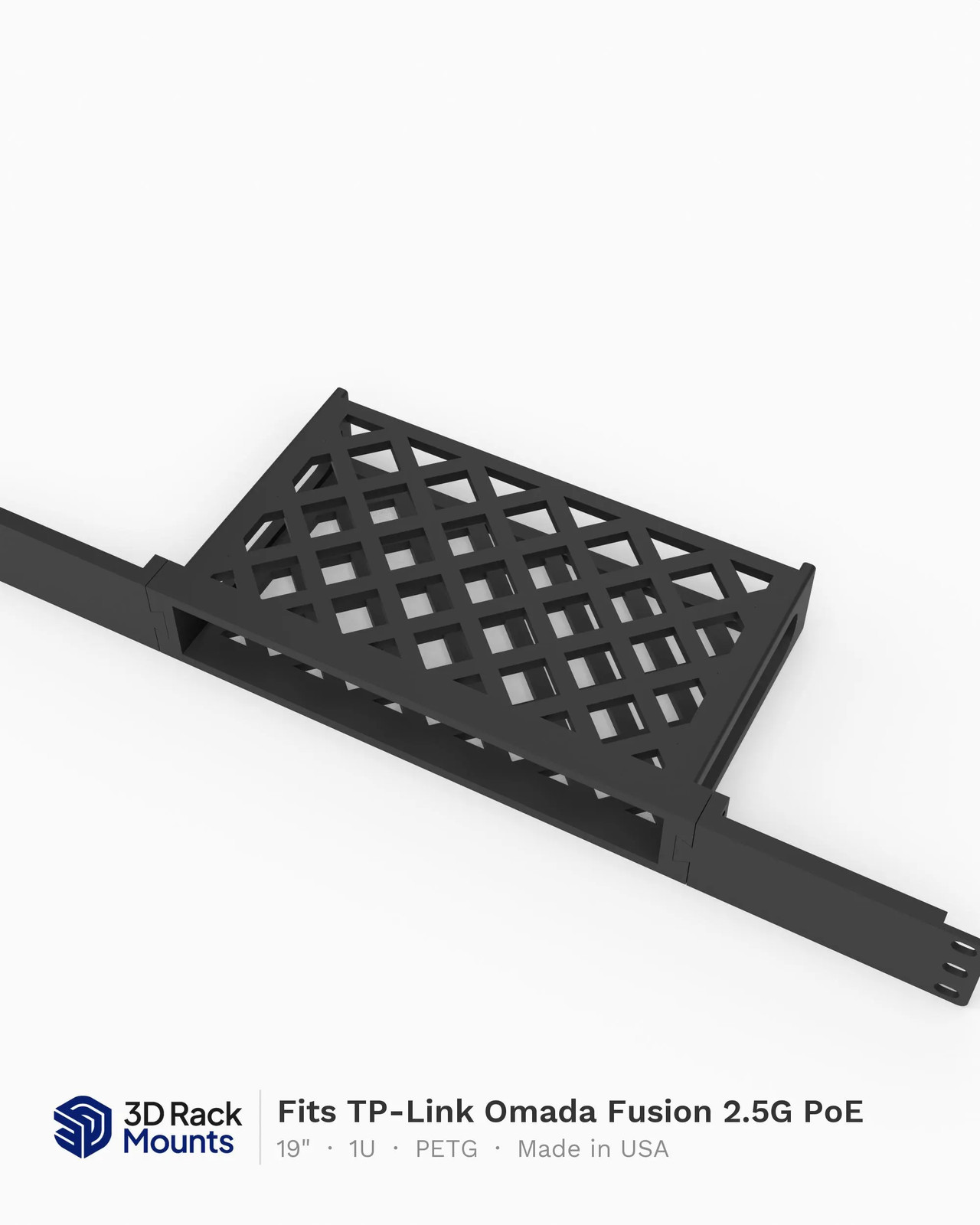

Fits the TP-Link Omada Fusion 2.5G PoE in a 19" rack at 1U, full width. The cavity is open front to back, so you pick the Omada Fusion 2.5G PoE

Both units share the same chassis, so one mount covers either.

DOES NOT FIT

• The standard Fusion 2.5G, Fusion Pro 2.5G and Fusion G+. Those are smaller chassis and have their own mounts in my shop. This one is for the PoE models forward: keeps the touchscreen visible for health scores, speed tests and alerts.
• Ports forward: puts the nine 2.5G jacks at the rack face.

Cabling runs out the opposite side either way.

WHAT YOU GET

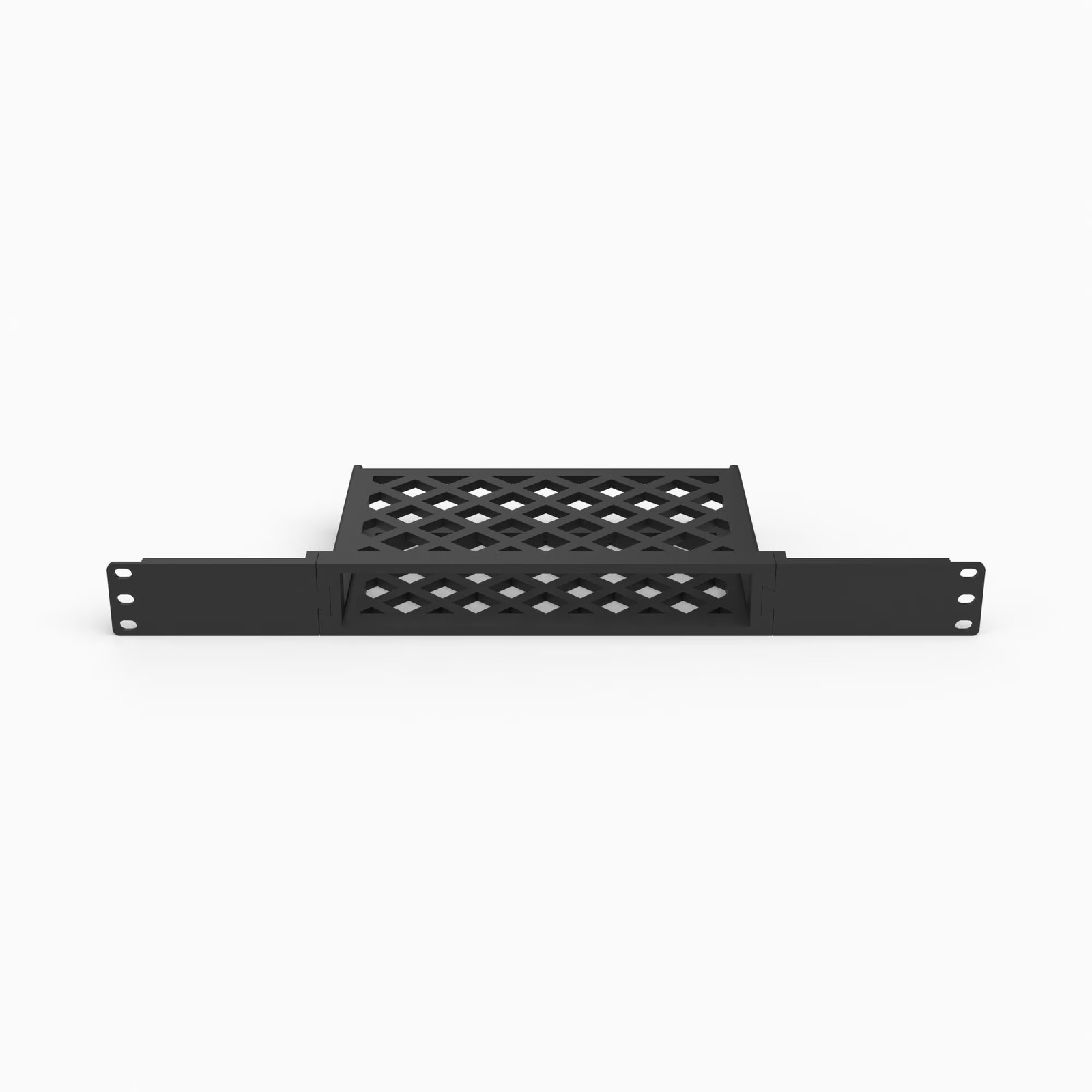

• The mount, in three parts: a centre tray with a rack ear on each side. They slide together on dovetail seams, so there is no assembly hardware to fit.
• Rack screws are not included. Use whatever your rack takes.

MODULAR

This one is not part of my Modular Series. The gateway is wider than a half-rack insert, so it takes the full row on its own.

MATERIAL

PETG, not PLA. A gateway pushing up to 110W of PoE runs warm inside a closed rack, and the open lattice on the top and bottom keeps air moving across the chassis.

💬 For any custom design requests please message me.
