- 01.upHere ARGB PWM fan hub - Supports up to 6 Fans （3PIN/PWM 4PIN/5V 3PIN ARGB）, and Supports up to additional 2 ARGB deviced. Occupying only One 4-pin M/B FAN Header (System Fan or CPU Fan)and One 12V 4-pin RGB Header.
- 02.upHere FH14-12V 5V to 12V RGB transfer hub,Motherboard with 12V 4-pin RGB Header can Contorl 5V ADD-RGB Products.*upHere FH14-12V fan hub not support motherboard 5V ADD-RGB header.
- 03.Capable of connecting to 6 PC fans simultaneously for cooling the computer system. Each port has its own PWM function and the fan speed can be adjustedat the same time. The Fan hub draw the PWM signal from motherboard and response fan speed to the motherboard and draw an ARGB signal from this cable (only the speed of Fan 1 can be identified by the system.)
- 04.Powered by system PSU Sata connection to ensure 12V stable power for up to 6 fans and additional 2 argb deviced.

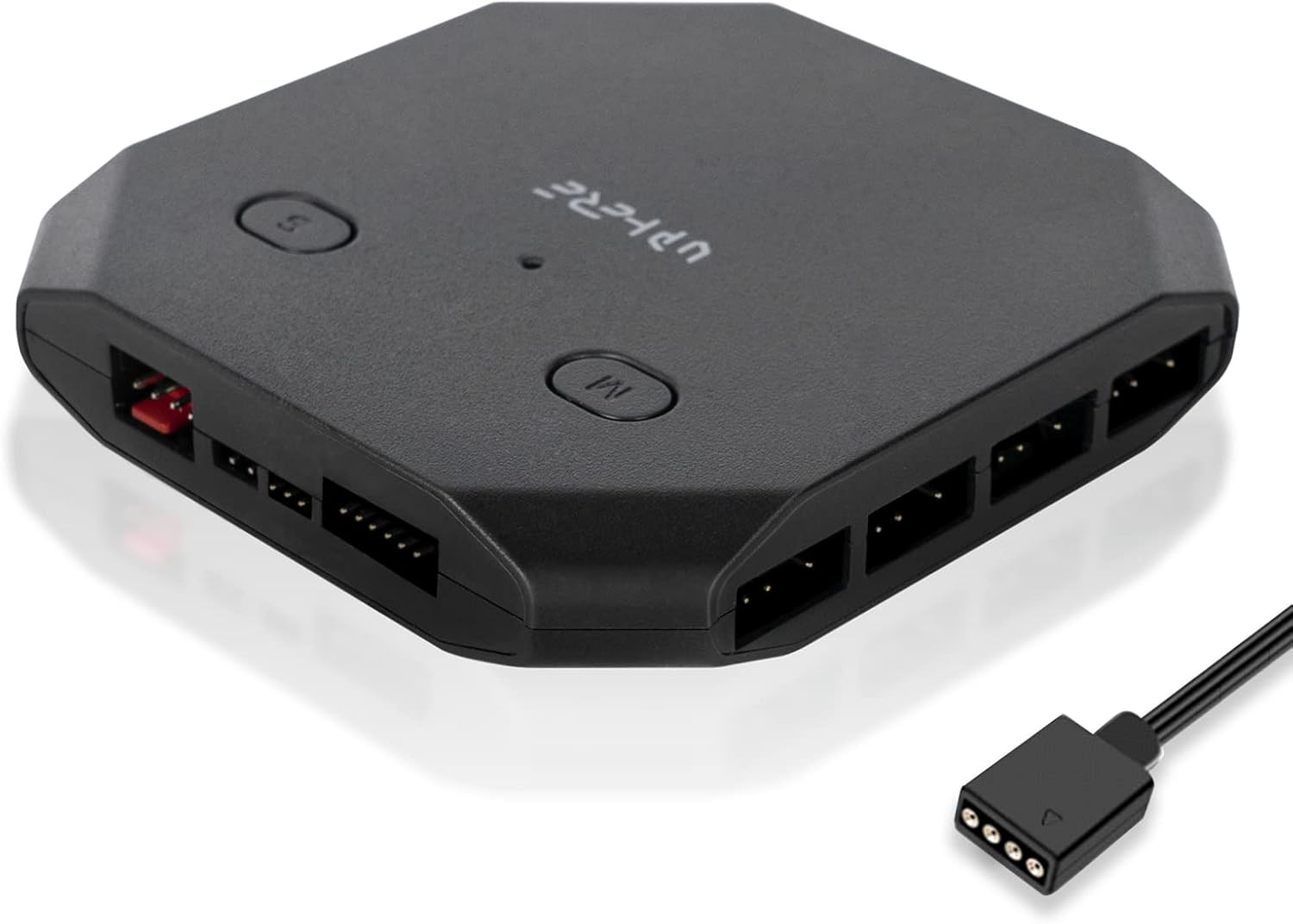

- 05.Easy and Quick Installation with a Compact Design, upHere FH14-12V Fan hub allows you to easily attach on the back of the PC case using pre-installed double-sided tape. Size: 86x86x15mm/3.4x3.4x0.6in,Weight: 56g
Product description Function Overview:
*Motherboard with 12V 4-pin Header can Control 5V ADD-RGB Products
*8 X 5V ARGB Interface
*6 X PWM 4PIN PWM Interface
*Supports up to 6 *ARGB case fans and additional 2 ARGB devices
*Built-in a variety of preset ARGB effects, easily switch the ARGB lighting effect and speed through the control hub button
*Powered by a stable SATA connection to the system PSU
*Easy and quick installation with a compact design, suitable for most PC cases
Technical Specifications: Output 8 x 5V 3-PIN ARGB+ 6 x PWM 4-PIN Input SATA/PWM 4PIN/12V RGB Compatible 5V ARGB SYNC Asus Aura, ASRock RGB, GIGABYTE and MSI RGB Size 86x86x15mm / 3.4x3.4x0.6in Weight 56 g / 0.11 lb Tips: 1.Speed control function is unavailable for 3 pin fans,attached 3 pin fans will run at maximum RPM. 2.only the fan 1 port can detecting fan speed. 3.Not support 12V 4-pin RGB header
